IlvTileLoader Class Reference

This abstract class is used to load a tile for an IlvTileController or an IlvTiledLayer. More...

#include <ilviews/maps/tiling/tileloader.h>

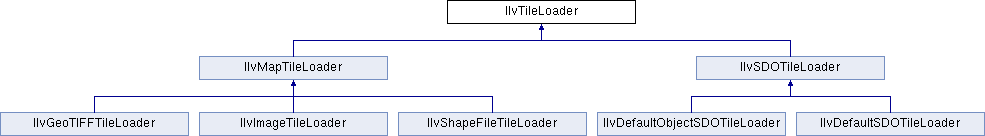

Inheritance diagram for IlvTileLoader:

Public Member Functions
virtual void	controllerDeleted (IlvTileController *controller)
	Called when the controller is deleted. More...
virtual IlBoolean	isPersistent () const =0
	Checks if the object must be saved by a tile controller. More...
virtual IlvMapsError	load (IlvTile *tile)=0
	Called when a tile has to be loaded. More...
virtual void	release (IlvTile *tile)=0
	Called when a tile has to be released. More...
virtual void	tileDeleted (IlvTile *tile)
	Called when a tile is deleted during the controller destruction. More...

Detailed Description

This abstract class is used to load a tile for an IlvTileController or an IlvTiledLayer.

Library: ilvmaps

The following example shows a tile loader that fills a tile with a generated list of graphic objects.

class MyTileLoader
    : public IlvTileLoader
{
public:
  MyTileLoader();

  IlvMapsError load(IlvTile* tile)
  {
    IlvRect bbox;
    tile->boundingBox(bbox);
    IlvPoint p(bbox.x(), bbox.y());
    for (IlInt i = 0; i < bbox.w(); i += 10) {
      for (IlInt j = 0; j < bbox.h(); j += 10) {
        IlvMarker* m = new IlvMarker(tile->getDisplay(), p);
        tile->addObject(m);
        p.translate(0, 10);
      }
      p.move(bbox.x() + i, bbox.y());
    }
    tile->loadComplete();
    return IlvMaps::NoError();
  }

  virtual void release(IlvTile* tile)
  {
    tile->deleteAll();
  }

  virtual void controllerDeleted(IlvTileController* controller)
  {
    delete this;
  }

  virtual IlBoolean isPersistent() const
  {
    return IlFalse;
  }

};

Member Function Documentation

controllerDeleted()

virtual void IlvTileLoader::controllerDeleted ( IlvTileController *  controller )

virtual

Called when the controller is deleted.

Parameters

controller

The tile controller that is being deleted.

isPersistent()

virtual IlBoolean IlvTileLoader::isPersistent ( ) const

pure virtual

Checks if the object must be saved by a tile controller.

Returns

IlTrue if the object must be saved, IlFalse otherwise.

Implemented in IlvMapTileLoader, IlvShapeFileTileLoader, IlvSDOTileLoader, IlvImageTileLoader, and IlvGeoTIFFTileLoader.

load()

virtual IlvMapsError IlvTileLoader::load ( IlvTile *  tile )

pure virtual

Called when a tile has to be loaded.

When the tile loader has finished its operation, it should call the function IlvTile::loadComplete to notify the tile listeners.

Parameters

tile	The tile to be loaded.

Implemented in IlvDefaultSDOTileLoader, IlvSDOTileLoader, IlvDefaultObjectSDOTileLoader, and IlvMapTileLoader.

release()

virtual void IlvTileLoader::release ( IlvTile *  tile )

pure virtual

Called when a tile has to be released.

Parameters

tile	The tile to be released.

Implemented in IlvSDOTileLoader, and IlvMapTileLoader.

tileDeleted()

virtual void IlvTileLoader::tileDeleted ( IlvTile *  tile )

virtual

Called when a tile is deleted during the controller destruction.

Parameters

tile	The tile that is deleted by a tile controller.
