Dialog class. More...

#include <ilviews/dataccess/gadgets/tblcombo.h>

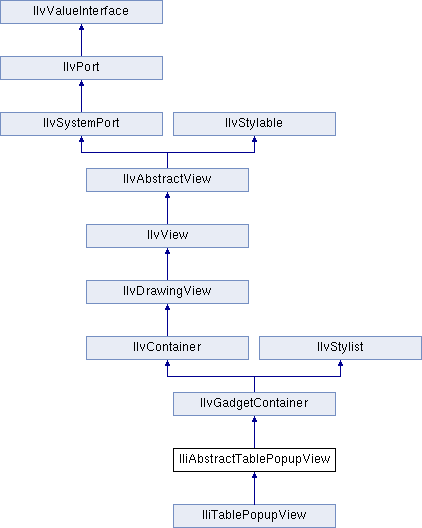

Inheritance diagram for IliAbstractTablePopupView:

Public Member Functions
	IliAbstractTablePopupView (IlvDisplay *display, IlvSystemView transient=0)
	This constructor initializes a dialog to replace the pull-down menu of the combo box. More...

virtual void	closeDone ()
	Called immediately after the dialog is closed.

IliTableComboBox *	getComboBox () const
	Returns the combo box associated with the dialog. More...

virtual IlvCursor *	getWindowCursor ()
	Returns the cursor of the dialog. More...

virtual IlvDim	getWindowHeight () const
	Returns the height of the dialog. More...

virtual IlvDim	getWindowWidth () const
	Returns the width of the dialog. More...

virtual void	handleInput (IlvEvent &event)
	Called to handle the input events. More...

IlBoolean	isGrabbed () const
	Returns `IlTrue` if a grab operation is defined. Otherwise, returns `IlFalse`. More...

IlBoolean	isOpen () const
	Returns `IlTrue` if the dialog is opened. Otherwise, returns `IlFalse`. More...

IlBoolean	isOpenOn (const IliTableComboBox *combo) const
	Returns `IlTrue` if the open combo box dialog is associated with the combo box. Otherwise, returns `IlFalse`. More...

IlBoolean	isWindowsLook () const
	Returns `IlTrue` if the current look is Windows 95 or Windows NT. Otherwise, returns `IlFalse`. More...

virtual void	makeTable ()
	Builds dialog gadgets.

virtual void	makeWindowResize (IlvDim w, IlvDim h)
	Called when the dialog must be resized. More...

virtual void	prepareOpen (IlInt *dispcol, IlInt count, IlInt rowno)
	Called just before the dialog is opened. More...

virtual void	processEvent (IlvEvent &event, const IlvRect &bbox)
	Called to handle events such as button, key up, and key down. More...

virtual IlBoolean	processInputEvent (IlvEvent &event)
	Called to handle the input events that are not handled by `handleInput()` function. More...

virtual void	select ()
	Called when a value has been selected.

virtual void	selectInitialRow (IlInt rowno)
	Called to select the data corresponding to the current row. More...

void	setComboBox (IliTableComboBox *combo)
	Associates the dialog with a combo box. More...

Detailed Description

Dialog class.

Library: dbgadget

This class is an abstract class that defines the dialog used by the combo box displaying the pull-down menu. To associate a combo box with a dialog, you should use the IliTableComboBox::setUserComboBoxWindow() member function.

See also: IliTableComboBox, IliTablePopupView.

Constructor & Destructor Documentation

◆ IliAbstractTablePopupView()

IliAbstractTablePopupView::IliAbstractTablePopupView	(	IlvDisplay *	display,
		IlvSystemView	transient = `0`
	)

This constructor initializes a dialog to replace the pull-down menu of the combo box.

Parameters

display	The display.
transient	A system view for which the gadget container is transient. For more details, see the IlvView constructors.

Member Function Documentation

◆ getComboBox()

IliTableComboBox* IliAbstractTablePopupView::getComboBox ( ) const

Returns the combo box associated with the dialog.

Returns: The combo box.

◆ getWindowCursor()

virtual IlvCursor* IliAbstractTablePopupView::getWindowCursor ( )

virtual

Returns the cursor of the dialog.

Returns: The cursor.

◆ getWindowHeight()

virtual IlvDim IliAbstractTablePopupView::getWindowHeight ( ) const

virtual

Returns the height of the dialog.

Dialog and combo box heights can differ.

Returns: The height.

Reimplemented in IliTablePopupView.

◆ getWindowWidth()

virtual IlvDim IliAbstractTablePopupView::getWindowWidth ( ) const

virtual

Returns the width of the dialog.

Dialog and combo box widths can differ.

Returns: The width.

Reimplemented in IliTablePopupView.

◆ handleInput()

virtual void IliAbstractTablePopupView::handleInput ( IlvEvent & event )

virtual

Called to handle the input events.

Parameters

event The event.

Reimplemented from IlvContainer.

◆ isGrabbed()

IlBoolean IliAbstractTablePopupView::isGrabbed ( ) const

Returns IlTrue if a grab operation is defined. Otherwise, returns IlFalse.

Returns: The grab flag.

◆ isOpen()

IlBoolean IliAbstractTablePopupView::isOpen ( ) const

Returns IlTrue if the dialog is opened. Otherwise, returns IlFalse.

Returns: The opening state.

◆ isOpenOn()

IlBoolean IliAbstractTablePopupView::isOpenOn ( const IliTableComboBox * combo ) const

Returns IlTrue if the open combo box dialog is associated with the combo box. Otherwise, returns IlFalse.

Parameters

combo The combo box.

Returns: The association state.

◆ isWindowsLook()

IlBoolean IliAbstractTablePopupView::isWindowsLook ( ) const

Returns IlTrue if the current look is Windows 95 or Windows NT. Otherwise, returns IlFalse.

Returns: The Windows look flag.

◆ makeWindowResize()

virtual void IliAbstractTablePopupView::makeWindowResize	(	IlvDim	w,
		IlvDim	h
	)

virtual

Called when the dialog must be resized.

Parameters

w	The new dialog width.
h	The new dialog height.

Reimplemented in IliTablePopupView.

◆ prepareOpen()

virtual void IliAbstractTablePopupView::prepareOpen	(	IlInt *	dispcol,
		IlInt	count,
		IlInt	rowno
	)

virtual

Called just before the dialog is opened.

Parameters

dispcol	The list of columns that must be displayed.
count	The number of columns to be displayed.
rowno	The current row position.

Reimplemented in IliTablePopupView.

◆ processEvent()

virtual void IliAbstractTablePopupView::processEvent	(	IlvEvent &	event,
		const IlvRect &	bbox
	)

virtual

Called to handle events such as button, key up, and key down.

Parameters

event	The event.
bbox	The event location.

Reimplemented in IliTablePopupView.

◆ processInputEvent()

virtual IlBoolean IliAbstractTablePopupView::processInputEvent ( IlvEvent & event )

virtual

Called to handle the input events that are not handled by handleInput() function.

Parameters

event The event. return IlTrue if the event is processed.

Reimplemented in IliTablePopupView.

◆ selectInitialRow()

virtual void IliAbstractTablePopupView::selectInitialRow ( IlInt rowno )

virtual

Called to select the data corresponding to the current row.

Parameters

rowno The row position.

Reimplemented in IliTablePopupView.

◆ setComboBox()

void IliAbstractTablePopupView::setComboBox ( IliTableComboBox * combo )

Associates the dialog with a combo box.

Parameters

combo The combo box.
