Gadget class. More...

#include <ilviews/gadgets/scombo.h>

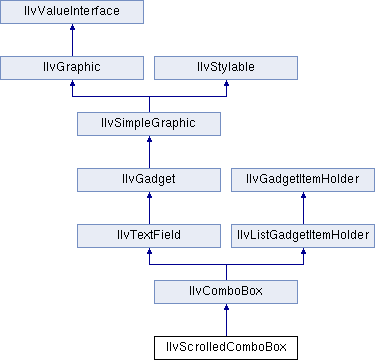

Inheritance diagram for IlvScrolledComboBox:

Public Member Functions
	IlvScrolledComboBox (IlvDisplay display, const IlvPoint &point, const char label, const char const labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...

	IlvScrolledComboBox (IlvDisplay display, const IlvRect &rect, const char label, const char const labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...

void	disableLargeList ()
	Disables the large list mode. More...

void	enableLargeList (IlvPosition pos=IlvLeft)
	Enables the large list mode. More...

IlvStringList *	getStringList () const
	Returns a pointer to the string list encapsulated by the scrolled combo box. More...

IlUShort	getVisibleItems () const
	Returns the number of visible items in the string list. More...

IlvPosition	hasLargeList () const
	Indicates whether the large list mode is used. More...

virtual void	hideList ()
	Hides the string list. More...

virtual IlBoolean	isListVisible () const
	Indicates whether the list of items of the combo box is visible. More...

void	setVisibleItems (IlUShort count)
	Sets the number of visible items in the string list. More...

virtual void	showList (IlBoolean grab=IlTrue)
	Displays the string list. More...

Public Member Functions inherited from IlvComboBox
	IlvComboBox (IlvDisplay display, const IlvPoint &point, const char label, const char const labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IlvComboBox` instance. More...

	IlvComboBox (IlvDisplay display, const IlvRect &rect, const char label, const char const labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IlvComboBox` instance. More...

virtual IlvGadgetItem *	createItem (const char , IlvGraphic =0, IlvBitmap =0, IlvBitmap =0, IlBoolean=IlTrue) const
	Returns a new gadget item. More...

virtual void	empty ()
	Empties the list. More...

virtual const IlvPalette *	getNormalTextPalette () const
	Returns the default palette used to draw an item. More...

virtual const IlvPalette *	getOpaquePalette () const
	Returns the opaque palette used to draw opaque items. More...

const char *	getSelection () const
	Returns the string displayed in the combo box. More...

IlvPopupMenu *	getSubMenu () const
	Returns a pointer to the pop-up menu attached to the combo box. More...

void	itemsBBox (IlvRect &labelRect, IlvRect &arrowRect, const IlvTransformer *t=0) const
	The bounding boxes of the main two components of the combo box. More...

virtual void	labelChanged ()
	Is called by the interactor whenever the label of the text field changes. More...

virtual void	setItems (IlvGadgetItem const , IlUShort)
	Replaces the entire list of items. More...

virtual void	setLabel (const char *, IlBoolean=IlFalse)
	Sets the label of the text field. More...

void	setSelected (IlUShort i, IlBoolean redraw=IlTrue)
	Sets the selected item in the combo box. More...

IlShort	whichSelected () const
	Returns the index of the selected item. More...

Public Member Functions inherited from IlvTextField
	IlvTextField (IlvDisplay display, const char label, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...

	IlvTextField (IlvDisplay display, const IlvPoint &point, const char label, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...

void	addChangeCallback (IlSymbol *callbackName)
	Adds a named Label Changed callback. More...

void	addChangeCallback (IlSymbol *callbackName, IlAny arg)
	Adds a named Label Changed callback. More...

void	addChangeCallback (IlvGraphicCallback callback)
	Adds a Label Changed callback. More...

void	addChangeCallback (IlvGraphicCallback callback, IlAny arg)
	Adds a Label Changed callback. More...

virtual const char *	check (IlUShort character)
	Is called by the interactor for each key down event that corresponds to a regular character. More...

void	ensureVisible (IlShort position, const IlvTransformer *t=0)
	Ensures that the character located at the specified position is visible. More...

IlvPosition	getAlignment () const
	Returns the alignment of the text field. More...

IlvGraphicCallback	getChangeCallback () const
	Returns a pointer to the first unnamed callback in the Label Changed callback list. More...

IlSymbol *	getChangeCallbackName () const
	Returns the name of the first named callback in the Label Changed callback list. More...

IlBoolean	getChangeFocusOnValidation () const
	Indicates whether the text field moves the keyboard focus to the next gadget once validated. More...

IlShort	getCursorPosition () const
	Returns the cursor position. More...

IlShort	getEndSelection () const
	Returns the index of the last selected character. More...

IlFloat	getFloatValue () const
	Converts the text field contents to a floating point value and returns the result of the conversion. More...

IlInt	getIntValue () const
	Converts the text field contents to an integer and returns the result of the conversion. More...

const char *	getLabel () const
	Returns the label displayed by the text field. More...

IlShort	getMaxChar () const
	Returns the maximum number of characters that the user can type in the text field. More...

virtual const char *	getMessage () const
	Returns the message displayed by this text field. More...

IlShort	getStartSelection () const
	Returns the index of the first selected character. More...

IlShort	getTextPosition () const
	Returns the index of the first visible character of the text field. More...

virtual IlBoolean	handleControl (IlUShort character)
	Is called by the interactor to handle control keys. More...

IlBoolean	isCursorShown () const
	Indicates whether the cursor is visible. More...

IlBoolean	isEditable () const
	Indicates whether the text field can be edited. More...

IlShort	pointToPosition (const IlvPoint &point, const IlvTransformer *t=0) const
	Returns the index of the character located at the specified point. More...

virtual void	removeSelection ()
	Removes the selected label from the text field. More...

void	setAlignment (IlvPosition alignment)
	Sets the alignment of the text field. More...

void	setChangeCallback (IlSymbol *callbackName)
	Sets a named Label Changed callback. More...

void	setChangeCallback (IlSymbol *callbackName, IlAny arg)
	Sets a named Label Changed callback. More...

void	setChangeCallback (IlvGraphicCallback callback)
	Sets a Label Changed callback. More...

void	setChangeCallback (IlvGraphicCallback callback, IlAny arg)
	Sets a Label Changed callback. More...

void	setChangeFocusOnValidation (IlBoolean value)
	Specifies whether the text field should move the keyboard focus to the next gadget once validated. More...

void	setCursorPosition (IlShort position)
	Sets the cursor position. More...

void	setEditable (IlBoolean value)
	Specifies whether the text field can be edited. More...

void	setEndSelection (IlShort position)
	Sets the index of the last selected character. More...

void	setMaxChar (IlShort count)
	Sets the maximum number of characters that the user can type in the text field. More...

void	setSelection (IlShort start, IlShort end)
	Selects a portion of the text field content. More...

void	setStartSelection (IlShort position)
	Sets the index of the first selected character. More...

void	setTextPosition (IlShort position)
	Sets the index of the first visible character of the text field. More...

void	setValue (IlFloat value, const char *format=0, IlBoolean redraw=IlFalse)
	Sets the text field label to a floating-point value. More...

void	setValue (IlInt value, IlBoolean redraw=IlFalse)
	Sets the text field label to an integer value. More...

void	showCursor (IlBoolean value, IlBoolean redraw=IlFalse)
	Specifies whether the cursor should be visible. More...

virtual void	validate ()
	Is called by the interactor when the user presses the Return or the Enter key. More...

Public Member Functions inherited from IlvListGadgetItemHolder
virtual void	addLabel (const char *label, IlAny data=0)
	Adds an item with a label to the holder list. More...

virtual IlvGadgetItem *	applyToItems (IlvApplyGadgetItem, IlAny)
	Applies the specified function to all the items of the holder. More...

virtual int	compareItems (const char string1, const char string2, IlAny value1, IlAny value2)
	Compares a pair of items. More...

virtual void	deSelectAll ()
	Deselects all the items. More...

IlUShort	getCardinal () const
	Returns the number of items stored in this holder. More...

IlShort	getFirstSelectedItem () const
	Returns the index of the first selected item. More...

IlShort	getIndex (const IlvGadgetItem *item, IlUShort start=0, IlUShort stop=(IlUShort) -1) const
	Returns the index of the specified item in the holder list. More...

IlvGadgetItem *	getItem (IlUShort index) const
	Returns an item from its position in the holder. More...

IlAny	getItemData (IlUShort index) const
	Returns an item user data. More...

IlvGadgetItem const	getItems (IlUShort &count) const
	Returns the array of all the items. More...

const char *	getLabel (IlUShort index) const
	Returns the indicated label of the list. More...

const char const	getLabels (IlUShort &count) const
	Returns an array of all the items labels. More...

IlShort	getPosition (const char *label, IlUShort start=0) const
	Returns the position of an item using its label. More...

IlUShort const *	getSelectionIndices (IlUShort &count) const
	Returns an array containing the indexes of the selected item. More...

const char const	getSelections (IlUShort &count) const
	Returns an array of the selected items. More...

IlAny const *	getUserDataArray (IlUShort &count) const
	Returns an array of all the user data for the items. More...

IlUShort	insertBitmap (IlvBitmap *bitmap, IlShort pos=-1)
	Inserts an item with a bitmap at the given position in the holder list. More...

IlUShort	insertGraphic (IlvGraphic *graphic, IlShort pos=-1)
	Inserts an item with a graphic as picture at a given position in the holder list. More...

IlUShort	insertItem (IlvGadgetItem *item, IlShort index=-1)
	Inserts an item at a given position in the holder's list. More...

virtual void	insertLabel (IlUShort pos, const char *label, IlAny data=0)
	Inserts an item with a label at a given position in the holder list. More...

IlBoolean	isSelected (IlUShort index) const
	Specifies whether the item whose position is specified is selected. More...

void	removeItem (IlUShort index, IlBoolean destroy=IlTrue)
	Removes an item from the holder. More...

void	removeLabel (IlUShort index)
	Removes and destroys an item. More...

void	setItemData (IlUShort index, IlAny itemData)
	Sets an item user data. More...

void	setLabel (IlUShort index, const char *label, IlBoolean copy)
	Modifies the label of an item. More...

virtual void	setLabels (const char const labels, IlAny const *itemData, IlUShort count, IlBoolean copy=IlTrue)
	Replaces the entire list of items. More...

virtual void	setLabels (const char const labels, IlUShort count, IlBoolean copy=IlTrue)
	Replaces the entire list of items. More...

virtual void	sort (IlvListCompareFunction func=0)
	Sorts the items. More...

Public Member Functions inherited from IlvGadgetItemHolder
virtual void	drawGadgetItem (const IlvGadgetItem item, IlvPort port, const IlvRect &rect, const IlvTransformer t=0, const IlvRegion clip=0) const
	Draws a specific gadget item. More...

IlvGadgetItem *	getCallbackItem () const
	Returns the item that triggered a callback. More...

IlvGadgetItem *	getDragDropTarget () const
	Returns the target item of a drag-and-drop operation. More...

IlvGraphic *	getDraggedImage () const
	Returns the graphic object used to draw the ghost image during a drag-and-drop operation. More...

IlvGadgetItem *	getDraggedItem () const
	Returns the item that is being dragged during a drag-and-drop operation. More...

IlvGadgetItem *	getEditedItem () const
	Returns the item that is being edited. More...

virtual const IlvPalette *	getHighlightTextPalette () const
	Returns the highlight palette used to draw the label of highlighted items. More...

virtual IlvGadgetItem *	getItemByName (const char *name) const
	Returns the item whose name is specified. More...

IlvGadgetItem *	getToolTipItem () const
	Returns the item that is displaying a tooltip. More...

virtual void	initReDrawItems ()
	Begins a redraw session. More...

virtual void	recomputeAllItems ()
	Recomputes the size of all the items managed by the holder. More...

virtual void	reDrawItems ()
	Ends a redraw session. More...

void	setDragDropTarget (IlvGadgetItem *item)
	Sets the target item of a drag-and-drop operation. More...

void	setDraggedImage (IlvGraphic *graphic)
	Sets the graphic object used to draw the ghost image during a drag-and-drop operation. More...

void	setDraggedItem (IlvGadgetItem *item)
	Sets the dragged item. More...

Friends
class	IlvDefaultScrolledComboBoxLFHandler

Additional Inherited Members
Static Public Member Functions inherited from IlvComboBox
static PopupMenuFactory *	GetPopupMenuFactory ()
	Returns the current popup menu factory. More...

static IlSymbol *	OpenListSymbol ()
	Returns the symbol of the Open List callback. More...

static PopupMenuFactory *	SetPopupMenuFactory (PopupMenuFactory *f)
	Sets the popup menu factory. More...

Static Public Member Functions inherited from IlvGadgetItemHolder
static IlSymbol *	AbortDragItemCallbackType ()
	Returns the callback type of the Abort Drag callback. More...

static IlSymbol *	AbortEditItemCallbackType ()
	Returns the callback type of the Abort Edit callback. More...

static IlSymbol *	ActivateCallbackType ()
	Returns the callback type of the Activate callback. More...

static IlSymbol *	DragItemCallbackType ()
	Returns the callback type of the Drag Item callback. More...

static IlSymbol *	EndDragItemCallbackType ()
	Returns the callback type of the End Drag callback. More...

static IlSymbol *	EndEditItemCallbackType ()
	Returns the callback type of the End Edit callback. More...

static IlSymbol *	StartDragItemCallbackType ()
	Returns the callback type of the Start Drag callback. More...

static IlSymbol *	StartEditItemCallbackType ()
	Returns the callback type of the Start Edit callback. More...

Protected Member Functions inherited from IlvGadgetItemHolder
virtual void	abortDragItem ()
	Is called when a drag-and-drop operation is aborted. More...

virtual void	abortEdit (IlvGadgetItem *item)
	Is called when the editing of the specified item is aborted. More...

virtual void	drawDraggedImage (const IlvPoint &point, const IlvTransformer *t)
	Is called to draw the ghost image during a drag-and-drop operation. More...

virtual void	endDragItem (const IlvPoint &point)
	Is called when a drag-and-drop operation is finished. More...

virtual void	endEdit (IlvGadgetItem *item)
	Is called after an item has been edited. More...

virtual void	itemActivated (IlvGadgetItem *item)
	Is called when an item is activated. More...

virtual void	itemDeSelected (IlvGadgetItem *item)
	Is called when an item is deselected. More...

virtual void	itemDragged (const IlvPoint &point)
	Is called each time the user moves the mouse during a drag-and-drop operation. More...

virtual void	itemHighlighted (IlvGadgetItem *item)
	Is called when an item is highlighted or unhighlighted. More...

virtual void	itemSelected (IlvGadgetItem *item)
	Is called when an item is selected. More...

virtual void	startDragItem (IlvGadgetItem *item)
	Is called when a drag-and-drop operation begins. More...

virtual void	startEdit (IlvGadgetItem *item)
	Is called when an item is edited. More...

Detailed Description

Gadget class.

Library: ilvadvgdt

This class is a subclass of IlvComboBox that combines a text field (IlvTextField class) with a scrollable string list. The user can enter a character string in the combo box text field, or click on the arrow that appears on the right side of the field to display a string list of the class IlvStringList providing a set of predefined choices.

Note: Because the submenu displayed by an IlvScrolledComboBox is an advanced scrollable string list rather than an IlvPopupMenu as in the superclass, the inherited IlvComboBox::getSubMenu() member function must not be called for the IlvScrolledComboBox class. It returns 0.

See also: IlvStringList

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvComboBox and adds the following ones:

Name	Type	Equivalent methods
`visibleItems`	UInt	`getVisibleItems()`, `setVisibleItems()`
`largeList`	Direction	`hasLargeList()`, `enableLargeList()`

Styling\nThis class supports the following CSS properties:

Graphic property	CSS property	Type
Background color	`background-color`	Color
Text color	`color`	Color

Constructor & Destructor Documentation

◆ IlvScrolledComboBox() [1/2]

IlvScrolledComboBox::IlvScrolledComboBox	(	IlvDisplay *	display,
		const IlvPoint &	point,
		const char *	label,
		const char const	labels = `0`,
		IlUShort	count = `0`,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Constructor.

Initializes a new instance of the class IlvScrolledComboBox.
The size of the combo box is computed from the label parameter. If you want to give the combo box a specific size, use the other constructor.

Parameters

display	The connection to the display.
point	The position of the combo box.
label	The label of the combo box.
labels	An array containing the predefined labels of the combo box.
count	The number of elements in the labels array.
thickness	The thickness of the combo box.
palette	The palette used by the combo box.

◆ IlvScrolledComboBox() [2/2]

IlvScrolledComboBox::IlvScrolledComboBox	(	IlvDisplay *	display,
		const IlvRect &	rect,
		const char *	label,
		const char const	labels = `0`,
		IlUShort	count = `0`,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Constructor.

Initializes a new instance of the IlvScrolledComboBox.

Parameters

display	The connection to the display.
rect	The size and position of the combo box.
label	The label of the combo box.
labels	An array containing the predefined labels of the combo box.
count	The number of elements in the labels array.
thickness	The thickness of the combo box.
palette	The palette used by the combo box.

Member Function Documentation

◆ disableLargeList()

void IlvScrolledComboBox::disableLargeList ( )

Disables the large list mode.

See also: enableLargeList(), hasLargeList().

◆ enableLargeList()

void IlvScrolledComboBox::enableLargeList ( IlvPosition pos = IlvLeft )

Enables the large list mode.

By default, the string list of the scrolled combo box has the same width as the text field. If the string list contains items that are wider than the text field, these may be hidden partially. When the large list mode is enabled, the string list is resized to accommodate the widest item.

Parameters

pos	The alignment of the string list. Valid values are: `IlvLeft` and `IlvRight`.

See also: disableLargeList(), hasLargeList().

◆ getStringList()

IlvStringList* IlvScrolledComboBox::getStringList ( ) const

Returns a pointer to the string list encapsulated by the scrolled combo box.

Returns: A pointer to the string list used in the scrolled combo box.

See also: IlvComboBox::getSubMenu().

◆ getVisibleItems()

IlUShort IlvScrolledComboBox::getVisibleItems ( ) const

Returns the number of visible items in the string list.

Returns: The number of visible items in the string list.

See also: setVisibleItems().

◆ hasLargeList()

IlvPosition IlvScrolledComboBox::hasLargeList ( ) const

Indicates whether the large list mode is used.

Returns: The position where the string list is displayed, or IlvBadPosition if the combo box does not use the large list mode.

See also: enableLargeList(), disableLargeList().

◆ hideList()

virtual void IlvScrolledComboBox::hideList ( )

virtual

Hides the string list.

See also: showList().

◆ isListVisible()

virtual IlBoolean IlvScrolledComboBox::isListVisible ( ) const

virtual

Indicates whether the list of items of the combo box is visible.

Returns: IlTrue if the list of items of the combo box is visible and IlFalse if it is not.

See also: showList, hideList

Reimplemented from IlvComboBox.

◆ setVisibleItems()

void IlvScrolledComboBox::setVisibleItems ( IlUShort count )

Sets the number of visible items in the string list.

Parameters

count The new number of visible items in the string list.

See also: getVisibleItems().

◆ showList()

virtual void IlvScrolledComboBox::showList ( IlBoolean grab = IlTrue )

virtual

Displays the string list.

Parameters

grab	A Boolean value specifying whether the events occurring in the view where the string list is displayed should be grabbed.

See also: hideList().

Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Styling\nThis class supports the following CSS properties:

Constructor & Destructor Documentation

◆ IlvScrolledComboBox() [1/2]

◆ IlvScrolledComboBox() [2/2]

Member Function Documentation

◆ disableLargeList()

◆ enableLargeList()

◆ getStringList()

◆ getVisibleItems()

◆ hasLargeList()

◆ hideList()

◆ isListVisible()

◆ setVisibleItems()

◆ showList()
