User Interfaces
The Gantt chart can display and edit data consistently by means of the Gantt chart manager and grapher views. These views are created inside the Gantt chart object and attached to a manager (two views for Gantt lines), and a grapher (four views for Gantt nodes and links).
Manager Views
The 2 manager views, which are on the left of the user interface, are created to display IlvGanttLine objects. They are indexed as follows:
*0  top
*1  bottom
Grids (IlvGanttLineGrid objects) can be displayed in the manager views.
Grapher Views
The 4 grapher views, which are on the right of the user interface, are created to display IlvGanttNode, IlvGanttSubNode, and IlvGanttLink objects. The grapher views are indexed as follows:
*0  topLeft
*1  topRight
*2  bottomLeft
*3  bottomRight
By default, the four grapher views are visible. In the example provided (Using the Gantt Chart Through Examples) one view is displayed while the other ones are hidden. The user can scroll these views by using the keyboard or mouse. Scrolling can be done step-by-step or page-by-page.
Grids can also be drawn in the grapher views.
Scales
Scales are associated with the grapher views, that is, there are two scales at the top of the views: topleft (index 0) and topright (index 1). In IlvGanttChart, the scales are IlvRectangularScale objects. Special interactors are installed on the scales and allow you to horizontally zoom the grapher views.
In IlvGanttChartForm, the built-in IlvRectangularScale scales are not used. Users can set customized scales to IlvGanttChartForm. The sample <ILVHOME>/samples/gantt/calendar shows a way of using time scales in IlvGanttChartForm.

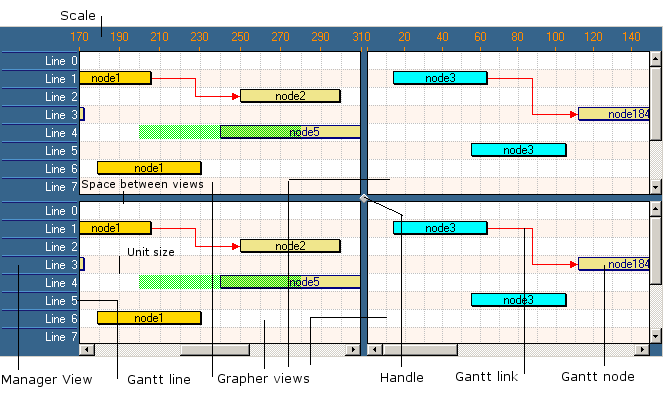

Description of the Gantt Chart Found in the Month Sample shows the main components of a Gantt chart:
Description of the Gantt Chart Found in the Month Sample
