The Menu Bar
When the Prototypes package is installed, additional commands are available through the menu bar in the Main window.

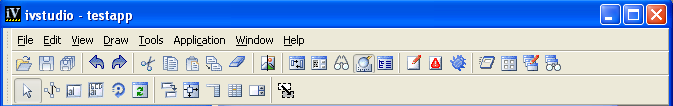

Figure 3.2    Rogue Wave Views Studio Prototypes Extension Menu Bar
The following tables summarize the additional commands that you can execute through the menu bar. For details on these commands, see Prototypes Extension Commands, where they are listed in alphabetical order.
File Menu Commands
Menu Item
Command
New > Prototype
NewPrototypeEditionBuffer
New > Prototype Library...
NewProtoLibrary
New > Prototype Grapher
NewPrototypeGrapherBuffer
Note: This is a deprecated command and is provided purely for compatibility with earlier versions.
Save Prototype Library as...
SaveProtoLibraryAs
Close Prototype Library
CloseProtoLibrary
Draw Menu Commands
Menu Item
Command
Group
GroupIntoGroup
Edit Prototype
EditPrototype
Delete Prototype
DeletePrototype
Tools Menu Command
Menu Item
Description
Group Inspector
This opens the Group Inspector of the currently selected prototype instance or IlvGroup object.
View Menu Command
Menu Item
Command
Toggle Animation Timers
ToggleTimers
The Action Toolbar
The Action toolbar remains unchanged from the Foundation package.
The Editing Modes Toolbar
The Prototypes extension of Rogue Wave Views Studio contains an editing mode in addition to the regular Rogue Wave Views Studio editing modes:
Group Connection Mode
Use the Group Connection mode for connecting the values of prototype instances. The Connection mode is used to define connections between prototype instances.See Connecting Prototype Instances.
