IlvPrintableComposite::RatioRelativePositionCoordinate Class Reference

This class is used to represent the concept of the end point of a segment with a percentage of the bounding box of an IlvPrintableComposite. The ratio is actually stored in hundredths of a percent. More...

#include <ilviews/printing/composite.h>

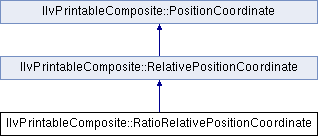

Inheritance diagram for IlvPrintableComposite::RatioRelativePositionCoordinate:

Public Member Functions
	RatioRelativePositionCoordinate (IlvPos position, IlBoolean isRelativeToFirst=IlTrue)
	The constructor. More...
virtual PositionCoordinate *	clone () const
	This function returns a new object allocated on the heap; this object is a copy of the current object. More...
Public Member Functions inherited from IlvPrintableComposite::RelativePositionCoordinate
	RelativePositionCoordinate (IlvPos position, IlBoolean isRelativeToFirst=IlTrue)
	The constructor. More...
	RelativePositionCoordinate (RelativePositionCoordinate const &other)
	The copy constructor. More...
IlvPos	getPosition () const
	Gets the value of the position. More...
IlBoolean	isRelativeToFirstReferencePosition () const
	Returns whether the position is relative to the first position of the reference. More...
RelativePositionCoordinate &	operator= (RelativePositionCoordinate const &other)
	The assignment operator. More...
void	setPosition (IlvPos newPosition)
	Sets the internal value of the position. More...
void	setRelativeToFirstReferencePosition (IlBoolean isRelativeToFirst)
	Sets whether the position is relative to the first position of the reference. More...
Public Member Functions inherited from IlvPrintableComposite::PositionCoordinate
	PositionCoordinate ()
	The constructor. More...

Detailed Description

This class is used to represent the concept of the end point of a segment with a percentage of the bounding box of an IlvPrintableComposite. The ratio is actually stored in hundredths of a percent.

Library: ilvprint

Constructor & Destructor Documentation

IlvPrintableComposite::RatioRelativePositionCoordinate::RatioRelativePositionCoordinate	(	IlvPos	position,
		IlBoolean	isRelativeToFirst = IlTrue
	)

The constructor.

Parameters

The	position (ratio to the reference segment).
isRelativeToFirst	Flag to specify whether the position is relative to the first or the last position of the reference segment.

Member Function Documentation

virtual PositionCoordinate* IlvPrintableComposite::RatioRelativePositionCoordinate::clone ( ) const

virtual

This function returns a new object allocated on the heap; this object is a copy of the current object.

Returns

A pointer to a new allocated object.

Implements IlvPrintableComposite::PositionCoordinate.
