IlsSortedUsesList< UserType, UsedType, Comparator > Class Template Reference

Sorted uses list. More...

#include <ilserver/model.h>

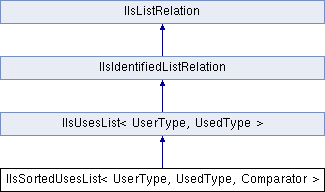

Inheritance diagram for IlsSortedUsesList< UserType, UsedType, Comparator >:

Public Types
typedef IlsSortedUsesList< UserType, UsedType, Comparator >	Myself
	Myself is the type of the instantiated template class.
Public Types inherited from IlsUsesList< UserType, UsedType >
typedef IlsListRelationConstIterator< Myself >	ConstIterator
	Const iterator.
typedef IlsSmartDoublyLinkedList< UsedTypeP, UsedTypeP, IlsBasicListKeyManager< UsedTypeP > >	Initial
	This type provides a list of used objects when the relation is created. More...
typedef IlsListRelationIterator< Myself >	Iterator
	Non const iterator.
typedef IlsUsesList< UserType, UsedType >	Myself
	Myself is the type of the instantiated template class.
typedef IlsPartial< UserType, UsedType, Myself >	Partial
	This class is an intermediate class that stores list items.
typedef IlsListRelationPosition< Myself >	Position
	The class Position sets a list iterator to a given position.

Public Member Functions
	IlsSortedUsesList (UserType &owner, IlsRelationId identifier=IlsDefaultRelationId, IlsActivity activity=IlsModel::GetDefaultActivity(), IlsCardinality mincard=0, IlsCardinality maxcard=ILS_UNLIMITED_MAXCARD, Initial &targets=(*new Initial()), IlsBoolean check_card=IlsTrue)
	Constructor. More...
Myself &	cons (CUsedTypePR)
	Adds an object to the list at the position specified by the function Compare(). More...
Myself &	operator<< (CUsedTypePR newe)
	Adds an element to the list at the position specified by the function Compare(). More...
Public Member Functions inherited from IlsUsesList< UserType, UsedType >
	IlsUsesList (UserType &user, IlsRelationId identifier=IlsDefaultRelationId, IlsActivity activity=IlsModel::GetDefaultActivity(), IlsCardinality mincard=0, IlsCardinality maxcard=ILS_UNLIMITED_MAXCARD, Initial &targets=(*new Initial()), IlsBoolean check_card=IlsTrue)
	Constructor. More...
virtual	~IlsUsesList ()
	This destructor breaks all relations in the list.
Myself &	clear ()
	Empties the list. More...
Myself &	cons (CUsedTypePR)
	Adds an object to the list. More...
virtual void	cut (Partial &)
	Is called when a cut is applied to the target of the relation.
IlsActivity	getActivity () const
	Returns ILS_ACTIVE if the relation has been set as active. Otherwise, it returns ILS_INACTIVE. More...
UsedType **	getAdded (int &)
	During a notification phase, this member function returns an array of pointers to the items that have been added to the list since the last notification phase. More...
CUsedTypePR	getFirst ()
	Returns the first item of the list. More...
virtual IlsViewed *	getIdentifiedElement (const IlsString &id) const
	This virtual member function is used to retrieve an identified object from the relation. More...
CUsedTypePR	getLast ()
	Returns the last item of the list. More...
UsedType **	getRemoved (int &)
	During a notification phase, this member function returns an array of pointers to the items that have been removed from the list since the last notification phase. More...
UserType &	getUser () const
	Returns a reference to the user object. More...
virtual IlsBoolean	hasElement (IlsViewed &) const
	This virtual member function returns IlsTrue if the element is a target of the relation or IlsFalse otherwise.
IlsBoolean	isIn (CUsedTypePR e)
	Returns IlsTrue if the object pointed to belongs to the list.
Myself &	operator<< (CUsedTypePR newe)
CUsedTypePR	operator[] (int i) const
	Returns the i-th list element.
Myself &	remove (CUsedTypePR olde)
	Removes an object from the list according to the specified cut instruction. More...
Myself &	remove (Partial &, IlsBoolean weak=IlsFalse)
	Removes the argument Partial from the list. More...
Public Member Functions inherited from IlsIdentifiedListRelation
IlsRelationId	getIdentifier () const
Public Member Functions inherited from IlsListRelation
unsigned int	getLength () const
	Returns the number of objects in the list.
IlsCardinality	getMaxCard () const
	Indicates the maximal cardinality of the list.
IlsCardinality	getMinCard () const
	Indicates the minimal cardinality of the list.
IlsBoolean	isLengthModified ()
	During a notification phase, this member function returns IlsTrue if the number of objects in the list has been modified since the last notification phase.
IlsBoolean	isModified ()
	During a notification phase, this member function returns IlsTrue if the list relation has been modified since the last notification phase, that is, if one or more items have been added to, or removed from, the list.

Additional Inherited Members
Static Public Member Functions inherited from IlsUsesList< UserType, UsedType >
static Initial &	NewInitial ()
	Builds an empty list which is used by the constructor as the default value of the argument targets.

Detailed Description

template<class UserType, class UsedType, class Comparator>
class IlsSortedUsesList< UserType, UsedType, Comparator >

Sorted uses list.

Template Parameters

UserType	Class that contains the relation.
UsedType	class of target objects of the relation.
Comparator	Comparison class.

Library: server

Relations of type IlsSortedUsesList are similar to relations of type IlsUsesList. The only difference is that sorted list-relations can be associated with a sort criterion that is used to automatically determine where a new object will be placed in a list.

The UserType and the UsedType must directly or transitively derive from IlsEntity or IlsObject. Derivation must be public.

The Comparator class contains only one static function with the following signature:

[static] IlsBoolean Compare(const UsedType&,const UsedType&);

New objects will be added to a list at the position specified by the function Compare().

If the function Comparator::Compare(O1, O2); returns IlsTrue, O1 is considered greater than O2 and thus placed after O2 in the list. If this function returns IlsFalse, then O1 is considered lower than O2 and thus inserted before O2 in the list.

A list is sorted in the ascending order defined by the Compare() function. To invert the sort order defined by a given Compare() function, you have to change the return value into the opposite value.

See also

IlsDerived, IlsEntity, IlsObject, IlsSortedOwnsList.

Constructor & Destructor Documentation

IlsSortedUsesList()

template<class UserType, class UsedType, class Comparator>

IlsSortedUsesList< UserType, UsedType, Comparator >::IlsSortedUsesList	(	UserType &	owner,
		IlsRelationId	identifier = IlsDefaultRelationId,
		IlsActivity	activity = IlsModel::GetDefaultActivity(),
		IlsCardinality	mincard = 0,
		IlsCardinality	maxcard = ILS_UNLIMITED_MAXCARD,
		Initial &	targets = (*new Initial()),
		IlsBoolean	check_card = IlsTrue
	)

Constructor.

Parameters

owner	A reference to the user object.
identifier	A relation identifier of type IlsRelationId. This argument defaults to IlsDefaultRelationId. It is generally used to invert relations.
activity	specifies whether the relation is active or not. A relation is active if its modification sets off the recomputation of derived data members. The default value is the one returned by the member function IlsModel::GetDefaultActivity(), which is ILS_INACTIVE by default.
mincard	The minimal cardinality of the list. This argument is optional and defaults to zero.
maxcard	The maximal cardinality of the list. This argument is optional and defaults to ILS_UNLIMITED_MAXCARD.
targets	a list of objects. Its creates an empty list when set to its default value.
check_card	specifies whether cardinalities should be checked at construction.

Member Function Documentation

cons()

template<class UserType, class UsedType, class Comparator>

Myself& IlsSortedUsesList< UserType, UsedType, Comparator >::cons

(

CUsedTypePR

)

Adds an object to the list at the position specified by the function Compare().

Exceptions

IlsMaxCardViolated	If the maximal cardinality has been reached.
IlsUnownedUse	If the specified object is neither an owned object nor an entity, and if the member function IlsModel::IsIntegrityChecked() returns IlsTrue.
IlsUpdateForbidden	If the function isUpdateAllowed() returns IlsFalse for the type in which the relation is declared.

operator<<()

template<class UserType, class UsedType, class Comparator>

Myself& IlsSortedUsesList< UserType, UsedType, Comparator >::operator<<

(

CUsedTypePR

newe

)

Adds an element to the list at the position specified by the function Compare().

Exceptions

IlsMaxCardViolated	If the maximal cardinality has been reached.
IlsUnownedUse	If the specified object is neither an owned object nor an entity, and if the member function IlsModel::IsIntegrityChecked() returns IlsTrue.
IlsUpdateForbidden	If the function isUpdateAllowed() returns IlsFalse for the type in which the relation is declared.
