IlsSortedInvertedRelationList< TargetType, OriginType, Comparator > Class Template Reference

Sorted inverted relation list. More...

#include <ilserver/model.h>

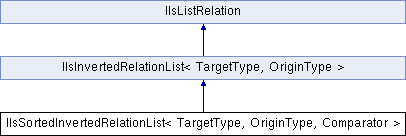

Inheritance diagram for IlsSortedInvertedRelationList< TargetType, OriginType, Comparator >:

Public Types
typedef IlsSortedInvertedRelationList< TargetType, OriginType, Comparator >	Myself
	Myself is the type of the instantiated template class.
Public Types inherited from IlsInvertedRelationList< TargetType, OriginType >
typedef Relations	Initial
	This class provides a list of origin objects when a relation is created. More...
typedef IlsInvertedRelationList< TargetType, OriginType >	Myself
	Myself is the type of the instantiated template class.

Public Member Functions
	IlsSortedInvertedRelationList (TargetType &target, IlsActivity activity=IlsModel::GetDefaultActivity(), IlsCardinality mincard=0, IlsCardinality maxcard=ILS_UNLIMITED_MAXCARD, Initial &targets=(*new Initial()), IlsBoolean check_card=IlsTrue)
	Constructor. More...
Myself &	cons (OriginType *)
	Adds an object to the list at the position specified by the function Compare(). More...
Myself &	operator<< (OriginType *newe)
	Adds an element to the list at the position specified by the function Compare(). More...
Public Member Functions inherited from IlsInvertedRelationList< TargetType, OriginType >
	IlsInvertedRelationList (TargetType &target, IlsActivity activity=IlsModel::GetDefaultActivity(), IlsCardinality mincard=0, IlsCardinality maxcard=ILS_UNLIMITED_MAXCARD, Initial &targets=(*new Initial()), IlsBoolean check_card=IlsTrue)
virtual IlsViewed *	getIdentifiedElement (const IlsString &id) const
	This virtual member function is used to retrieve an identified object from the relation. More...
virtual IlsBoolean	hasElement (IlsViewed &) const
	This virtual member function returns IlsTrue if the element is a target of the relation or IlsFalse otherwise.
TargetType &	getTarget () const
	Returns the target of the relation.
OriginType *	operator[] (int i) const
	Returns the i-th list element.
OriginType *	getFirst () const
	Returns the first item of the list. More...
OriginType *	getLast () const
	Returns the last item of the list. More...
IlsBoolean	isIn (OriginType *e)
	Returns IlsTrue if the specified item belongs to the list.
Myself &	cons (OriginType *newe)
	Adds the specified object to the list. More...
Myself &	operator<< (OriginType *newe)
	This insertion operator adds an object to the list. More...
Myself &	remove (OriginType *olde)
	Removes the specified object from the list. More...
Myself &	operator>> (OriginType *olde)
	This extraction operator removes an object from the list. More...
Myself &	clear ()
	Empties the list. More...
OriginType **	getAdded (int &)
	During a notification phase, this member function returns an array of pointers to the objects that have been added to the list since the last notification phase. More...
OriginType **	getRemoved (int &)
	During a notification phase, this member function returns an array of pointers to the objects that have been removed from the list since the last notification phase. More...
Public Member Functions inherited from IlsListRelation
unsigned int	getLength () const
	Returns the number of objects in the list.
IlsCardinality	getMaxCard () const
	Indicates the maximal cardinality of the list.
IlsCardinality	getMinCard () const
	Indicates the minimal cardinality of the list.
IlsBoolean	isLengthModified ()
	During a notification phase, this member function returns IlsTrue if the number of objects in the list has been modified since the last notification phase.
IlsBoolean	isModified ()
	During a notification phase, this member function returns IlsTrue if the list relation has been modified since the last notification phase, that is, if one or more items have been added to, or removed from, the list.

Additional Inherited Members
Static Public Member Functions inherited from IlsInvertedRelationList< TargetType, OriginType >
static Initial &	NewInitial ()
	Builds an empty list which is used by the constructor as the default value of the argument origins.

Detailed Description

template<class TargetType, class OriginType, class Comparator>
class IlsSortedInvertedRelationList< TargetType, OriginType, Comparator >

Sorted inverted relation list.

Template Parameters

TargetType	Target class of the direct relation.
OriginType	Class that contains the direct relation.
Comparator	Comparison class.

Library: server

Relations of type IlsSortedInvertedRelationList are similar to relations of type IlsInvertedRelationList. The only difference is that sorted list-relations are associated with a sort criterion that is used to automatically determine where a new object will be placed in a list.

The TargetType and the OriginType must derive publicly and directly or transitively from IlsEntity or IlsObject. Derivation must be public.

The Comparator class contains only one static function with the following signature:

static IlsBoolean Compare(OriginType&, OriginType&);

New objects will be added to a list at the position specified by the function Compare().

If the function Comparator::Compare(O1, O2); returns IlsTrue, O1 is considered greater than O2 and thus placed after O2 in the list. If this function returns IlsFalse, then O1 is considered lower than O2 and thus inserted before O2 in the list.

A list is sorted in the ascending order defined by the Compare() function. To invert the sort order defined by a given Compare() function, you have to change the return value into the opposite value.

Related Pattern

Bridge

See also

IlsDerived, IlsEntity, IlsObject, IlsSortedOwnsList, IlsSortedUsesList.

Constructor & Destructor Documentation

IlsSortedInvertedRelationList()

template<class TargetType, class OriginType, class Comparator>

IlsSortedInvertedRelationList< TargetType, OriginType, Comparator >::IlsSortedInvertedRelationList	(	TargetType &	target,
		IlsActivity	activity = IlsModel::GetDefaultActivity(),
		IlsCardinality	mincard = 0,
		IlsCardinality	maxcard = ILS_UNLIMITED_MAXCARD,
		Initial &	targets = (*new Initial()),
		IlsBoolean	check_card = IlsTrue
	)

Constructor.

Parameters

target	A reference to the target object.
activity	specifies whether the relation is active or not. A relation is active if its modification sets off the recomputation of derived data members. The default value is the one returned by the function IlsModel::GetDefaultActivity(), which is ILS_INACTIVE by default.
mincard	The minimal cardinality of the list. This argument is optional and defaults to zero.
maxcard	The maximal cardinality of the list. This argument is optional and defaults to ILS_UNLIMITED_MAXCARD.
targets	A list of objects. It creates an empty list when set to its default value.
check_card	Specifies whether cardinalities should be checked at construction.

Member Function Documentation

cons()

template<class TargetType, class OriginType, class Comparator>

Myself& IlsSortedInvertedRelationList< TargetType, OriginType, Comparator >::cons

(

OriginType *

)

Adds an object to the list at the position specified by the function Compare().

Exceptions

IlsMaxCardViolated	If the maximal cardinality has been reached.
IlsUpdateForbidden	If the function isUpdateAllowed() returns IlsFalse for the type in which the relation is declared.

operator<<()

template<class TargetType, class OriginType, class Comparator>

Myself& IlsSortedInvertedRelationList< TargetType, OriginType, Comparator >::operator<<

(

OriginType *

newe

)

Adds an element to the list at the position specified by the function Compare().

Exceptions

IlsMaxCardViolated	If the maximal cardinality has been reached.
IlsUpdateForbidden	If the function isUpdateAllowed() returns IlsFalse for the type in which the relation is declared.
