Package ilog.views.graphlayout.link

The Link Layout algorithm reshapes the links of a graph without moving the nodes.

See: Description

Class Summary

Class	Description
IlvLinkLayout	The main class for the Link Layout algorithm.

Package ilog.views.graphlayout.link Description

The Link Layout algorithm reshapes the links of a graph without moving the nodes. It has two modes:

• The short link mode calculates link shapes with a limited number of bends. This is suitable if the nodes are positioned so that most of the links are short. Links can be placed freely in this mode.
• The long link mode calculates link routes on a grid. It avoids overlaps with nodes even if many bends are needed. This is more suitable if the links can be very long.

By default, the algorithm computes orthogonal links; that is, links composed of alternating horizontal and vertical segments. Optionally, direct links can be computed. Both link styles can be mixed in the same drawing.

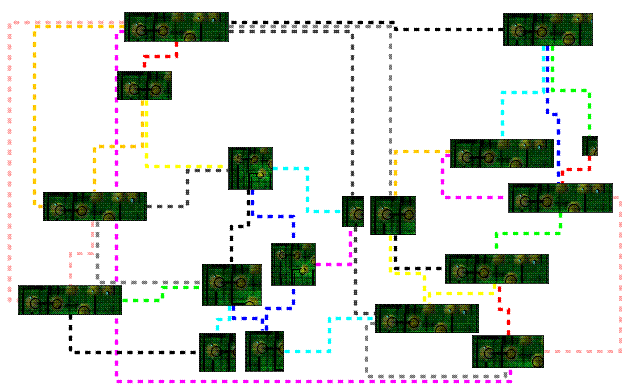

Sample drawing produced by the Link Layout in short link mode:

Click on the image to see it in normal size.

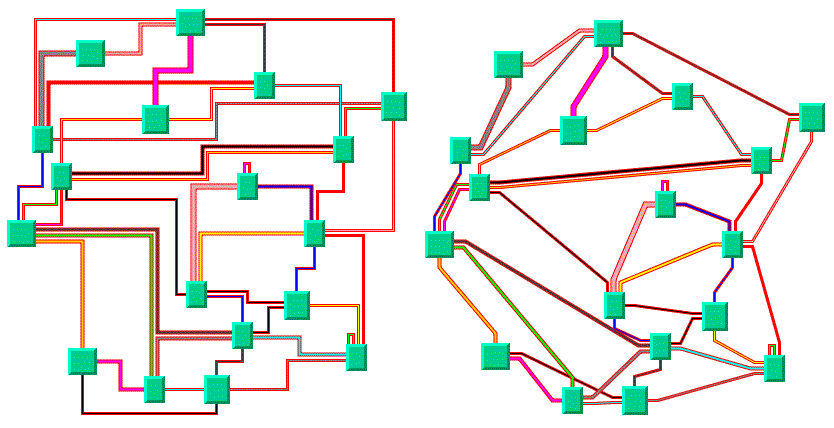

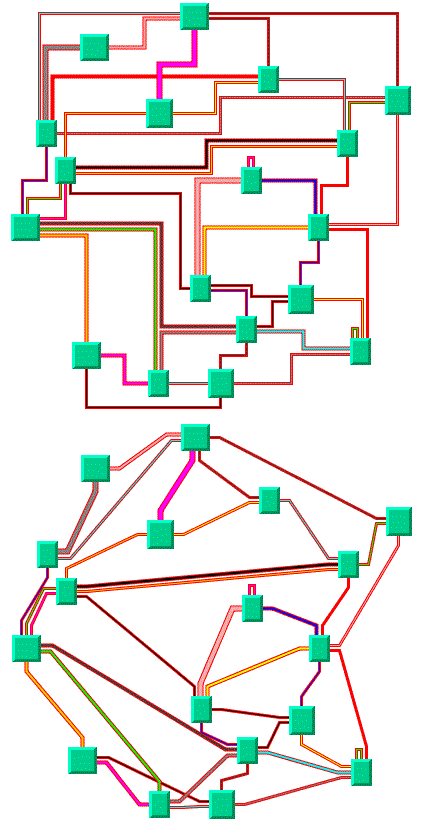

The short link mode works very well with thick links as produced by Java 2D:

Click on the image to see it in normal size.

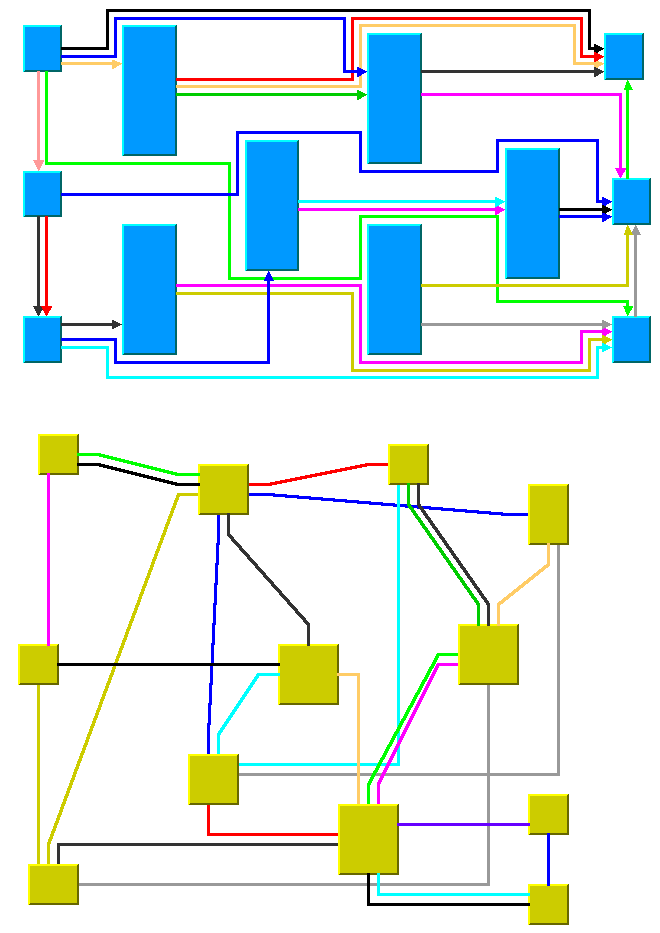

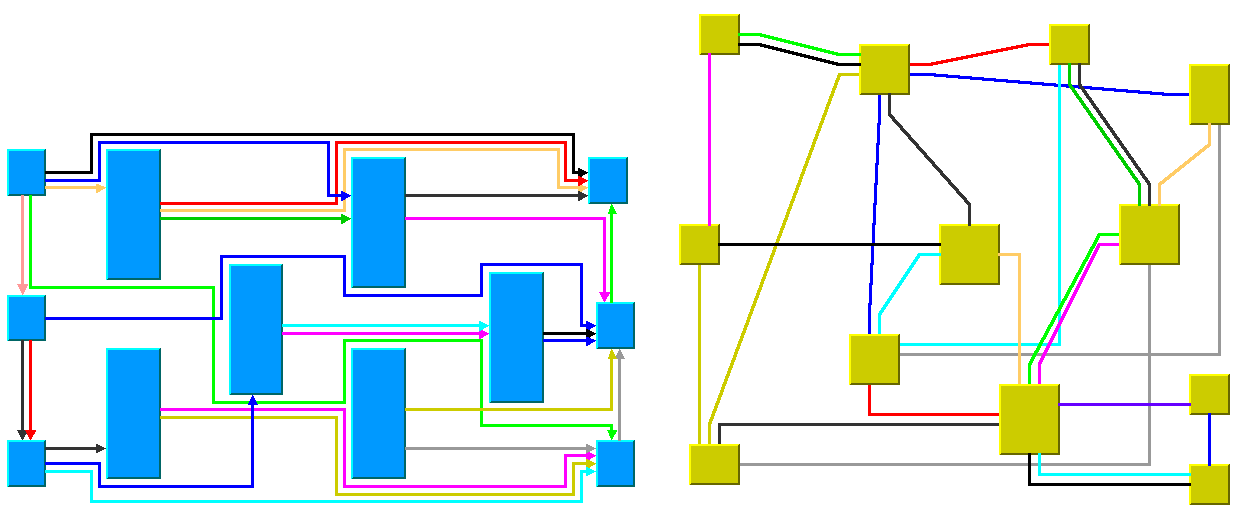

Sample drawing produced by the Link Layout in long link mode:

Click on the image to see it in normal size.

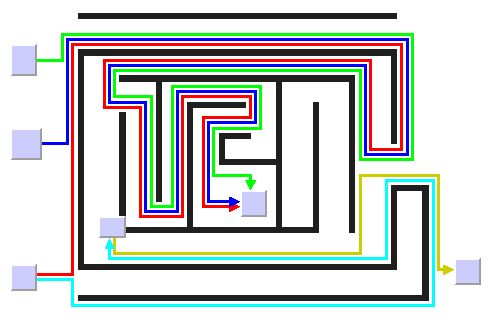

The long link mode can find a route through a labyrinth:

Click on the image to see it in normal size.

Since:

JViews 3.5

See Also:

ilog.views.graphlayout
