ilog.views.chart.renderer

Class IlvAreaChartRenderer

java.lang.Object

ilog.views.chart.IlvChartRenderer

ilog.views.chart.renderer.IlvCompositeChartRenderer

ilog.views.chart.renderer.IlvSimpleCompositeChartRenderer

ilog.views.chart.renderer.IlvPolylineChartRenderer

ilog.views.chart.renderer.IlvAreaChartRenderer

public class IlvAreaChartRenderer
extends IlvPolylineChartRenderer

A renderer displaying areas. This renderer creates an instance of IlvSingleAreaRenderer for every data set in the connected data source.

Note: This renderer does not work in 3-D mode in the STACKED mode. This is a limitation.

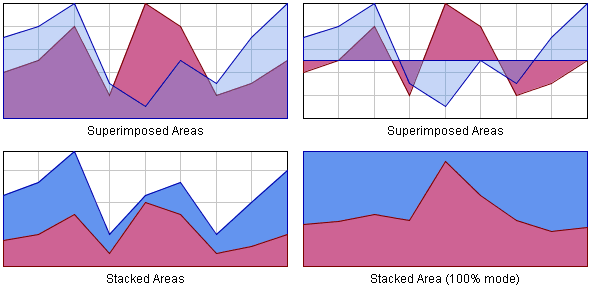

The following figure illustrates the representation modes available for an area renderer:

CSS example:

ilvAreaChartRenderer {
class : "ilog.views.chart.renderer.IlvAreaChartRenderer";
annotation : "@#ilvDataLabelAnnotation";
autoTransparency : "false";
createChild : "@#ilvChartRenderer";
marker : "CIRCLE";
markerSize : "2";
mode : "SUPERIMPOSED";
name : "<value>";
stacked100Percent : "false";
stackedByIndex : "false";
styles[0] : "@#ilvStyle1";
styles[1] : "@#ilvStyle2";
visible : "false";
visibleInLegend : "false";
YAxisIdx : "2";
}

Property Summary

Properties

Modifier and Type	Property and Description
IlvDataAnnotation	annotation Specifies a global annotation for all the data sets displayed by this renderer.
boolean	autoTransparency Sets whether this renderer should use transparent default colors.
java.lang.String	class Creates a new area chart renderer.
IlvChartRenderer	createChild Creates an instance of IlvSingleAreaRenderer to display the specified data set.
ilog.views.chart.graphic.IlvMarker	marker Specifies a marker for the child polyline renderers.
int	markerSize Specifies a marker size for the child polyline renderers.
int	mode Sets the mode of this renderer.
java.lang.String	name Sets the name of this renderer.
boolean	stacked100Percent Specifies whether the stacking is scaled to 100.
boolean	stackedByIndex Specifies whether the stacking is based on data set indices rather than on X values.
IlvStyle[]	styles Sets the styles used by the child renderers.
boolean	visible Toggles the visibility of this renderer.
boolean	visibleInLegend Indicates whether the renderer appears in the legend.
int	YAxisIdx Connects the specified renderer to the specified ordinate axis.

The default value of this property is true, which means that the renderer will automatically create and add items to the legend.

CSS example: visibleInLegend : "false";

YAxisIdx

public int YAxisIdx

Connects the specified renderer to the specified ordinate axis.

CSS example: YAxisIdx : "2";
