Class Summary Class Description IlvGridLayout The main class for the Grid Layout algorithm.
Package ilog.views.graphlayout.grid Description
The Grid Layout arranges the nodes either in the cells of a matrix (grid), or by rows or columns.
The algorithm is primary designed for graphs without (visible) links between the nodes. If links exist, they are ignored by the Grid layout.
Several layout modes, alignment options and dimensional parameters are provided.

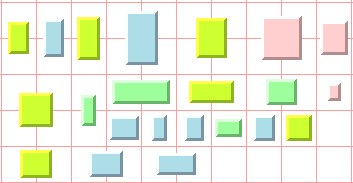

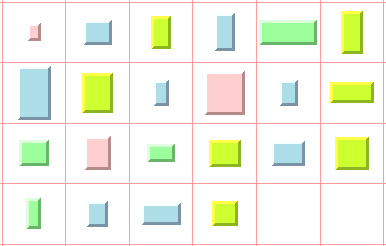

Sample drawings produced with the Grid layout:
- Since:
- JViews 3.5
- See Also:
ilog.views.graphlayout.grid
