ilog.views.maps.projection

Class IlvRobinsonProjection

java.lang.Object

ilog.views.maps.projection.IlvProjection

ilog.views.maps.projection.IlvRobinsonProjection

All Implemented Interfaces:

IlvPersistentObject, Serializable

public class IlvRobinsonProjection
extends IlvProjection

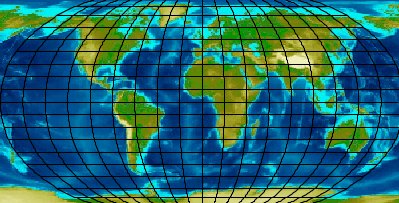

This class defines the Robinson projection. This projection is a pseudocylindrical projection.

This projection only supports spherical ellipsoids and implements an inverse function.

Since:

JViews 5.0

See Also:

Serialized Form

Field Summary

Fields inherited from class ilog.views.maps.projection.IlvProjection

CONFORMAL, EQUAL_AREA, NONE

Constructor Summary

Constructors

Constructor and Description
IlvRobinsonProjection() Creates an instance of the class IlvRobinsonProjection.
IlvRobinsonProjection(IlvInputStream stream) Reads the object from an IlvInputStream.
IlvRobinsonProjection(IlvRobinsonProjection source) Creates a new IlvRobinsonProjection.

Method Summary

Modifier and Type	Method and Description
IlvProjection	copy() Copies the projection.
void	setEllipsoid(IlvEllipsoid ellipsoid) Sets the ellipsoid used for the projection ellipsoid.
protected void	sForward(IlvCoordinate ll) Implements the projection for a sphere.
protected void	sInverse(IlvCoordinate xy) Implements the inverse projection for a sphere.
String	toString() Converts the projection to a string with Evenden's format.
void	write(IlvOutputStream stream) Writes the object to an IlvOutputStream.

Methods inherited from class ilog.views.maps.projection.IlvProjection

addDescription, adjustLongitude, eForward, eInverse, equals, forward, forward, getCentralMeridian, getCentralParallel, getDatum, getEllipsoid, getFalseEasting, getFalseNorthing, GetProjection, getProperty, getUnit, getXYOffset, inverse, inverse, inverse, isEllipsoidEnabled, isGeocentric, isInverseEnabled, isUsingLongitudeReduction, setCentralMeridian, setCentralParallel, setDatum, setFalseEasting, setFalseNorthing, setGeocentric, setLLCenter, setUnit, setUsingLongitudeReduction, setXYOffset

Methods inherited from class java.lang.Object

clone, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Constructor Detail

IlvRobinsonProjection

public IlvRobinsonProjection()

Creates an instance of the class IlvRobinsonProjection.

IlvRobinsonProjection

public IlvRobinsonProjection(IlvInputStream stream)
                      throws IlvReadFileException

Reads the object from an IlvInputStream.

Parameters:

stream - The input stream.

Throws:

IlvReadFileException - If the format is not correct.

IlvRobinsonProjection

public IlvRobinsonProjection(IlvRobinsonProjection source)

Creates a new IlvRobinsonProjection. by copying an existing one.

Parameters:

source - The graphic object that is copied.

Method Detail

copy

public IlvProjection copy()

Copies the projection.

Specified by:

copy in class IlvProjection

Returns:

A copy of the projection.

sForward

protected void sForward(IlvCoordinate ll)

Implements the projection for a sphere.

Specified by:

sForward in class IlvProjection

Parameters:

ll - The longitude/latitude coordinates in radians (x = longitude, y = latitude).

sInverse

protected void sInverse(IlvCoordinate xy)
                 throws IlvToleranceConditionException

Implements the inverse projection for a sphere.

Overrides:

sInverse in class IlvProjection

Parameters:

xy - The Cartesian coordinates.

Throws:

IlvToleranceConditionException - If the values are not within the tolerated limits.

See Also:

IlvProjection.inverse(ilog.views.IlvPoint), IlvProjection.isInverseEnabled()

setEllipsoid

public void setEllipsoid(IlvEllipsoid ellipsoid)

Sets the ellipsoid used for the projection ellipsoid. This function also updates the projection parameters for the given ellipsoid.

Overrides:

setEllipsoid in class IlvProjection

Parameters:

ellipsoid - The ellipsoid.

See Also:

IlvEllipsoid

write

public void write(IlvOutputStream stream)
           throws IOException

Writes the object to an IlvOutputStream.

Specified by:

write in interface IlvPersistentObject

Overrides:

write in class IlvProjection

Parameters:

stream - The output stream.

Throws:

IOException - thrown when an exception occurs during the write operation for this object.

toString

public String toString()

Converts the projection to a string with Evenden's format.

Overrides:

toString in class Object
