java.lang.Object
- ilog.views.IlvGraphic
- - ilog.views.IlvLinkImage
  - - ilog.views.graphic.IlvPolylineLinkImage
    - - ilog.views.graphic.composite.IlvCompositeLink

All Implemented Interfaces:: IlvComposite, IlvGraphicBag, IlvLabelInterface, IlvPolyPointsInterface, IlvPersistentObject, IlvBlinkingObject, IlvBaseTextDirectionInterface, Transferable, Serializable

Direct Known Subclasses:: IlvMapCompositeLink, IlvSDMCompositeLink

public class IlvCompositeLink
extends IlvPolylineLinkImage
implements IlvGraphicBag, IlvComposite

IlvCompositeLink represents a link between two nodes that can be decorated with IlvGraphic instances. This class uses an IlvLinkImage instance variable for link rendering. For more information about specialized link graphic objects, see IlvLinkImage.

If the IlvCompositeLink has a rendering link (see getLink()), all rendering values such as color, line width, end cap and line join are controlled by the rendering link.

Example

The following code example shows how to use an IlvCompositeLink in a simple Java application:

   IlvGrapher grapher = new IlvGrapher();
   IlvRectangle origin = new IlvReliefRectangle(new IlvRect(10, 10, 40, 40));
   origin.setBackground(Color.lightGray);
   IlvRectangle dest = new IlvReliefRectangle(new IlvRect(250, 120, 40, 40));
   dest.setBackground(Color.lightGray);
   grapher.addNode(origin, false);
   grapher.addNode(dest, false);

   // Creates the link responsible for the rendering
   IlvLinkImage link = new IlvDoubleLinkImage(origin, dest, false);
   IlvCompositeLink clink = new IlvCompositeLink(origin, dest, false);
   clink.setLink(link);
   clink.setLineWidth(5);
   clink.setForeground(Color.decode("#40BFBD"));
   grapher.addLink(clink, true);
   // Creates a plinth rectangle with a label
   IlvCompositeGraphic plinth = new IlvCompositeGraphic();
   plinth.setLayout(new IlvCenteredLayout(new Insets(4, 10, 4, 10)));

   IlvRectangle rect = new IlvReliefRectangle(new IlvRect(0, 0, 40, 40));
   rect.setBackground(Color.red);
   plinth.setChildren(0, rect);
   IlvZoomableLabel name = new IlvZoomableLabel(new IlvPoint(), "Paris", false);
   plinth.setChildren(1, name);

   //Adds the plinth to the link
   clink.setChildren(0, plinth);
   clink.setConstraints(0,
           new IlvAttachmentConstraint(
                   IlvAttachmentLocation.CenterPostOrderFirst,
                   IlvLinkAttachmentLocation.MiddleLink));

   //Creates a stack of small rectangles
   IlvCompositeGraphic stacker = new IlvCompositeGraphic();
   stacker.setLayout(new IlvStackerLayout());

   // Creates a tiny blue rectangle
   IlvRectangle r1 = new IlvRectangle(new IlvRect(0, 0, 10, 10));
   r1.setBackground(Color.blue);
   r1.setForeground(Color.blue);
   r1.setFillOn(true);
   stacker.setChildren(0, r1);

   // Creates a tiny red rectangle
   IlvRectangle r2 = new IlvRectangle(new IlvRect(0, 0, 10, 10));
   r2.setBackground(Color.red);
   r2.setForeground(Color.red);
   r2.setFillOn(true);
   stacker.setChildren(1, r2);

   // Creates a tiny green rectangle
   IlvRectangle r3 = new IlvRectangle(new IlvRect(0, 0, 10, 10));
   r3.setBackground(Color.green);
   r3.setForeground(Color.green);
   r3.setFillOn(true);
   stacker.setChildren(2, r3);

   // Adds the stack of rectangles
   clink.setChildren(1, stacker);
   // IlvLinkAttachmentLocation.NearFromLink --> hotSpot,
   // IlvLinkAttachmentLocation.FromLink --> anchor
   clink.setConstraints(1,
           new IlvAttachmentConstraint(
                   IlvLinkAttachmentLocation.NearFromLink,
                   IlvLinkAttachmentLocation.FromLink));

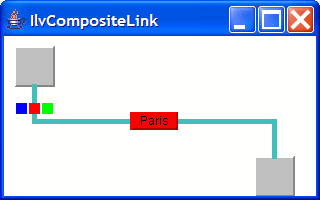

The following image shows the graphic object created in the code example:

About Graphic Objects

IlvCompositeLink is a custom graphic object, that is, a subclass of IlvGraphic. Graphic objects are controlled using an IlvManager instance and displayed using one or more IlvManagerView instances in a Java Swing application. For information about generic features for graphic objects, see IlvGraphic.

Since:: JViews 6.0
See Also:: IlvManager, IlvManagerView, setLink(ilog.views.IlvLinkImage), Serialized Form

Constructor Summary

Constructors
Constructor and Description
`IlvCompositeLink()` Creates an `IlvCompositeLink` instance.
`IlvCompositeLink(IlvCompositeLink source)` Creates an `IlvCompositeLink` by copying an existing one.
`IlvCompositeLink(IlvGraphic from, IlvGraphic to, boolean oriented)` Creates a new `IlvCompositeLink` instance with no intermediate points.
`IlvCompositeLink(IlvGraphic from, IlvGraphic to, boolean oriented, IlvLinkImage link)` Creates a new `IlvCompositeLink` instance.
`IlvCompositeLink(IlvGraphic from, IlvGraphic to, boolean oriented, IlvPoint[] points)` Creates a new `IlvCompositeLink` instance.
`IlvCompositeLink(IlvInputStream stream)` Reads the object from an `IlvInputStream`.

Method Summary

All Methods Instance Methods Concrete Methods
Modifier and Type	Method and Description
`void`	`addObject(IlvGraphic graphic, boolean redraw)` You should not called this method directly
`boolean`	`allowsPointInsertion()` This method delegates to the link supplied with the `setLink` method.
`boolean`	`allowsPointMove(int index)` This method delegates to the link supplied with the `setLink` method.
`boolean`	`allowsPointRemoval()` This method delegates to the link supplied with the `setLink` method.
`void`	`applyToObject(IlvGraphic graphic, IlvApplyObject f, Object arg, boolean redraw)` Applies a method to a graphic object of the bag.
`void`	`applyTransform(IlvTransformer t)` Applies a transformation to the shape of the object.
`void`	`baseTextDirectionChanged(int oldBaseTextDirection, int newBaseTextDirection)` Called when the object is base text direction sensitive and the resolved base text direction has changed.
`IlvRect`	`boundingBox(IlvTransformer t)` Returns the bounding rectangle of this object.
`void`	`componentOrientationChanged(ComponentOrientation oldOri, ComponentOrientation newOri)` Called when the object is component orientation sensitive and the component orientation has changed.
`boolean`	`contains(IlvPoint p, IlvPoint tp, IlvTransformer t)` Tests if a point lies within the outline of the link.
`IlvGraphic`	`copy()` Copies the link.
`protected IlvCompositeGraphic`	`createCompositeNode()` Creates a new `IlvCompositeGraphic` instance used to lay out the children
`void`	`doLayout()` Layout this object using its layout manager.
`void`	`draw(Graphics dst, IlvTransformer t)` Draws this link.
`protected void`	`drawCore(Graphics2D dst, IlvTransformer t)` Draws the object.
`Action`	`getAction(int index, IlvMouseGesture gesture)` Returns the action associated with the child and the given gesture if any.
`float`	`getAlpha()` Returns the alpha value of this object.
`IlvAttachableGraphic`	`getAttachableGraphic(IlvGraphic element)` Returns an `IlvAttachableGraphic` for the supplied `IlvGraphic`
`IlvRect`	`getBaseBoundingBox(IlvTransformer t)` Returns the bounding rectangle of the core link of this object excluding the decoration.
`int`	`getBaseTextDirection()` Returns the base direction of the text.
`IlvGraphic[]`	`getChildren()` Returns the children of this object.
`IlvGraphic`	`getChildren(int index)` Returns the child of this object at the given position.
`protected IlvCompositeGraphic`	`getCompositeNode()` Returns the `IlvCompositeGraphic` instance used to lay out the children
`void`	`getConnectionPoints(IlvPoint src, IlvPoint dst, IlvTransformer t)` This method delegates to the link supplied with the `setLink` method.
`IlvPoint`	`getConnectionReferencePoint(boolean origin, IlvTransformer t)` This method delegates to the link supplied with the `setLink` method.
`Object[]`	`getConstraints()` Returns the constraints of the children of this object.
`Object`	`getConstraints(int index)` Returns the constraint of the child at the given position.
`int`	`getEndCap()` This method delegates to the link supplied with the `setLink` method.
`IlvEventMap[]`	`getEventMaps()` Returns the event maps of the children of this object.
`Color`	`getForeground()` This method delegates to the link supplied with the `setLink` method.
`String`	`getLabel()` Returns the label of the object.
`IlvRect`	`getLabelBBox(IlvTransformer t)` Returns the area where the label is displayed.
`int`	`getLineJoin()` This method delegates to the link supplied with the `setLink` method.
`float[]`	`getLineStyle()` This method delegates to the link supplied with the `setLink` method.
`double`	`getLineWidth()` This method delegates to the link supplied with the `setLink` method.
`double`	`getLineWidth(IlvTransformer t)` This method delegates to the link supplied with the `setLink` method.
`IlvLinkImage`	`getLink()` Returns the link responsible for the rendering.
`IlvPoint[]`	`getLinkPoints(IlvTransformer t)` This method delegates to the link supplied with the `setLink` method.
`double`	`getMaximumLineWidth()` This method delegates to the link supplied with the `setLink` method.
`IlvGraphic`	`getObject(String name)` Returns the graphic object with that name if exists in the bag, otherwise returns `null`.
`IlvGraphicEnumeration`	`getObjects()` Returns all the children of this object.
`IlvComposite`	`getParent()` Always returns `null`.
`IlvPoint`	`getPointAt(int index, IlvTransformer t)` This method delegates to the link supplied with the `setLink` method.
`int`	`getPointsCardinal()` This method delegates to the link supplied with the `setLink` method.
`IlvComposite`	`getRoot()` Returns this object which is the root of the hierarchy.
`String`	`getToolTipText(IlvPoint p, IlvTransformer t)` Returns the tooltip text to display when the mouse pointer is at a specified location inside the graphic object.
`double[]`	`getVisibilityThresholds()` Returns the zoom level above which the children are visible.
`double`	`getVisibilityThresholds(int index)` Returns the zoom level above which the child at the supplied position is visible.
`boolean`	`hasActions(int index)` Always returns `false` Cannot define actions on composite links.
`void`	`insertPoint(int index, double x, double y, IlvTransformer t)` This method delegates to the link supplied with the `setLink` method.
`void`	`invalidate()` Invalidates this composite.
`protected void`	`invalidateBBoxCache()` Invalidates the bounding box cache.
`boolean`	`isBaseTextDirectionSensitive()` Returns `true` because the bounding boxes of object's children may depend on its text direction.
`boolean`	`isOriented()` This method delegates to the link supplied with the `setLink` method.
`boolean`	`isSensitive()` When returns `true`, the AWT events are dispatched to the Swing actions.
`boolean`	`isSpline()` Returns `true` if the link has spline routing functionality.
`boolean`	`isValid()` Determines whether this composite is valid.
`void`	`localeChanged(ULocale oldLocale, ULocale newLocale)` Called when the object is locale sensitive and the locale has changed.
`void`	`moveObject(IlvGraphic graphic, double x, double y, boolean redraw)` Changes the location of a graphic object.
`void`	`movePoint(int index, double x, double y, IlvTransformer t)` This method delegates to the link supplied with the `setLink` method.
`boolean`	`pointsInBBox()` This method delegates to the link supplied with the `setLink` method.
`void`	`reDrawObj(IlvGraphic obj)` Redraws a graphic object located in the bag.
`void`	`reDrawRegion(IlvRegion region)` Redraws a region of the bag.
`void`	`removeObject(IlvGraphic graphic, boolean redraw)` You should not called this method directly
`void`	`removePoint(int index, IlvTransformer t)` This method delegates to the link supplied with the `setLink` method.
`void`	`reshapeObject(IlvGraphic graphic, IlvRect newrect, boolean redraw)` Changes the size of a graphic object.
`void`	`setAlpha(float alpha)` Changes the alpha value of this object.
`void`	`setBaseTextDirection(int baseTextDirection)` Changes the base direction of the text.
`protected void`	`setBaseTextDirectionDuringConstruction(int baseTextDirection)` Changes the base direction of the text.
`void`	`setChildren(IlvGraphic[] children)` Sets a new collection of children for this object.
`void`	`setChildren(int index, IlvGraphic child)` Adds the given child of this object at the supplied position.
`void`	`setConstraints(int index, Object constraint)` Sets the attachments for the child at the given position of this object.
`void`	`setConstraints(Object[] attachments)` Sets the attachments for each child of this object.
`void`	`setEndCap(int endCap)` This method delegates to the link supplied with the `setLink` method.
`void`	`setForeground(Color c)` This method delegates to the link supplied with the `setLink` method.
`void`	`setGraphicBag(IlvGraphicBag bag)` Changes the bag that contains the object.
`void`	`setIntermediateLinkPoints(IlvPoint[] points, int index, int length)` This method delegates to the link supplied with the `setLink` method.
`void`	`setLabel(String label)` Changes the label of the object.
`void`	`setLineJoin(int lineJoin)` This method delegates to the link supplied with the `setLink` method.
`void`	`setLineStyle(float[] lineStyle)` This method delegates to the link supplied with the `setLink` method.
`void`	`setLineWidth(double lineWidth)` This method delegates to the link supplied with the `setLink` method.
`void`	`setLink(IlvLinkImage link)` Sets the link responsible for the rendering.
`void`	`setMaximumLineWidth(double maximumLineWidth)` This method delegates to the link supplied with the `setLink` method.
`boolean`	`setObjectName(IlvGraphic graphic, String name)` Changes the name of a graphic object.
`void`	`setOriented(boolean oriented)` This method delegates to the link supplied with the `setLink` method.
`void`	`setSensitive(boolean sensitive)` When this property is set to `true`, the object interactor `IlvCompositeInteractor` dispatches the AWT events to the Swing actions defined in the event maps.
`void`	`setToolTipText(String text)` Sets the text to display in the tooltip of this object.
`void`	`setVisibilityThresholds(double[] thresholds)` Sets the zoom thresholds for each child above which the children are visible
`void`	`setVisibilityThresholds(int index, double threshold)` This property defines above which zoom level the child at the supplied index will be visible.
`boolean`	`supportMultiline()` Returns `true` if the label can be a multiline label; `false` otherwise.
`void`	`write(IlvOutputStream stream)` Writes the object to an `IlvOutputStream`.

Methods inherited from class ilog.views.IlvLinkImage
arrowBBox, arrowContains, drawArrow, finalize, getArrowSize, getFrom, getFromBoundingBox, getFromTransformer, getLinkConnectorConnectionPoint, getLinkPoints, getLocalTransformerOf, getOpposite, getTo, getToBoundingBox, getToTransformer, getVisibleFrom, getVisibleTo, isPersistent, makeSelection, setFrom, setLinkPoints, setTo, zoomable

Methods inherited from class ilog.views.IlvGraphic
addActionListener, addNamedPropertyListener, allViewsRemoved, blinkingStateOn, boundingBox, callDraw, getAndAssociateObjectInteractor, getBlinkingAction, getBlinkingObjectOwner, getBlinkingOffPeriod, getBlinkingOnPeriod, getCenter, getComponentOrientation, getDefaultInteractor, getGraphicBag, GetGraphicObject, getIntersectionWithOutline, getLocale, getName, getNamedProperty, getObjectInteractor, getPopupMenu, getPopupMenu, getPopupMenuName, getProperty, getResolvedBaseTextDirection, getToolTipBaseTextDirection, getToolTipText, getTopLevelGraphicBag, getTransferData, getTransferDataFlavors, getULocale, getZOrderIndex, hasProperty, inside, intersects, invalidateBidiCache, isComponentOrientationSensitive, isDataFlavorSupported, isEditable, isInApplyToObject, isLocaleSensitive, isMovable, isSelectable, isVisible, move, move, moveResize, needsViewNotification, notifyObjectInteractorToManager, processActionEvent, reDraw, registerBlinkingResource, removeActionListener, removeNamedProperty, removeNamedPropertyListener, removeProperty, replaceProperty, resize, rotate, scale, setBackground, setBlinkingAction, setBlinkingOffPeriod, setBlinkingOnPeriod, setEditable, setFillOn, setInApplyToObject, setMovable, setName, setNamedProperty, setNameImpl, setObjectInteractor, setPopupMenu, setPopupMenuName, setProperty, setSelectable, setStrokeOn, setToolTipBaseTextDirection, setVisible, setZOrderIndex, toString, translate, updateNeedsViewNotification, usesBidiMarkers, viewAddedOrRemoved

Methods inherited from class java.lang.Object
clone, equals, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface ilog.views.IlvGraphicBag
getGraphicBag

- Constructor Detail
  - IlvCompositeLink
```
public IlvCompositeLink()
```
    Creates an IlvCompositeLink instance.
  - IlvCompositeLink
```
public IlvCompositeLink(IlvGraphic from,
                        IlvGraphic to,
                        boolean oriented,
                        IlvPoint[] points)
```
    Creates a new IlvCompositeLink instance.

    Parameters:

    from - The origin object.

    to - The destination object.

    oriented - If true, an arrow is drawn at the destination point.

    points - The intermediate points of the polylink. If the array is null or its length is 0, the link is created without intermediate points.
  - IlvCompositeLink
```
public IlvCompositeLink(IlvGraphic from,
                        IlvGraphic to,
                        boolean oriented)
```
    Creates a new IlvCompositeLink instance with no intermediate points.

    Parameters:

    from - The origin object.

    to - The destination object.

    oriented - If true, an arrow is drawn at the destination point.
  - IlvCompositeLink
```
public IlvCompositeLink(IlvGraphic from,
                        IlvGraphic to,
                        boolean oriented,
                        IlvLinkImage link)
```
    Creates a new IlvCompositeLink instance.

    Parameters:

    from - The origin object.

    to - The destination object.

    oriented - If true, an arrow is drawn at the destination point.

    link - The link to be used for the rendering.
  - IlvCompositeLink
```
public IlvCompositeLink(IlvInputStream stream)
                 throws IlvReadFileException
```
    Reads the object from an IlvInputStream.

    Parameters:

    stream - The input stream.

    Throws:

    IlvReadFileException - if the format is not correct.
  - IlvCompositeLink
```
public IlvCompositeLink(IlvCompositeLink source)
```
    Creates an IlvCompositeLink by copying an existing one.

    Parameters:

    source - The origin of the copy.

    Since:

    JViews 8.1
- Method Detail
  - copy
```
public IlvGraphic copy()
```
    Copies the link.

    Overrides:

    copy in class IlvPolylineLinkImage

    Returns:

    A copy of this IlvGraphic instance.

    See Also:

    IlvGraphic
  - isValid
```
public boolean isValid()
```
    Determines whether this composite is valid.

    Specified by:

    isValid in interface IlvComposite
  - invalidate
```
public void invalidate()
```
    Invalidates this composite. This composite and all parents above it are marked as needing to be laid out.

    Specified by:

    invalidate in interface IlvComposite
  - addObject
```
public void addObject(IlvGraphic graphic,
                      boolean redraw)
```
    You should not called this method directly

    Specified by:

    addObject in interface IlvGraphicBag

    Parameters:

    graphic - The graphic object.

    redraw - If true the object is redrawn.
  - removeObject
```
public void removeObject(IlvGraphic graphic,
                         boolean redraw)
```
    You should not called this method directly

    Specified by:

    removeObject in interface IlvGraphicBag

    Parameters:

    graphic - The graphic object.

    redraw - If true the object is redrawn.
  - getObjects
```
public IlvGraphicEnumeration getObjects()
```
    Returns all the children of this object.

    Specified by:

    getObjects in interface IlvGraphicBag

    Returns:

    An enumeration of IlvGraphic objects, or null.
  - reDrawObj
```
public void reDrawObj(IlvGraphic obj)
```
    Redraws a graphic object located in the bag.

    Specified by:

    reDrawObj in interface IlvGraphicBag

    Parameters:

    obj - The graphic object.
  - reDrawRegion
```
public void reDrawRegion(IlvRegion region)
```
    Redraws a region of the bag.

    Specified by:

    reDrawRegion in interface IlvGraphicBag

    Parameters:

    region - The region to redraw.
  - reshapeObject
```
public void reshapeObject(IlvGraphic graphic,
                          IlvRect newrect,
                          boolean redraw)
```
    Changes the size of a graphic object.

    Specified by:

    reshapeObject in interface IlvGraphicBag

    Parameters:

    graphic - The graphic object.

    newrect - The new desired bounding rectangle.

    redraw - If true the object is redrawn.
  - moveObject
```
public void moveObject(IlvGraphic graphic,
                       double x,
                       double y,
                       boolean redraw)
```
    Changes the location of a graphic object.

    Specified by:

    moveObject in interface IlvGraphicBag

    Parameters:

    graphic - The graphic object.

    x - The new desired x position.

    y - The new desired y position.

    redraw - If true the object is redrawn.
  - applyToObject
```
public void applyToObject(IlvGraphic graphic,
                          IlvApplyObject f,
                          Object arg,
                          boolean redraw)
```
    Applies a method to a graphic object of the bag.

    Specified by:

    applyToObject in interface IlvGraphicBag

    Parameters:

    graphic - The graphic object.

    f - The method to apply.

    arg - The arguments passed to the method f.

    redraw - If true the object is redrawn.
  - setObjectName
```
public boolean setObjectName(IlvGraphic graphic,
                             String name)
```
    Changes the name of a graphic object.

    Specified by:

    setObjectName in interface IlvGraphicBag

    Parameters:

    graphic - The graphic object.

    name - The new name.

    Returns:

    true if the name can be changed.
  - draw
```
public void draw(Graphics dst,
                 IlvTransformer t)
```
    Draws this link.

    Overrides:

    draw in class IlvLinkImage

    Parameters:

    dst - The destination Graphics.

    t - The transformation used to draw the object.

    See Also:

    IlvGraphic.callDraw(Graphics,IlvTransformer), IlvGraphic.boundingBox(IlvTransformer), IlvGraphic.zoomable(), IlvGraphic
  - drawCore
```
protected void drawCore(Graphics2D dst,
                        IlvTransformer t)
```
    Draws the object. This method is called from draw(java.awt.Graphics, ilog.views.IlvTransformer) after processing the alpha transparency. It can be overridden in subclasses.

    Parameters:

    dst - The destination Graphics.

    t - The transformation used to draw the object.

    Since:

    JViews 8.1

    See Also:

    setAlpha(float)
  - boundingBox
```
public IlvRect boundingBox(IlvTransformer t)
```
    Returns the bounding rectangle of this object.

    Specified by:

    boundingBox in interface IlvPolyPointsInterface

    Overrides:

    boundingBox in class IlvLinkImage

    Parameters:

    t - The transformer used to draw the object.

    See Also:

    IlvGraphic.draw(java.awt.Graphics, ilog.views.IlvTransformer), IlvGraphic.zoomable(), IlvGraphic
  - getBaseBoundingBox
```
public IlvRect getBaseBoundingBox(IlvTransformer t)
```
    Returns the bounding rectangle of the core link of this object excluding the decoration.

    Parameters:

    t - The transformer used to draw the object.
  - doLayout
```
public void doLayout()
```
    Layout this object using its layout manager.

    Specified by:

    doLayout in interface IlvComposite
  - applyTransform
```
public void applyTransform(IlvTransformer t)
```
    Applies a transformation to the shape of the object. The method applies the transformer t to the intermediate points of the link, if any.

    Overrides:

    applyTransform in class IlvPolylineLinkImage

    Parameters:

    t - The transformer to be applied.

    See Also:

    IlvGraphic
  - contains
```
public boolean contains(IlvPoint p,
                        IlvPoint tp,
                        IlvTransformer t)
```
    Tests if a point lies within the outline of the link.

    Overrides:

    contains in class IlvLinkImage

    Parameters:

    p - The point to be tested.

    tp - The point p transformed by the transformer t.

    t - The transformation that was applied to the object when it was drawn.

    Returns:

    true if the point lies inside this graphic object.

    See Also:

    IlvGraphic
  - getToolTipText
```
public String getToolTipText(IlvPoint p,
                             IlvTransformer t)
```
    Returns the tooltip text to display when the mouse pointer is at a specified location inside the graphic object.

    Overrides:

    getToolTipText in class IlvGraphic

    Parameters:

    p - The location of the mouse in view coordinates.

    t - The transformer that converts the manager coordinates of this object into the coordinate system of the manager view in which the tooltip will be displayed (the view coordinates).

    Returns:

    The tooltip at point p for transformation t, or null if no tooltip should be displayed.

    See Also:

    IlvGraphic, IlvGraphic.getToolTipText(), IlvGraphic.setToolTipText(String)
  - setToolTipText
```
public void setToolTipText(String text)
```
    Sets the text to display in the tooltip of this object.
    Tooltips for Rogue Wave JViews graphic objects will work only if your manager view is contained in a hierarchy of Swing components. In addition, you must enable the tooltip mechanism for the manager view by calling the static method IlvToolTipManager.registerView(ilog.views.IlvManagerView).

    Overrides:

    setToolTipText in class IlvGraphic

    Parameters:

    text - The tooltip string to display. If text is null, the tooltip is turned off for this graphic object.

    See Also:

    IlvToolTipManager, IlvGraphic.getToolTipText(), getToolTipText(IlvPoint, IlvTransformer)
  - setChildren
```
public void setChildren(IlvGraphic[] children)
```
    Sets a new collection of children for this object. Note that a call to this method can modify the bounding box of this object. For this reason, if the graphic set is contained inside an IlvManager, this method can be called only using the method IlvManager.applyToObject(ilog.views.IlvGraphic, ilog.views.IlvApplyObject, java.lang.Object, boolean) of the manager.

    Parameters:

    children - Array of children to be added. The value null removes all the children.
  - getChildren
```
public IlvGraphic[] getChildren()
```
    Returns the children of this object. Some positions of the returned array may be null. The returned value may be null if there is no children.

    Specified by:

    getChildren in interface IlvComposite
  - setChildren
```
public void setChildren(int index,
                        IlvGraphic child)
```
    Adds the given child of this object at the supplied position. Note that a call to this method can modify the bounding box of this object. For this reason, if the graphic set is contained inside an IlvManager, this method can be called only using the method IlvManager.applyToObject(ilog.views.IlvGraphic, ilog.views.IlvApplyObject, java.lang.Object, boolean) of the manager.

    Parameters:

    index - The position of the child to be set.

    child - The child to be added. The value null removes the current child at the supplied position.
  - getChildren
```
public IlvGraphic getChildren(int index)
```
    Returns the child of this object at the given position.

    Specified by:

    getChildren in interface IlvComposite
  - setConstraints
```
public void setConstraints(Object[] attachments)
```
    Sets the attachments for each child of this object. These attachments are taken into account by the layout.

    Parameters:

    attachments - Array of constraints for the layout

    Since:

    JViews 8.1

    See Also:

    IlvAttachmentConstraint, IlvLinkAttachmentLocation, IlvAttachmentLayout
  - getConstraints
```
public Object[] getConstraints()
```
    Returns the constraints of the children of this object.

    Since:

    JViews 8.1

    See Also:

    IlvAttachmentConstraint, IlvLinkAttachmentLocation, IlvAttachmentLayout
  - setConstraints
```
public void setConstraints(int index,
                           Object constraint)
```
    Sets the attachments for the child at the given position of this object. These attachments are taken into account by the layout.

    Parameters:

    index - The position of the child that the supplied constraint applies to.

    constraint - The constraint used by the layout for the child

    See Also:

    IlvAttachmentConstraint, IlvLinkAttachmentLocation, IlvAttachmentLayout
  - getConstraints
```
public Object getConstraints(int index)
```
    Returns the constraint of the child at the given position.
  - setLink
```
public void setLink(IlvLinkImage link)
```
    Sets the link responsible for the rendering. The following properties of the supplied link:
    are overridden by the corresponding properties of this IlvCompositeLink instance. Note that a call to this method can modify the bounding box of this object. For this reason, if the graphic set is contained inside an IlvManager, this method can be called only using the method IlvManager.applyToObject(ilog.views.IlvGraphic, ilog.views.IlvApplyObject, java.lang.Object, boolean) of the manager.
  - getLink
```
public IlvLinkImage getLink()
```
    Returns the link responsible for the rendering.
  - getPointsCardinal
```
public int getPointsCardinal()
```
    This method delegates to the link supplied with the setLink method.

    Specified by:

    getPointsCardinal in interface IlvPolyPointsInterface

    Overrides:

    getPointsCardinal in class IlvPolylineLinkImage

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getPointsCardinal()
  - allowsPointInsertion
```
public boolean allowsPointInsertion()
```
    This method delegates to the link supplied with the setLink method.

    Specified by:

    allowsPointInsertion in interface IlvPolyPointsInterface

    Overrides:

    allowsPointInsertion in class IlvPolylineLinkImage

    Returns:

    Always true.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.allowsPointInsertion()
  - allowsPointRemoval
```
public boolean allowsPointRemoval()
```
    This method delegates to the link supplied with the setLink method.

    Specified by:

    allowsPointRemoval in interface IlvPolyPointsInterface

    Overrides:

    allowsPointRemoval in class IlvPolylineLinkImage

    Returns:

    true if at least one intermediate point exists and false otherwise.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.allowsPointRemoval()
  - allowsPointMove
```
public boolean allowsPointMove(int index)
```
    This method delegates to the link supplied with the setLink method.

    Specified by:

    allowsPointMove in interface IlvPolyPointsInterface

    Overrides:

    allowsPointMove in class IlvLinkImage

    Parameters:

    index - The index of the point.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.allowsPointMove(int)
  - insertPoint
```
public void insertPoint(int index,
                        double x,
                        double y,
                        IlvTransformer t)
```
    This method delegates to the link supplied with the setLink method.

    Specified by:

    insertPoint in interface IlvPolyPointsInterface

    Overrides:

    insertPoint in class IlvPolylineLinkImage

    Parameters:

    index - The index at which the new point will be inserted.

    x - The x coordinate of the new point (in manager coordinates).

    y - The y coordinate of the new point (in manager coordinates).

    t - The transformer used to draw the link.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.insertPoint(int, double, double, ilog.views.IlvTransformer)
  - removePoint
```
public void removePoint(int index,
                        IlvTransformer t)
```
    This method delegates to the link supplied with the setLink method.

    Specified by:

    removePoint in interface IlvPolyPointsInterface

    Overrides:

    removePoint in class IlvPolylineLinkImage

    Parameters:

    index - The index of the point to be removed.

    t - The transformer used to draw the link.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.removePoint(int, ilog.views.IlvTransformer)
  - getPointAt
```
public IlvPoint getPointAt(int index,
                           IlvTransformer t)
```
    This method delegates to the link supplied with the setLink method.

    Specified by:

    getPointAt in interface IlvPolyPointsInterface

    Overrides:

    getPointAt in class IlvPolylineLinkImage

    Parameters:

    index - The index of the point.

    t - The transformer through which the object is drawn.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getPointAt(int, ilog.views.IlvTransformer)
  - movePoint
```
public void movePoint(int index,
                      double x,
                      double y,
                      IlvTransformer t)
```
    This method delegates to the link supplied with the setLink method.

    Specified by:

    movePoint in interface IlvPolyPointsInterface

    Overrides:

    movePoint in class IlvPolylineLinkImage

    Parameters:

    index - The index of the point to be moved.

    x - The new x coordinate (in manager coordinates).

    y - The new y coordinate (in manager coordinates).

    t - The transformer through which the object is drawn.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.movePoint(int, double, double, ilog.views.IlvTransformer)
  - setIntermediateLinkPoints
```
public void setIntermediateLinkPoints(IlvPoint[] points,
                                      int index,
                                      int length)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    setIntermediateLinkPoints in class IlvPolylineLinkImage

    Parameters:

    points - An array of points.

    index - The index of the point that will be the first intermediate point.

    length - The number of intermediate points taken in the points array.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.setIntermediateLinkPoints(ilog.views.IlvPoint[], int, int)
  - pointsInBBox
```
public boolean pointsInBBox()
```
    This method delegates to the link supplied with the setLink method.

    Specified by:

    pointsInBBox in interface IlvPolyPointsInterface

    Overrides:

    pointsInBBox in class IlvLinkImage

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.pointsInBBox()
  - getConnectionReferencePoint
```
public IlvPoint getConnectionReferencePoint(boolean origin,
                                            IlvTransformer t)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    getConnectionReferencePoint in class IlvLinkImage

    Parameters:

    origin - If true, the connection point of the origin node is searched for. If origin is false, then the connection point of the destination node is searched for.

    t - The transformer used to draw the link.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getConnectionReferencePoint(boolean, ilog.views.IlvTransformer)
  - getConnectionPoints
```
public void getConnectionPoints(IlvPoint src,
                                IlvPoint dst,
                                IlvTransformer t)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    getConnectionPoints in class IlvLinkImage

    Parameters:

    src - A point for storing the origin.

    dst - A point for storing the destination.

    t - The transformer used to draw the link.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getConnectionPoints(ilog.views.IlvPoint, ilog.views.IlvPoint, ilog.views.IlvTransformer)
  - isOriented
```
public boolean isOriented()
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    isOriented in class IlvLinkImage

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.isOriented()
  - setOriented
```
public void setOriented(boolean oriented)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    setOriented in class IlvLinkImage

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.setOriented(boolean)
  - setForeground
```
public void setForeground(Color c)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    setForeground in class IlvLinkImage

    Parameters:

    c - The new color.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.setForeground(java.awt.Color)
  - getForeground
```
public Color getForeground()
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    getForeground in class IlvLinkImage

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getForeground()
  - getLineWidth
```
public double getLineWidth()
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    getLineWidth in class IlvLinkImage

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getLineWidth()
  - getLineWidth
```
public double getLineWidth(IlvTransformer t)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    getLineWidth in class IlvLinkImage

    Parameters:

    t - The transformer used to draw the link.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getLineWidth(IlvTransformer)
  - setLineWidth
```
public void setLineWidth(double lineWidth)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    setLineWidth in class IlvLinkImage

    Parameters:

    lineWidth - The new line width.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.setLineWidth(double)
  - getEndCap
```
public int getEndCap()
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    getEndCap in class IlvLinkImage

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getEndCap()
  - setEndCap
```
public void setEndCap(int endCap)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    setEndCap in class IlvLinkImage

    Parameters:

    endCap - The new decoration style. The values are defined in the class IlvStroke. The default value is CAP_SQUARE.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.setEndCap(int)
  - getLineJoin
```
public int getLineJoin()
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    getLineJoin in class IlvLinkImage

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getLineJoin()
  - setLineJoin
```
public void setLineJoin(int lineJoin)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    setLineJoin in class IlvLinkImage

    Parameters:

    lineJoin - The new decoration style. The values are defined in the class IlvStroke. The default value is JOIN_MITER.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.setLineJoin(int)
  - getMaximumLineWidth
```
public double getMaximumLineWidth()
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    getMaximumLineWidth in class IlvLinkImage

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getMaximumLineWidth()
  - setMaximumLineWidth
```
public void setMaximumLineWidth(double maximumLineWidth)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    setMaximumLineWidth in class IlvLinkImage

    Parameters:

    maximumLineWidth - The maximum line width, or 0 to indicate no limit.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.setMaximumLineWidth(double)
  - getLineStyle
```
public float[] getLineStyle()
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    getLineStyle in class IlvLinkImage

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getLineStyle()
  - setLineStyle
```
public void setLineStyle(float[] lineStyle)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    setLineStyle in class IlvLinkImage

    Parameters:

    lineStyle - The new line style.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.setLineStyle(float[])
  - getLinkPoints
```
public IlvPoint[] getLinkPoints(IlvTransformer t)
```
    This method delegates to the link supplied with the setLink method.

    Overrides:

    getLinkPoints in class IlvPolylineLinkImage

    Parameters:

    t - The transformer through which the object is drawn.

    See Also:

    setLink(ilog.views.IlvLinkImage), getLink(), IlvLinkImage.getLinkPoints(ilog.views.IlvTransformer)
  - getEventMaps
```
public IlvEventMap[] getEventMaps()
```
    Returns the event maps of the children of this object.
  - getAction
```
public Action getAction(int index,
                        IlvMouseGesture gesture)
```
    Returns the action associated with the child and the given gesture if any.

    Specified by:

    getAction in interface IlvComposite

    Parameters:

    index - The position of the child

    gesture - The gesture whose action is required.

    Returns:

    The action attached to the gesture and the child

    See Also:

    Action, IlvMouseGesture
  - getParent
```
public IlvComposite getParent()
```
    Always returns null. This object is always the root in the hierarchy of composite graphics.

    Specified by:

    getParent in interface IlvComposite
  - getRoot
```
public IlvComposite getRoot()
```
    Returns this object which is the root of the hierarchy.

    Specified by:

    getRoot in interface IlvComposite
  - getObject
```
public IlvGraphic getObject(String name)
```
    Returns the graphic object with that name if exists in the bag, otherwise returns null.

    Specified by:

    getObject in interface IlvGraphicBag

    Parameters:

    name - The graphic object name.
  - setGraphicBag
```
public void setGraphicBag(IlvGraphicBag bag)
```
    Changes the bag that contains the object. You should not call this method directly unless you are creating a new type of bag.

    Overrides:

    setGraphicBag in class IlvGraphic

    Parameters:

    bag - The graphic bag.

    See Also:

    IlvGraphic
  - write
```
public void write(IlvOutputStream stream)
           throws IOException
```
    Writes the object to an IlvOutputStream. You should not call this method directly; instead, you should use the write methods of the manager.

    Specified by:

    write in interface IlvPersistentObject

    Overrides:

    write in class IlvPolylineLinkImage

    Parameters:

    stream - The output stream.

    Throws:

    IOException - thrown when an exception occurs during the write operation for this object.
  - createCompositeNode
```
protected IlvCompositeGraphic createCompositeNode()
```
    Creates a new IlvCompositeGraphic instance used to lay out the children
  - getCompositeNode
```
protected IlvCompositeGraphic getCompositeNode()
```
    Returns the IlvCompositeGraphic instance used to lay out the children
  - setVisibilityThresholds
```
public void setVisibilityThresholds(double[] thresholds)
```
    Sets the zoom thresholds for each child above which the children are visible

    Parameters:

    thresholds - array of zoom factors

    See Also:

    setVisibilityThresholds(int,double)
  - getVisibilityThresholds
```
public double[] getVisibilityThresholds()
```
    Returns the zoom level above which the children are visible.
  - setVisibilityThresholds
```
public void setVisibilityThresholds(int index,
                                    double threshold)
```
    This property defines above which zoom level the child at the supplied index will be visible.

    Parameters:

    index - The position of the child.

    threshold - The zoom factor above which the child is visible. When 0, the child is always visible.
  - getVisibilityThresholds
```
public double getVisibilityThresholds(int index)
```
    Returns the zoom level above which the child at the supplied position is visible.
  - getAttachableGraphic
```
public IlvAttachableGraphic getAttachableGraphic(IlvGraphic element)
```
    Returns an IlvAttachableGraphic for the supplied IlvGraphic

    Specified by:

    getAttachableGraphic in interface IlvComposite
  - setLabel
```
public void setLabel(String label)
```
    Changes the label of the object. This method works only if the composite link has a child that implements the IlvLabelInterface. It sets the label of this child.

    Specified by:

    setLabel in interface IlvLabelInterface
  - getLabel
```
public String getLabel()
```
    Returns the label of the object. This method looks for the first child of the composite link that implements the IlvLabelInterface. It returns the label of this child. It returns null if there is no such child.

    Specified by:

    getLabel in interface IlvLabelInterface
  - supportMultiline
```
public boolean supportMultiline()
```
    Returns true if the label can be a multiline label; false otherwise. This method works only if the composite link has a child that implements the IlvLabelInterface. It returns whether this child supports multilines.

    Specified by:

    supportMultiline in interface IlvLabelInterface
  - getLabelBBox
```
public IlvRect getLabelBBox(IlvTransformer t)
```
    Returns the area where the label is displayed. This method looks for the first child of the composite link that implements the IlvLabelInterface. It returns the area where this child is displayed. It returns null if there is no such child.

    Specified by:

    getLabelBBox in interface IlvLabelInterface

    Parameters:

    t - The transformer used to draw the graphic object.
  - hasActions
```
public boolean hasActions(int index)
```
    Always returns false Cannot define actions on composite links.

    Specified by:

    hasActions in interface IlvComposite

    Since:

    JViews 8.0
  - setSensitive
```
public void setSensitive(boolean sensitive)
```
    When this property is set to true, the object interactor IlvCompositeInteractor dispatches the AWT events to the Swing actions defined in the event maps.

    Since:

    JViews 8.0

    See Also:

    IlvCompositeInteractor, getAction(int, IlvMouseGesture), getEventMaps()
  - isSensitive
```
public boolean isSensitive()
```
    When returns true, the AWT events are dispatched to the Swing actions.

    Specified by:

    isSensitive in interface IlvComposite

    Since:

    JViews 8.0

    See Also:

    IlvCompositeInteractor, getAction(int, ilog.views.graphic.composite.IlvMouseGesture)
  - isSpline
```
public boolean isSpline()
```
    Returns true if the link has spline routing functionality. The method checks whether the delegate link obtained via getLink() has spline routing functionality.

    Overrides:

    isSpline in class IlvLinkImage

    Since:

    JViews 8.1
  - setAlpha
```
public void setAlpha(float alpha)
```
    Changes the alpha value of this object. The alpha composition value is used to render the wrapped object in a transparent way. The value must be in the range of [0.0, 1.0], the value of 1 means that the object is not transparent.

    Parameters:

    alpha - The new transparency level in the range [0.0, 1.0].

    Since:

    JViews 8.1

    See Also:

    getAlpha()
  - getAlpha
```
public float getAlpha()
```
    Returns the alpha value of this object. The alpha composition value is used to render the wrapped object in a transparent way. The value is in the range of [0.0, 1.0], the value of 1 means that the object is not transparent.

    Since:

    JViews 8.1

    See Also:

    setAlpha(float)
  - setBaseTextDirection
```
public void setBaseTextDirection(int baseTextDirection)
```
    Changes the base direction of the text. The possible choices are:
    - IlvBidiUtil.INHERITED_DIRECTION: the base text direction is inherited from the graphic bag that contains this object. If this object is not contained in a graphic bag, the base text direction is calculated from the component orientation.
    - IlvBidiUtil.COMPONENT_DIRECTION: the base text direction is calculated from the component orientation.
    - IlvBidiUtil.LEFT_TO_RIGHT: the base text direction is left-to-right.
    - IlvBidiUtil.RIGHT_TO_LEFT: the base text direction is right-to-left.
    - IlvBidiUtil.CONTEXTUAL_DIRECTION: the base test direction is determined from the text that is displayed according to the standard Bidi algorithm, if the text contains at least one character with a strong left-to-right or right-to-left direction. If the text doesn't contain any character with a strong direction, the real text direction is determined from the current component orientation of the object.
    Specified by:

    setBaseTextDirection in interface IlvBaseTextDirectionInterface

    Overrides:

    setBaseTextDirection in class IlvGraphic

    Parameters:

    baseTextDirection - The base text direction

    Since:

    JViews 8.8

    See Also:

    IlvGraphic.baseTextDirectionChanged(int, int)
  - setBaseTextDirectionDuringConstruction
```
protected void setBaseTextDirectionDuringConstruction(int baseTextDirection)
```
    Changes the base direction of the text. Called by the constructors. You should not call this method.

    Overrides:

    setBaseTextDirectionDuringConstruction in class IlvGraphic

    Parameters:

    baseTextDirection - The base text direction

    Since:

    JViews 8.8
  - getBaseTextDirection
```
public int getBaseTextDirection()
```
    Returns the base direction of the text. The possible return values are:
    - IlvBidiUtil.INHERITED_DIRECTION: the base text direction is inherited from the graphic bag that contains this object. If this object is not contained in a graphic bag, the base text direction is calculated from the component orientation.
    - IlvBidiUtil.COMPONENT_DIRECTION: the base text direction is calculated from the component orientation.
    - IlvBidiUtil.LEFT_TO_RIGHT: the base text direction is left-to-right.
    - IlvBidiUtil.RIGHT_TO_LEFT: the base text direction is right-to-left.
    - IlvBidiUtil.CONTEXTUAL_DIRECTION: the base test direction is determined from the text that is displayed according to the standard Bidi algorithm, if the text contains at least one character with a strong left-to-right or right-to-left direction. If the text doesn't contain any character with a strong direction, the real text direction is determined from the current component orientation of the object.
    Specified by:

    getBaseTextDirection in interface IlvBaseTextDirectionInterface

    Overrides:

    getBaseTextDirection in class IlvGraphic

    Returns:

    The base text direction.

    Since:

    JViews 8.8
  - isBaseTextDirectionSensitive
```
public boolean isBaseTextDirectionSensitive()
```
    Returns true because the bounding boxes of object's children may depend on its text direction. This method overrides the isBaseTextDirectionSensitive method of the class IlvGraphic.

    Overrides:

    isBaseTextDirectionSensitive in class IlvGraphic

    Returns:

    Whether the bounding box of this object depends on the base text direction.

    Since:

    JViews 8.8
  - baseTextDirectionChanged
```
public void baseTextDirectionChanged(int oldBaseTextDirection,
                                     int newBaseTextDirection)
```
    Called when the object is base text direction sensitive and the resolved base text direction has changed.

    Overrides:

    baseTextDirectionChanged in class IlvGraphic

    Parameters:

    oldBaseTextDirection - Resolved base text direction of this object before the change.

    newBaseTextDirection - Resolved base text direction of this object after the change.

    Since:

    JViews 8.8

    See Also:

    isBaseTextDirectionSensitive()
  - componentOrientationChanged
```
public void componentOrientationChanged(ComponentOrientation oldOri,
                                        ComponentOrientation newOri)
```
    Called when the object is component orientation sensitive and the component orientation has changed.

    Overrides:

    componentOrientationChanged in class IlvGraphic

    Parameters:

    oldOri - Orientation of this object before the orientation change.

    newOri - Orientation of this object after the orientation change.

    Since:

    JViews 8.8

    See Also:

    IlvGraphic.isComponentOrientationSensitive()
  - localeChanged
```
public void localeChanged(ULocale oldLocale,
                          ULocale newLocale)
```
    Called when the object is locale sensitive and the locale has changed.

    Overrides:

    localeChanged in class IlvGraphic

    Parameters:

    oldLocale - Locale of this object before the locale change.

    newLocale - Locale of this object after the locale change.

    Since:

    JViews 8.8

    See Also:

    IlvGraphic.isLocaleSensitive()
  - invalidateBBoxCache
```
protected void invalidateBBoxCache()
```
    Invalidates the bounding box cache.

    Overrides:

    invalidateBBoxCache in class IlvGraphic

    Since:

    JViews 8.8

Class IlvCompositeLink

Example

About Graphic Objects

Constructor Summary

Method Summary

Methods inherited from class ilog.views.IlvLinkImage

Methods inherited from class ilog.views.IlvGraphic

Methods inherited from class java.lang.Object

Methods inherited from interface ilog.views.IlvGraphicBag

Constructor Detail

IlvCompositeLink

IlvCompositeLink

IlvCompositeLink

IlvCompositeLink

IlvCompositeLink

IlvCompositeLink

Method Detail

copy

isValid

invalidate

addObject

removeObject

getObjects

reDrawObj

reDrawRegion

reshapeObject

moveObject

applyToObject

setObjectName

draw

drawCore

boundingBox

getBaseBoundingBox

doLayout

applyTransform

contains

getToolTipText

setToolTipText

setChildren

getChildren

setChildren

getChildren

setConstraints

getConstraints

setConstraints

getConstraints

setLink

getLink

getPointsCardinal

allowsPointInsertion

allowsPointRemoval

allowsPointMove

insertPoint

removePoint

getPointAt

movePoint

setIntermediateLinkPoints

pointsInBBox

getConnectionReferencePoint

getConnectionPoints

isOriented

setOriented

setForeground

getForeground

getLineWidth

getLineWidth

setLineWidth

getEndCap

setEndCap

getLineJoin

setLineJoin

getMaximumLineWidth

setMaximumLineWidth

getLineStyle

setLineStyle

getLinkPoints

getEventMaps

getAction

getParent

getRoot
