IlvLabel (Rogue Wave JViews 9.0 API)

java.lang.Object
- ilog.views.IlvGraphic
- - ilog.views.IlvBidiGraphic
  - - ilog.views.graphic.IlvLabel

All Implemented Interfaces:

IlvFontInterface, IlvLabelInterface, IlvTextInterface, IlvPersistentObject, IlvBlinkingObject, IlvBaseTextDirectionInterface, Transferable, Serializable

Direct Known Subclasses:

IlvFilledLabel
```
public class IlvLabel
extends IlvBidiGraphic
implements IlvFontInterface, IlvTextInterface
```
IlvLabel represents a simple graphic object that shows a single line of text. This object is not zoomable.
The default values for an IlvLabel instance are as follows:
- Font color (foreground): Color.black
- Center: IlvPoint(0, 0)
- Font: Dialog plain 12pt
The width of the IlvLabel instance is calculated in function on the length of the label string.

Example

The following code example shows how to use an IlvLabel in a simple Java application:
```
  IlvGrapher grapher = new IlvGrapher();
  IlvGraphic node1 = new IlvLabel(new IlvPoint(40,40), "node 1");
  grapher.addNode(node1, true);
  IlvGraphic node2 = new IlvLabel(new IlvPoint(240, 40), "node 2");
  grapher.addNode(node2, true);
  IlvLinkImage link = new IlvLinkImage(node1, node2, true);
  grapher.addLink(link, true);

```

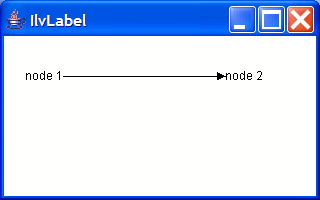

The following image shows the graphic objects created in the code example:

About Graphic Objects

IlvLabel is a custom graphic object, that is, a subclass of IlvGraphic. Graphic objects are controlled using an IlvManager instance and displayed using one or more IlvManagerView instances in a Java Swing application. For information about generic features for graphic objects, see IlvGraphic.
See Also:

IlvPoint, IlvManager, IlvManagerView, Serialized Form

Constructor Summary

Constructors
Constructor and Description
`IlvLabel()` Creates a new `IlvLabel` centered in `(0, 0)` with an empty label.
`IlvLabel(IlvInputStream stream)` Reads the object from an `IlvInputStream`.
`IlvLabel(IlvLabel source)` Creates a new `IlvLabel` by copying an existing one.
`IlvLabel(IlvPoint center, String label)` Creates a new `IlvLabel`.

Method Summary

All Methods Instance Methods Concrete Methods
Modifier and Type	Method and Description
`void`	`applyTransform(IlvTransformer t)` Applies a transformation to the shape of the object.
`void`	`baseTextDirectionChanged(int oldBaseTextDirection, int newBaseTextDirection)` Called when the object is base text direction sensitive and the resolved base text direction has changed.
`IlvRect`	`boundingBox(IlvTransformer t)` Returns the bounding rectangle of the object.
`void`	`componentOrientationChanged(ComponentOrientation oldOri, ComponentOrientation newOri)` Called when the object is component orientation sensitive and the component orientation has changed.
`boolean`	`contains(IlvPoint p, IlvPoint tp, IlvTransformer t)` Tests if a point lies within the outline of the object.
`IlvGraphic`	`copy()` Copies the object.
`void`	`draw(Graphics dst, IlvTransformer t)` Draws the object.
`Shape`	`getCaretShape(IlvTextSelection.Range range, IlvTransformer t)` This function is called to get the shape enveloping the characters specified by the `Range`.
`IlvPoint`	`getCenter()` Returns the center point of the label.
`Font`	`getFont()` Returns the font of the object.
`Color`	`getForeground()` Returns the color of the text.
`String`	`getLabel()` Returns the label.
`IlvRect`	`getLabelBBox(IlvTransformer t)` Returns the bounding area where the label is displayed.
`boolean`	`isAntialiasing()` Returns `true` if the anti-aliasing mode of the label is on.
`boolean`	`isBaseTextDirectionSensitive()` Returns `true` because the bounding box of this object depends on its text direction.
`int`	`lineCount()` Indicates the number of lines.
`int`	`lineOffset(int index)` Returns the character offset for a given line.
`IlvSelection`	`makeSelection()` Creates a selection object for this graphic object.
`int`	`pickCharacter(IlvPoint click, IlvTransformer t)` This function is called when a user is clicking the label to hit-test which character is clicked.
`void`	`setAntialiasing(boolean set)` Changes the anti-aliasing mode of the label.
`void`	`setCenter(IlvPoint center)` Changes the center point of the label.
`void`	`setFont(Font font)` Changes the font of the object.
`void`	`setForeground(Color c)` Changes the color of the text.
`void`	`setLabel(String s)` Changes the label.
`boolean`	`supportMultiline()` Returns `false` since this object does not support multiline text.
`String`	`toString()` Returns a string representation of the graphic object.
`boolean`	`usesBidiMarkers()` Returns `true` if in-place editing implementation uses markers, which should be taken into account in hit-to-point and point-to-hit calculations.
`void`	`write(IlvOutputStream stream)` Writes the object to an `IlvOutputStream`.
`boolean`	`zoomable()` Returns `true` if the object is zoomable.

Methods inherited from class ilog.views.IlvBidiGraphic
calcResolvedBaseTextDirection, getBaseTextDirection, getComponentOrientation, getResolvedBaseTextDirection, getULocale, invalidateBidiCache, setBaseTextDirection, setBaseTextDirection, setBaseTextDirectionDuringConstruction

Methods inherited from class ilog.views.IlvGraphic
addActionListener, addNamedPropertyListener, allViewsRemoved, blinkingStateOn, boundingBox, callDraw, getAndAssociateObjectInteractor, getBlinkingAction, getBlinkingObjectOwner, getBlinkingOffPeriod, getBlinkingOnPeriod, getCenter, getDefaultInteractor, getGraphicBag, GetGraphicObject, getIntersectionWithOutline, getLocale, getName, getNamedProperty, getObjectInteractor, getPopupMenu, getPopupMenu, getPopupMenuName, getProperty, getToolTipBaseTextDirection, getToolTipText, getToolTipText, getTopLevelGraphicBag, getTransferData, getTransferDataFlavors, getZOrderIndex, hasProperty, inside, intersects, invalidateBBoxCache, isComponentOrientationSensitive, isDataFlavorSupported, isEditable, isInApplyToObject, isLocaleSensitive, isMovable, isPersistent, isSelectable, isVisible, localeChanged, move, move, moveResize, needsViewNotification, notifyObjectInteractorToManager, processActionEvent, reDraw, registerBlinkingResource, removeActionListener, removeNamedProperty, removeNamedPropertyListener, removeProperty, replaceProperty, resize, rotate, scale, setBackground, setBlinkingAction, setBlinkingOffPeriod, setBlinkingOnPeriod, setEditable, setFillOn, setGraphicBag, setInApplyToObject, setMovable, setName, setNamedProperty, setNameImpl, setObjectInteractor, setPopupMenu, setPopupMenuName, setProperty, setSelectable, setStrokeOn, setToolTipBaseTextDirection, setToolTipText, setVisible, setZOrderIndex, translate, updateNeedsViewNotification, viewAddedOrRemoved

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

- Constructor Detail
  - IlvLabel
```
public IlvLabel()
```
    Creates a new IlvLabel centered in (0, 0) with an empty label.

    Since:

    JViews 6.0

    See Also:

    IlvLabel(IlvPoint, String)
  - IlvLabel
```
public IlvLabel(IlvPoint center,
                String label)
```
    Creates a new IlvLabel.

    Parameters:

    center - The center of the label.

    label - The label.
  - IlvLabel
```
public IlvLabel(IlvLabel source)
```
    Creates a new IlvLabel by copying an existing one.

    Parameters:

    source - The source label.
  - IlvLabel
```
public IlvLabel(IlvInputStream stream)
         throws IlvReadFileException
```
    Reads the object from an IlvInputStream.

    Parameters:

    stream - The input stream.

    Throws:

    IlvReadFileException - if the format is not correct.
- Method Detail
  - copy
```
public IlvGraphic copy()
```
    Copies the object. This method copies the object by calling the copy constructor.

    Specified by:

    copy in class IlvGraphic

    Returns:

    A copy of the object.

    See Also:

    IlvGraphic
  - setLabel
```
public void setLabel(String s)
```
    Changes the label.

    Specified by:

    setLabel in interface IlvLabelInterface

    Parameters:

    s - The new label.

    See Also:

    getLabel()
  - getLabel
```
public String getLabel()
```
    Returns the label.

    Specified by:

    getLabel in interface IlvLabelInterface

    See Also:

    setLabel(java.lang.String)
  - supportMultiline
```
public boolean supportMultiline()
```
    Returns false since this object does not support multiline text.

    Specified by:

    supportMultiline in interface IlvLabelInterface
  - setCenter
```
public void setCenter(IlvPoint center)
```
    Changes the center point of the label.

    Parameters:

    center - The new center point.
  - getCenter
```
public IlvPoint getCenter()
```
    Returns the center point of the label.
  - isAntialiasing
```
public final boolean isAntialiasing()
```
    Returns true if the anti-aliasing mode of the label is on.
  - setAntialiasing
```
public void setAntialiasing(boolean set)
```
    Changes the anti-aliasing mode of the label. Changing this mode may change the bounding box of the object.
  - draw
```
public void draw(Graphics dst,
                 IlvTransformer t)
```
    Draws the object.

    Specified by:

    draw in class IlvGraphic

    Parameters:

    dst - The destination Graphics.

    t - The transformation used to draw the object.

    See Also:

    IlvGraphic.callDraw(Graphics,IlvTransformer), IlvGraphic.boundingBox(IlvTransformer), IlvGraphic.zoomable(), IlvGraphic
  - zoomable
```
public boolean zoomable()
```
    Returns true if the object is zoomable. Otherwise it returns false.

    Overrides:

    zoomable in class IlvGraphic

    Returns:

    false because this object is not zoomable.

    See Also:

    IlvGraphic, IlvGraphic.draw(java.awt.Graphics, ilog.views.IlvTransformer), IlvGraphic.boundingBox(IlvTransformer), IlvManager
  - boundingBox
```
public IlvRect boundingBox(IlvTransformer t)
```
    Returns the bounding rectangle of the object.

    Specified by:

    boundingBox in class IlvGraphic

    Parameters:

    t - The transformer used to draw the object.

    See Also:

    IlvGraphic.draw(java.awt.Graphics, ilog.views.IlvTransformer), IlvGraphic.zoomable(), IlvGraphic
  - getLabelBBox
```
public IlvRect getLabelBBox(IlvTransformer t)
```
    Returns the bounding area where the label is displayed. The area is the bounding box of the object.

    Specified by:

    getLabelBBox in interface IlvLabelInterface

    Parameters:

    t - The transformer used to draw the object.
  - applyTransform
```
public void applyTransform(IlvTransformer t)
```
    Applies a transformation to the shape of the object. The label is nonzoomable; only the center point will be transformed.

    Specified by:

    applyTransform in class IlvGraphic

    Parameters:

    t - The transformer to be applied.

    See Also:

    IlvGraphic
  - makeSelection
```
public IlvSelection makeSelection()
```
    Creates a selection object for this graphic object. Since JViews 7.5, this function returns an unresizable IlvTextSelection object. Before JViews 7.5, because this object cannot be resized using the interactor, the implementation of this method creates an instance of the class IlvUnresizeableDrawSelection.

    Overrides:

    makeSelection in class IlvGraphic

    Since:

    JViews 5.0

    See Also:

    IlvDrawSelection
  - setForeground
```
public void setForeground(Color c)
```
    Changes the color of the text. This property supports IlvBlinkingColor.

    Overrides:

    setForeground in class IlvGraphic

    Parameters:

    c - The new color.

    See Also:

    getForeground()
  - getForeground
```
public Color getForeground()
```
    Returns the color of the text.

    See Also:

    setForeground(java.awt.Color)
  - setFont
```
public void setFont(Font font)
```
    Changes the font of the object.

    Specified by:

    setFont in interface IlvFontInterface

    Parameters:

    font - The new font.

    See Also:

    getFont()
  - getFont
```
public Font getFont()
```
    Returns the font of the object.

    Specified by:

    getFont in interface IlvFontInterface

    See Also:

    setFont(java.awt.Font)
  - usesBidiMarkers
```
public boolean usesBidiMarkers()
```
    Returns true if in-place editing implementation uses markers, which should be taken into account in hit-to-point and point-to-hit calculations.

    Overrides:

    usesBidiMarkers in class IlvGraphic

    Returns:

    Whether the in-place editing implementation uses markers.

    Since:

    JViews 8.8
  - isBaseTextDirectionSensitive
```
public boolean isBaseTextDirectionSensitive()
```
    Returns true because the bounding box of this object depends on its text direction.

    Overrides:

    isBaseTextDirectionSensitive in class IlvGraphic

    Returns:

    true

    Since:

    JViews 8.8
  - baseTextDirectionChanged
```
public void baseTextDirectionChanged(int oldBaseTextDirection,
                                     int newBaseTextDirection)
```
    Called when the object is base text direction sensitive and the resolved base text direction has changed.

    Overrides:

    baseTextDirectionChanged in class IlvGraphic

    Parameters:

    oldBaseTextDirection - Resolved base text direction of this object before the change.

    newBaseTextDirection - Resolved base text direction of this object after the change.

    Since:

    JViews 8.8

    See Also:

    isBaseTextDirectionSensitive()
  - componentOrientationChanged
```
public void componentOrientationChanged(ComponentOrientation oldOri,
                                        ComponentOrientation newOri)
```
    Called when the object is component orientation sensitive and the component orientation has changed.

    Overrides:

    componentOrientationChanged in class IlvGraphic

    Parameters:

    oldOri - Orientation of this object before the orientation change.

    newOri - Orientation of this object after the orientation change.

    Since:

    JViews 8.8

    See Also:

    IlvGraphic.isComponentOrientationSensitive()
  - write
```
public void write(IlvOutputStream stream)
           throws IOException
```
    Writes the object to an IlvOutputStream. You should not call this method directly; instead, you should use the write methods of the manager.

    Specified by:

    write in interface IlvPersistentObject

    Overrides:

    write in class IlvGraphic

    Parameters:

    stream - The output stream.

    Throws:

    IOException - thrown when an exception occurs during the write operation for this object.
  - toString
```
public String toString()
```
    Returns a string representation of the graphic object. The method returns a string that is the concatenation of the string returned by IlvGraphic.toString() with the label (see getLabel()).

    Overrides:

    toString in class IlvGraphic

    Since:

    JViews 3.5

    See Also:

    IlvGraphic.getName()
  - contains
```
public boolean contains(IlvPoint p,
                        IlvPoint tp,
                        IlvTransformer t)
```
    Tests if a point lies within the outline of the object.

    Overrides:

    contains in class IlvGraphic

    Parameters:

    p - The point to be tested.

    tp - The point p transformed by the transformer t.

    t - The transformation used to draw the object.

    Returns:

    true if the point lies inside this graphic object.

    See Also:

    IlvGraphic
  - getCaretShape
```
public Shape getCaretShape(IlvTextSelection.Range range,
                           IlvTransformer t)
```
    This function is called to get the shape enveloping the characters specified by the Range. The returned shape is used to draw the background of the selected characters. So users can see which characters are selected.
    In case the range is collapsed, this function will return a shape used to render the insertion caret.

    Specified by:

    getCaretShape in interface IlvTextInterface

    Parameters:

    range - The range indicates the selected characters.

    t - The transformer used while drawing the graphic object being edited.

    Returns:

    The shape used to highlight the selected characters.

    Since:

    JViews 7.5
  - pickCharacter
```
public int pickCharacter(IlvPoint click,
                         IlvTransformer t)
```
    This function is called when a user is clicking the label to hit-test which character is clicked.

    Specified by:

    pickCharacter in interface IlvTextInterface

    Parameters:

    click - The position where the mouse is clicked, already transformed by the specified IlvTransformer.

    t - The transformer used while drawing the label.

    Returns:

    The index of the character on which the mouse is clicked. Returns -1, if there is no character there.

    Since:

    JViews 7.5
  - lineCount
```
public int lineCount()
```
    Indicates the number of lines.

    Specified by:

    lineCount in interface IlvTextInterface

    Returns:

    Always 1.

    Since:

    JViews 7.5

    See Also:

    IlvTextInterface.lineOffset(int)
  - lineOffset
```
public int lineOffset(int index)
```
    Returns the character offset for a given line.

    Specified by:

    lineOffset in interface IlvTextInterface

    Parameters:

    index - The line index. The first line in the label has index 0.

    Returns:

    Always 0;

    Since:

    JViews 7.5

    See Also:

    IlvTextInterface.lineCount()

Class IlvLabel

Example

About Graphic Objects

Constructor Summary

Method Summary

Methods inherited from class ilog.views.IlvBidiGraphic

Methods inherited from class ilog.views.IlvGraphic

Methods inherited from class java.lang.Object

Constructor Detail

IlvLabel

IlvLabel

IlvLabel

IlvLabel

Method Detail

copy

setLabel

getLabel

supportMultiline

setCenter

getCenter

isAntialiasing

setAntialiasing

draw

zoomable

boundingBox

getLabelBBox

applyTransform

makeSelection

setForeground

getForeground

setFont

getFont

usesBidiMarkers

isBaseTextDirectionSensitive

baseTextDirectionChanged

componentOrientationChanged

write

toString

contains

getCaretShape

pickCharacter

lineCount

lineOffset
