IlvArc (Rogue Wave JViews 9.0 API)

java.lang.Object
- ilog.views.IlvGraphic
- - ilog.views.graphic.IlvArc

All Implemented Interfaces:

IlvDefinitionRectInterface, IlvPersistentObject, IlvBlinkingObject, IlvBaseTextDirectionInterface, Transferable, Serializable
```
public class IlvArc
extends IlvGraphic
implements IlvDefinitionRectInterface
```
IlvArc defines an arc shape.
Overview

The default arc created when you call IlvArc() has the fill disabled and the stroke enabled. The default color for both is Color.black. You control the arc's fill and stroke by calling setFillOn(boolean), setStrokeOn(boolean) and setForeground(Color), setBackground(Color). Call setAnnulusThickness(double) to draw the annulus of the arc, that is, to draw the arc as a donut shape.

Example

The following code example shows how to use an IlvArc in a simple Java application:
```
   IlvManager manager = new IlvManager();
   IlvArc arc, arcAnnulus;

   //Create new filled arc, change its fill and stroke color, then add it to
   //the manager.
   //This constructor sets the bounding box, start angle, arc angle,
   //fill and stroke for the new IlvArc instance.
   arc = new IlvArc(new IlvRect(30,10,50,50), 40, 150, true, true);
   arc.setBackground(Color.green);
   arc.setForeground(Color.red);
   manager.addObject(arc,true);

   //Create new arc, rotate it and set the annulus.
   arcAnnulus = new IlvArc(new IlvRect(70,40,50,50), 40, 150, true, true);
   IlvPoint arcCenter = arcAnnulus.getCenter(new IlvTransformer());
   arcAnnulus.rotate(arcCenter,65);
   arcAnnulus.setAnnulusThickness(6);
   manager.addObject(arcAnnulus,true);

```

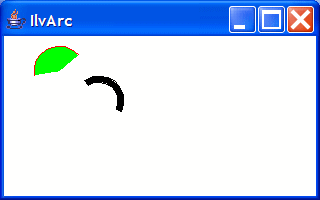

The following image shows the graphic objects created in the code example:

About Graphic Objects

IlvArc is a custom graphic object, that is, a subclass of IlvGraphic. Graphic objects are controlled using an IlvManager instance and displayed using one or more IlvManagerView instances in a Java Swing application. For information about generic features for graphic objects, see IlvGraphic.
See Also:

IlvManager, IlvManagerView, Serialized Form

Field Summary

Fields
Modifier and Type Field and Description

protected IlvRect bbox
The rectangle that contains the ellipse defining the arc.

Fields
Modifier and Type	Field and Description
`protected IlvRect`	`bbox` The rectangle that contains the ellipse defining the arc.

Constructor Summary

Constructors
Constructor and Description
`IlvArc()` Creates an arc with a default definition rect of `(0,0,100,100)` a `0` degree start angle and a `90` degrees range angle.
`IlvArc(IlvArc source)` Creates an arc by copying an existing arc.
`IlvArc(IlvInputStream stream)` Reads the object from an `IlvInputStream`.
`IlvArc(IlvRect rect, double startAngle, double angle)` Creates an arc.
`IlvArc(IlvRect rect, double startAngle, double angle, boolean outlined, boolean filled)` Creates a new `IlvArc`.

Method Summary

All Methods Instance Methods Concrete Methods
Modifier and Type	Method and Description
`void`	`applyTransform(IlvTransformer t)` Applies a transformation to the shape of the object.
`IlvRect`	`boundingBox(IlvTransformer t)` Returns the bounding rectangle of the arc.
`boolean`	`contains(IlvPoint p, IlvPoint tp, IlvTransformer t)` Tests if a point lies within the outline of the arc.
`IlvGraphic`	`copy()` Copies the object.
`void`	`draw(Graphics dst, IlvTransformer t)` Draws the object.
`double`	`getAnnulusThickness()` Returns the thickness of the annulus.
`Color`	`getBackground()` Returns the background color of the `IlvArc`.
`IlvPoint`	`getCenter(IlvTransformer t)` Returns the center point of the graphic object.
`IlvRect`	`getDefinitionRect()` Returns the rectangle that contains the ellipse defining the arc.
`IlvTransformer`	`getDefinitionTransformer()` This function calls `getTransformer()`.
`double`	`getDeltaAngle()` Returns the angle range of the arc, in degrees.
`Color`	`getForeground()` Returns the foreground color of the arc.
`IlvPoint`	`getIntersectionWithOutline(IlvPoint innerPoint, IlvPoint outerPoint, IlvTransformer t)` Returns the intersection of the line segment from inner point to outer point with the shape of the graphic object.
`double`	`getStartAngle()` Returns the start angle of the arc, in degrees.
`IlvTransformer`	`getTransformer()` Gets a copy of the internal transformer of the arc.
`boolean`	`isFillOn()` Returns `true` if the inside of the arc will be filled.
`boolean`	`isStrokeOn()` Returns `true` if the shape of the arc is stroked.
`boolean`	`isTransformerMode()` Returns if the arc is in transformer mode.
`void`	`rotate(IlvPoint center, double angle)` Rotates the arc object.
`void`	`setAnnulusThickness(double annulus)` Specifies the thickness of the annulus.
`void`	`setBackground(Color color)` Changes the background color of the `IlvArc`.
`void`	`setDefinitionRect(IlvRect rect)` Sets the definition rectangle.
`void`	`setDeltaAngle(double delta_angle)` Changes the angle range of the arc.
`void`	`setFillOn(boolean set)` If `true`, specifies that the inside of the arc will be filled.
`void`	`setForeground(Color color)` Changes the foreground color of the arc.
`void`	`setStartAngle(double start_angle)` Changes the start angle of the arc.
`void`	`setStrokeOn(boolean set)` When set to `true`, specifies that the shape of the arc is stroked.
`void`	`setTransformer(IlvTransformer t)` Specifies a new transformer to the arc object.
`void`	`setTransformerMode(boolean enabled)` Enables and disables the transformer mode.
`void`	`symmetry(int axis)` Modifies the arc, by applying a symmetry around the specified axis.
`void`	`write(IlvOutputStream stream)` Writes the object to an `IlvOutputStream`.

Methods inherited from class ilog.views.IlvGraphic
addActionListener, addNamedPropertyListener, allViewsRemoved, baseTextDirectionChanged, blinkingStateOn, boundingBox, callDraw, componentOrientationChanged, getAndAssociateObjectInteractor, getBaseTextDirection, getBlinkingAction, getBlinkingObjectOwner, getBlinkingOffPeriod, getBlinkingOnPeriod, getComponentOrientation, getDefaultInteractor, getGraphicBag, GetGraphicObject, getLocale, getName, getNamedProperty, getObjectInteractor, getPopupMenu, getPopupMenu, getPopupMenuName, getProperty, getResolvedBaseTextDirection, getToolTipBaseTextDirection, getToolTipText, getToolTipText, getTopLevelGraphicBag, getTransferData, getTransferDataFlavors, getULocale, getZOrderIndex, hasProperty, inside, intersects, invalidateBBoxCache, invalidateBidiCache, isBaseTextDirectionSensitive, isComponentOrientationSensitive, isDataFlavorSupported, isEditable, isInApplyToObject, isLocaleSensitive, isMovable, isPersistent, isSelectable, isVisible, localeChanged, makeSelection, move, move, moveResize, needsViewNotification, notifyObjectInteractorToManager, processActionEvent, reDraw, registerBlinkingResource, removeActionListener, removeNamedProperty, removeNamedPropertyListener, removeProperty, replaceProperty, resize, scale, setBaseTextDirection, setBaseTextDirectionDuringConstruction, setBlinkingAction, setBlinkingOffPeriod, setBlinkingOnPeriod, setEditable, setGraphicBag, setInApplyToObject, setMovable, setName, setNamedProperty, setNameImpl, setObjectInteractor, setPopupMenu, setPopupMenuName, setProperty, setSelectable, setToolTipBaseTextDirection, setToolTipText, setVisible, setZOrderIndex, toString, translate, updateNeedsViewNotification, usesBidiMarkers, viewAddedOrRemoved, zoomable

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

- Field Detail
  - bbox
```
protected final IlvRect bbox
```
    The rectangle that contains the ellipse defining the arc.
- Constructor Detail
  - IlvArc
```
public IlvArc()
```
    Creates an arc with a default definition rect of (0,0,100,100) a 0 degree start angle and a 90 degrees range angle.

    Since:

    JViews 6.0

    See Also:

    IlvArc(IlvRect, double, double)
  - IlvArc
```
public IlvArc(IlvRect rect,
              double startAngle,
              double angle)
```
    Creates an arc.

    Parameters:

    rect - The rectangle that contains the ellipse defining the arc.

    startAngle - The start angle of the arc in degrees.

    angle - The range angle of the arc in degrees.
  - IlvArc
```
public IlvArc(IlvRect rect,
              double startAngle,
              double angle,
              boolean outlined,
              boolean filled)
```
    Creates a new IlvArc.

    Parameters:

    rect - The definition rectangle of the arc.

    startAngle - The start angle of the arc in degrees.

    angle - The range angle of the arc in degrees.

    outlined - true if the arc has to be stroked.

    filled - true if the arc has to be filled.

    Since:

    JViews 5.5

    See Also:

    setStrokeOn(boolean), setFillOn(boolean)
  - IlvArc
```
public IlvArc(IlvArc source)
```
    Creates an arc by copying an existing arc.

    Parameters:

    source - The source arc.
  - IlvArc
```
public IlvArc(IlvInputStream stream)
       throws IlvReadFileException
```
    Reads the object from an IlvInputStream.

    Parameters:

    stream - The input stream.

    Throws:

    IlvReadFileException - if the format is not correct.

    IlvReadFileException
- Method Detail
  - copy
```
public IlvGraphic copy()
```
    Copies the object. This method copies the object by calling the copy constructor.

    Specified by:

    copy in class IlvGraphic

    Returns:

    A copy of the object.

    See Also:

    IlvGraphic
  - getDefinitionRect
```
public final IlvRect getDefinitionRect()
```
    Returns the rectangle that contains the ellipse defining the arc.

    Specified by:

    getDefinitionRect in interface IlvDefinitionRectInterface

    Returns:

    The definition rectangle.
  - setDefinitionRect
```
public void setDefinitionRect(IlvRect rect)
```
    Sets the definition rectangle. A copy of the specified rectangle is stored.

    Specified by:

    setDefinitionRect in interface IlvDefinitionRectInterface

    Parameters:

    rect - The new definition rectangle.

    Since:

    JViews 8.0
  - getDefinitionTransformer
```
public IlvTransformer getDefinitionTransformer()
```
    This function calls getTransformer().

    Specified by:

    getDefinitionTransformer in interface IlvDefinitionRectInterface

    Returns:

    null

    Since:

    JViews 8.0

    See Also:

    IlvDefinitionRectInterface
  - getStartAngle
```
public final double getStartAngle()
```
    Returns the start angle of the arc, in degrees.

    See Also:

    setStartAngle(double)
  - setStartAngle
```
public final void setStartAngle(double start_angle)
```
    Changes the start angle of the arc.

    Parameters:

    start_angle - The new angle in degrees.

    See Also:

    getStartAngle()
  - getDeltaAngle
```
public final double getDeltaAngle()
```
    Returns the angle range of the arc, in degrees.

    See Also:

    setDeltaAngle(double)
  - setDeltaAngle
```
public final void setDeltaAngle(double delta_angle)
```
    Changes the angle range of the arc.

    Parameters:

    delta_angle - The new angle in degrees.

    See Also:

    getDeltaAngle()
  - getAnnulusThickness
```
public double getAnnulusThickness()
```
    Returns the thickness of the annulus.

    Since:

    JViews 8.0

    See Also:

    setAnnulusThickness(double)
  - setAnnulusThickness
```
public void setAnnulusThickness(double annulus)
```
    Specifies the thickness of the annulus. When this thickness is 0, a normal arc is drawn and is compatible to previous JViews releases. When the thickness is not zero, an annulus form is defined. This thickness can not be negative.

    Parameters:

    annulus - The thickness of the annulus.

    Since:

    JViews 8.0

    See Also:

    getDefinitionRect()
  - isTransformerMode
```
public final boolean isTransformerMode()
```
    Returns if the arc is in transformer mode. If the transformer mode is enabled, the arc can be transformed (scaled, translated, and rotated).

    Returns:

    true, if the arc is in transformer mode.

    Since:

    JViews 8.0

    See Also:

    setTransformerMode(boolean)
  - setTransformerMode
```
public final void setTransformerMode(boolean enabled)
```
    Enables and disables the transformer mode.

    Parameters:

    enabled - Enables the transformer mode or not.

    Since:

    JViews 8.0

    See Also:

    isTransformerMode()
  - setTransformer
```
public final void setTransformer(IlvTransformer t)
```
    Specifies a new transformer to the arc object. This transformer will apply to the arc while rendering this object. A copy of the specified transformer is stored by the arc object if the parameter is not null. If you specify a null parameter, the internal transformer will be set to null too. This resets the transformation of this arc.
    If the arc object has an internal transformer, that is, the transformer you specify here is not null, when you call the applyTransform(IlvTransformer) method, the specified transformation will apply to the internal transformer.

    Parameters:

    t - The new transformer.

    Since:

    JViews 8.0

    See Also:

    getTransformer(), applyTransform(IlvTransformer)
  - getTransformer
```
public final IlvTransformer getTransformer()
```
    Gets a copy of the internal transformer of the arc. Returns null if there is no internal transformer.

    Returns:

    A copy of the internal transformer of the arc.

    Since:

    JViews 8.0

    See Also:

    setTransformer(IlvTransformer)
  - draw
```
public void draw(Graphics dst,
                 IlvTransformer t)
```
    Draws the object.

    Specified by:

    draw in class IlvGraphic

    Parameters:

    dst - The destination Graphics.

    t - The transformation used to draw the object.

    See Also:

    IlvGraphic.callDraw(Graphics,IlvTransformer), IlvGraphic.boundingBox(IlvTransformer), IlvGraphic.zoomable(), IlvGraphic
  - contains
```
public boolean contains(IlvPoint p,
                        IlvPoint tp,
                        IlvTransformer t)
```
    Tests if a point lies within the outline of the arc.

    Overrides:

    contains in class IlvGraphic

    Parameters:

    p - The point to be tested.

    tp - The point p transformed by the transformer t.

    t - The transformation that was applied to the object when it was drawn.

    Returns:

    true if the point lies inside this graphic object.

    See Also:

    IlvGraphic
  - getIntersectionWithOutline
```
public IlvPoint getIntersectionWithOutline(IlvPoint innerPoint,
                                           IlvPoint outerPoint,
                                           IlvTransformer t)
```
    Returns the intersection of the line segment from inner point to outer point with the shape of the graphic object. This method is used to clip links against the shape of the node. The implementation of this method must be robust with respect to the input points: Even if innerPoint is not inside the graphic object, or if outerPoint is not outside the graphic object, it must return a valid point. For instance, if there is no intersection, it can return the start point.

    Overrides:

    getIntersectionWithOutline in class IlvGraphic

    Parameters:

    innerPoint - A point usually inside the graphic object, given in manager view coordinates.

    outerPoint - A point usually outside of the graphic object, given in manager view coordinates.

    t - The transformation used to draw the object.

    Since:

    JViews 8.1

    See Also:

    IlvClippingLinkConnector
  - boundingBox
```
public IlvRect boundingBox(IlvTransformer t)
```
    Returns the bounding rectangle of the arc.

    Specified by:

    boundingBox in class IlvGraphic

    Parameters:

    t - The transformer used to draw the object.

    See Also:

    IlvGraphic.draw(java.awt.Graphics, ilog.views.IlvTransformer), IlvGraphic.zoomable(), IlvGraphic
  - getCenter
```
public IlvPoint getCenter(IlvTransformer t)
```
    Returns the center point of the graphic object. The returned point can be used as rotation center to rotate the object.

    Overrides:

    getCenter in class IlvGraphic

    Parameters:

    t - The transformer used to draw the object. The value null can be used for the identity transformer.

    Returns:

    The center point of this graphic object. This point can be used as the center point to rotate the object.

    Since:

    JViews 8.0

    See Also:

    IlvGraphic
  - applyTransform
```
public void applyTransform(IlvTransformer t)
```
    Applies a transformation to the shape of the object. If the arc object has no internal transformer, the transformation will apply to the definition of the arc, that is, the start angle or the definition rectangle might be changed. Since JViews 8.0, if the internal transformer exists, that is, the arc is in transformer mode, this method does not change the arc definition and applies the transformation to the internal transformer.

    Specified by:

    applyTransform in class IlvGraphic

    Parameters:

    t - The transformer to be applied.

    See Also:

    setTransformer(IlvTransformer), getTransformer(), setTransformerMode(boolean), isTransformerMode()
  - rotate
```
public void rotate(IlvPoint center,
                   double angle)
```
    Rotates the arc object. The object is rotated around the point specified by center, by an angle in degrees specified by angle.
    If the arc is in transformer mode, this method calls the applyTransform(IlvTransformer) method to perform the rotation.

    Overrides:

    rotate in class IlvGraphic

    Parameters:

    center - The center of the rotation.

    angle - The rotation angle in degrees.

    See Also:

    IlvGraphic, IlvGraphic.applyTransform(IlvTransformer)
  - symmetry
```
public void symmetry(int axis)
```
    Modifies the arc, by applying a symmetry around the specified axis.

    Parameters:

    axis - The axis for the symmetry can be one of IlvConstants.HORIZONTAL_CENTER, IlvConstants.CENTER, or IlvConstants.VERTICAL_CENTER.
  - setForeground
```
public void setForeground(Color color)
```
    Changes the foreground color of the arc. It is the color used to draw the arc. This property supports IlvBlinkingColor.

    Overrides:

    setForeground in class IlvGraphic

    Parameters:

    color - The new foreground color.

    See Also:

    getForeground()
  - getForeground
```
public Color getForeground()
```
    Returns the foreground color of the arc. It is the color used to draw the arc.

    Returns:

    The foreground color of the arc.

    See Also:

    setForeground(java.awt.Color)
  - setBackground
```
public void setBackground(Color color)
```
    Changes the background color of the IlvArc. It is the color used to fill the arc. This property supports IlvBlinkingColor.

    Overrides:

    setBackground in class IlvGraphic

    Parameters:

    color - The new background color.

    Since:

    JViews 5.5

    See Also:

    getBackground()
  - getBackground
```
public Color getBackground()
```
    Returns the background color of the IlvArc. It is the color used to fill the arc.

    Returns:

    The background color of the arc.

    Since:

    JViews 5.5
  - isFillOn
```
public boolean isFillOn()
```
    Returns true if the inside of the arc will be filled.

    Since:

    JViews 5.5

    See Also:

    setFillOn(boolean), setFillOn(boolean)
  - setFillOn
```
public void setFillOn(boolean set)
```
    If true, specifies that the inside of the arc will be filled.

    Overrides:

    setFillOn in class IlvGraphic

    Parameters:

    set - Set to true to enable the fill style for this graphic object.

    Since:

    JViews 5.5

    See Also:

    isFillOn(), setFillOn(boolean)
  - isStrokeOn
```
public boolean isStrokeOn()
```
    Returns true if the shape of the arc is stroked.

    Since:

    JViews 5.5

    See Also:

    setStrokeOn(boolean), setFillOn(boolean)
  - setStrokeOn
```
public void setStrokeOn(boolean set)
```
    When set to true, specifies that the shape of the arc is stroked.

    Overrides:

    setStrokeOn in class IlvGraphic

    Parameters:

    set - Set to true to enable the stroke in your customized graphic object.

    Since:

    JViews 5.5

    See Also:

    isStrokeOn(), setFillOn(boolean)
  - write
```
public void write(IlvOutputStream stream)
           throws IOException
```
    Writes the object to an IlvOutputStream. Note that even if this is a public method, you should not call it directly. You should use the write methods of the manager.

    Specified by:

    write in interface IlvPersistentObject

    Overrides:

    write in class IlvGraphic

    Parameters:

    stream - The output stream.

    Throws:

    IOException - thrown when an exception occurs during the write operation for this object.

Class IlvArc

Overview

Example

About Graphic Objects

Field Summary

Constructor Summary

Method Summary

Methods inherited from class ilog.views.IlvGraphic

Methods inherited from class java.lang.Object

Field Detail

bbox

Constructor Detail

IlvArc

IlvArc

IlvArc

IlvArc

IlvArc

Method Detail

copy

getDefinitionRect

setDefinitionRect

getDefinitionTransformer

getStartAngle

setStartAngle

getDeltaAngle

setDeltaAngle

getAnnulusThickness

setAnnulusThickness

isTransformerMode

setTransformerMode

setTransformer

getTransformer

draw

contains

getIntersectionWithOutline

boundingBox

getCenter

applyTransform

rotate

symmetry

setForeground

getForeground

setBackground

getBackground

isFillOn

setFillOn

isStrokeOn

setStrokeOn

write
