IlvGrapher (Rogue Wave JViews 9.0 API)

java.lang.Object
- ilog.views.IlvGraphic
- - ilog.views.IlvBidiGraphic
  - - ilog.views.IlvManager
    - - ilog.views.IlvGrapher

All Implemented Interfaces:

GraphicBagHierarchyEventReceiver, ManagerViewsHierarchyEventReceiver, IlvGraphicBag, IlvObjectWithSelection, IlvPersistentObject, IlvComponentOrientationAware, IlvULocaleAware, IlvBlinkingObject, IlvBlinkingObjectOwner, IlvBaseTextDirectionInterface, ClipboardOwner, Transferable, Serializable

Direct Known Subclasses:

IltNetwork, IlvHyperGrapher, IlvSubGraphRenderer.SubGrapher
```
public class IlvGrapher
extends IlvManager
```
IlvGrapher is a subclass of IlvManager that uses graphic objects in the form of nodes and links to represent dynamic interconnected information. Application areas include network management, database visualization and knowledge engineering, circuit block diagrams, workflow and process diagrams, organizational charts.
Overview

A grapher is composed of nodes and links. A node is an instance of IlvGraphic or one of its subclasses; any graphic object can be used as a grapher node. A link is an instance of IlvLinkImage or one of its subclasses. Links are the visual representation of connections between nodes.
To add a node to a grapher, call addNode. Links are added by calling addLink. When a node is removed from a grapher, all the links connected to this node are removed.
A new link is connected to the default connection point of each node it is attached to. When the location of a node changes, the connection points of the links are recomputed automatically. For more information about connection points, see Connection Points.

Example

The following code example shows how to connect two nodes in a grapher with a link:
```
  IlvGraphic node1, node2;
  IlvGrapher grapher = new IlvGrapher();
  IlvLinkImage link;

  // Create new ellipse node and add it to the grapher.
  node1 = new IlvEllipse(new IlvRect(30,10,50,50), true, false);
  grapher.addNode(node1,false);

  // Add a new rectangular node to the grapher.
  node2 = new IlvRectangle(new IlvRect(220,80,50,50), false, true);
  grapher.addNode(node2, 2, true);

  // Link the two nodes and add them to a grapher.
  link = new IlvLinkImage(node1, node2, true);
  grapher.addLink(link,false);

  // Add the manager to different views.
  IlvManagerView view = new IlvManagerView(grapher);
  view.setBackground(Color.WHITE);

  JFrame frame = new JFrame("IlvLinkImage");
  frame.setLayout(new BorderLayout(2, 2));
  frame.getContentPane().add(view);
  frame.setSize(320,200);
  frame.setVisible(true);

```

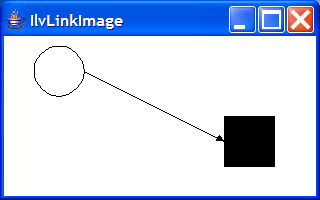

The following image shows the grapher created between in the code example:

Visibility

By default, nodes and links visibility is controlled independently. You can switch on or off the visibility of the nodes and links that compose a branch of a grapher by calling setVisibleBranch(IlvGraphic, int, boolean, boolean). For more information, see Visibility.

Nested Graphers

A grapher embedded inside another manager or grapher, is called a nested grapher. Like top level graphers, a nested grapher can be displayed in several different views simultaneously.
A nested grapher has two different representations:
- expanded, all objects contained in the subgrapher are visible
- collapsed, the grapher is drawn with a collapsed representation
Using nested graphers you can create applications that define graphs containing subgraphs, with links crossing the graph boundaries. Links that cross graph boundaries are called intergraph links. Call getInterGraphLinks() to retrieve the intergraph links stored in this grapher with an origin or destination node in another grapher. Call getExternalInterGraphLinks to retrieve the intergraph links stored in another grapher whose origin or destination node is stored in this grapher.

Events and Interactive Behavior

IlvGrapher is a subclass of IlvManager and inherits all the manager mechanisms for handling user events and supplying interactive behavior. For more information, see Handling Events and Setting Interactive User Information./
See Also:

IlvLinkImage, IlvLinkConnector, Serialized Form

Field Summary
- Fields inherited from class ilog.views.IlvManager
  HH_BLUR, HH_BRIGHTEN, HH_CUSTOM, HH_GRAYSCALE, HH_INVERT_COLORS, HH_NONE, HH_SHARPEN

Constructor Summary

Constructors
Constructor and Description
`IlvGrapher()` Creates a new `IlvGrapher`.
`IlvGrapher(IlvGrapher origin)` Creates a new `IlvGrapher` by copying the specified one.
`IlvGrapher(IlvInputStream stream)` Reads the grapher from an `IlvInputStream`.
`IlvGrapher(int numlayers)` Creates a new `IlvGrapher` with a specified number of layers.
`IlvGrapher(int numlayers, int maxInList)` Creates a new `IlvGrapher`.

Method Summary

All Methods Static Methods Instance Methods Concrete Methods
Modifier and Type	Method and Description
`static void`	`addInterGraphLink(IlvLinkImage link, boolean redraw)` Adds an intergraph link.
`void`	`addLink(IlvLinkImage obj, boolean redraw)` Adds a link to this grapher.
`void`	`addLink(IlvLinkImage obj, int layer, boolean redraw)` Adds a link to this grapher in a specified layer.
`void`	`addNode(IlvGraphic obj, boolean redraw)` Adds a node to the grapher.
`void`	`addNode(IlvGraphic obj, int layer, boolean redraw)` Adds a node to the grapher in the specified layer.
`void`	`addObject(IlvGraphic obj, int layer, boolean redraw)` Adds the specified graphic object in the manager.
`protected void`	`afterTransformDependentObjs(HashSet objs, boolean redraw, boolean ifneeded)` Called from `IlvManager.afterTransform(ilog.views.IlvGraphic, boolean, boolean, boolean, boolean)`.
`protected void`	`afterTransformObj(IlvGraphic obj, boolean redraw, boolean ifneeded, boolean parent, boolean fireEvent)` Called from `IlvManager.afterTransform(ilog.views.IlvGraphic, boolean, boolean, boolean, boolean)`.
`protected void`	`beforeTransformDependentObjs(HashSet objs, boolean redraw, boolean ifneeded)` Called from `IlvManager.afterTransform(ilog.views.IlvGraphic, boolean, boolean, boolean, boolean)`.
`protected void`	`beforeTransformObj(IlvGraphic obj, boolean redraw, boolean ifneeded, boolean parent)` Called from `IlvManager.beforeTransform(ilog.views.IlvGraphic, boolean, boolean, boolean)`.
`IlvGraphic`	`copy()` Creates a new `IlvGrapher` by copying this grapher.
`protected HashSet`	`getBoundingBoxDependentObjects(IlvGraphic obj, boolean includeExternals)` Returns the dependent objects of this object.
`IlvGraphicEnumeration`	`getExternalInterGraphLinks()` Returns the intergraph links whose origin or destination node is stored in this grapher.
`int`	`getExternalInterGraphLinksCount()` Returns the number of intergraph links whose origin or destination node is stored in this grapher.
`IlvGraphicEnumeration`	`getFromNeighbors(IlvGraphic node)` Returns an enumeration of all nodes (`IlvGraphic`) that are the "from neighbors" of `node`.
`IlvGraphicEnumeration`	`getInterGraphLinks()` Returns the intergraph links stored in this grapher.
`int`	`getInterGraphLinksCount()` Returns the number of intergraph links stored in this grapher.
`IlvGraphicEnumeration`	`getLinks(IlvGraphic node)` Returns an enumeration of all the links going from/to a node.
`int`	`getLinksCount(IlvGraphic node)` Returns the number of links going from/to a node.
`IlvGraphicEnumeration`	`getLinksFrom(IlvGraphic node)` Returns an enumeration of all the links originating from a node.
`int`	`getLinksFromCount(IlvGraphic node)` Returns the number of links originating from a node.
`int`	`getLinksInsertionLayer()` Returns the index of the layer where links are inserted when `addLink(IlvLinkImage, boolean)` is called.
`IlvGraphicEnumeration`	`getLinksTo(IlvGraphic node)` Returns an enumeration of all the links going to a node.
`int`	`getLinksToCount(IlvGraphic node)` Returns the number of links going to a node.
`IlvGraphicEnumeration`	`getLinksVisibleFrom(IlvGraphic node)` Returns an enumeration of all the links that have the input node as visible origin node.
`int`	`getLinksVisibleFromCount(IlvGraphic node)` Returns the number of links that have the input node as visible origin node.
`IlvGraphicEnumeration`	`getLinksVisibleTo(IlvGraphic node)` Returns an enumeration of all the links that have the input node as visible destination node.
`int`	`getLinksVisibleToCount(IlvGraphic node)` Returns an enumeration of all the links that have the input node as visible destination node.
`static IlvGrapher`	`getLowestCommonGrapher(IlvGraphic obja, IlvGraphic objb)` Returns the lowest common grapher of two graphic objects or `null` if the two objects do not have a common ancestor.
`IlvGraphicEnumeration`	`getNeighbors(IlvGraphic node)` Returns an enumeration of all nodes (`IlvGraphic`) that are the "neighbors" of `node`.
`IlvGraphicEnumeration`	`getSelectedMovingObjects(boolean[] flags)` Returns the selected objects that should be moved by the select interactor.
`IlvGraphicEnumeration`	`getToNeighbors(IlvGraphic node)` Returns an enumeration of all nodes (`IlvGraphic`) that are the "to neighbors" of `node`.
`IlvGraphicEnumeration`	`getTreeExternalInterGraphLinks()` Returns an enumeration of the nesting tree external intergraph links for this grapher.
`int`	`getTreeExternalInterGraphLinksCount()` Returns the number of nesting tree external intergraph links for this grapher.
`boolean`	`isCrossingAwareLinksFrozen()` Returns whether all crossing aware links of this manager are frozen.
`boolean`	`isInterGraphLink(IlvGraphic obj)` Returns `true` if the object is a link contained in this `IlvGrapher` and if the link is an intergraph link.
`boolean`	`isLink(IlvGraphic obj)` Returns `true` if the object is a link contained in this `IlvGrapher`.
`boolean`	`isLinkBetween(IlvGraphic node1, IlvGraphic node2)` Tests whether a link exists between two nodes.
`boolean`	`isMarked(IlvGraphic obj)` Returns `true` if the object is marked.
`boolean`	`isNode(IlvGraphic obj)` Returns `true` if the object is a node contained in this `IlvGrapher`.
`boolean`	`isNodeOrLink(IlvGraphic obj)` Returns `true` if the object is a node or a link.
`void`	`makeNode(IlvGraphic obj)` Allows a graphic object to become a node of the grapher.
`protected IlvObjectProperty`	`makeObjectProperty(IlvGraphic obj)` Creates the object property for the input object.
`boolean`	`nodeHasSons(IlvGraphic node)` Returns `true` if there are links from the specified node to other nodes.
`void`	`readPrefix(IlvInputStream stream, boolean isSubManager)` Reads properties of the manager.
`void`	`readSuffix(IlvInputStream stream, boolean isSubManager)` Reads properties of the manager.
`void`	`removeLink(IlvLinkImage link, boolean redraw)` Removes a link from the grapher.
`void`	`removeNode(IlvGraphic node, boolean redraw)` Removes a node from the grapher.
`void`	`removeObject(IlvGraphic obj, boolean redraw)` Removes an object from the grapher.
`void`	`replaceObject(IlvGraphic oldObject, IlvGraphic newObject, boolean redraw)` This method overrides the `replaceObject` method of `IlvManager` to take node and link properties into account.
`void`	`setCrossingAwareLinksFrozen(boolean flag)` Marks that all crossing aware links of this manager are frozen.
`void`	`setLayer(IlvGraphic obj, int newLayer, boolean redraw)` Changes the layer of a graphic object.
`void`	`setLinksInsertionLayer(int layer)` Sets the index of the layer where links are inserted when `addLink(IlvLinkImage, boolean)` is called.
`void`	`setMarked(IlvGraphic obj, boolean value)` Marks or unmarks an object.
`void`	`setVisibleBranch(IlvGraphic node, boolean visible, boolean origin)` Shows or hides a branch that originates from or has as destination the input `node`.
`void`	`setVisibleBranch(IlvGraphic node, int level, boolean visible, boolean origin)` Shows or hides a branch that originates from or has as destination the input `node`, starting at `level` levels away from `node`.
`void`	`setVisibleBranch(IlvGraphic node, int startLevel, int endLevel, boolean visible, boolean origin, boolean includeIntergraphLinks, boolean includeTreeExtIntergraphLinks)` Shows or hides a branch that originates from or has as destination the input `node`, starting at `startLevel` levels away from `node` until at `endLevel` levels away.
`void`	`unmakeNode(IlvGraphic obj)` Allows a graphic object that was added as a node to become a regular object.
`void`	`write(IlvOutputStream stream)` Stores the contents of the manager to an `IlvOutputStream`.
`void`	`writePrefix(IlvOutputStream stream, boolean isSubManager)` Writes properties of the manager.
`void`	`writeSuffix(IlvOutputStream stream, boolean isSubManager)` Writes properties of the manager.

Methods inherited from class ilog.views.IlvManager
abortReDraws, addAccelerator, addGraphicBagHierarchyListener, addLayer, addLayer, addManagerContentChangedListener, addManagerExpansionListener, addManagerLayerListener, addManagerSelectionListener, addManagerTreeContentChangedListener, addManagerTreeSelectionListener, addManagerViewsHierarchyListener, addManagerViewsListener, addObject, afterInvalidateRegion, afterTransform, allowMoving, applyToObject, applyToObjects, applyToObjects, applyToObjects, applyToObjects, applyTransform, baseTextDirectionChanged, beforeInvalidateRegion, beforeTransform, blinkingReDraw, boundingBox, check, componentOrientationChanged, computeBBox, computeBBox, contains, containsFrame, contentsChanged, copySelection, createInputStream, createManagerLayer, createOutputStream, deleteAll, deleteAll, deleteSelections, deleteSelections, deSelectAll, deSelectAll, deSelectAll, dispatchToObjects, draw, draw, duplicateSelections, duplicateSelections, enableGraphicBagHierarchyEventForwarding, enableManagerViewsHierarchyEventForwarding, fireGraphicBagHierarchyEvent, fireManagerViewsHierarchyEvent, getAccelerators, getAllObjects, getAllObjects, getAllSelectableObjects, getCardinal, getCardinal, getCardinal, getCollapsedGraphic, getCollapseExpandObject, getComponentOrientation, getDrawingTransformer, getFileName, getFrame, getHoverHighlightingImageOperation, getHoverHighlightingMode, getInsertionLayer, getIntersectionWithOutline, getLayer, getLayer, getLayerName, getLayersCount, getManagerLayer, getManagerLayer, getManagerLayer, getManagers, getManagers, getManagersCount, getManagersCount, getObject, getObject, getObject, getObject, getObjectInteractor, getObjectName, getObjectProperty, getObjects, getObjects, getObjects, getOptimizedLayerThreshold, getParent, getProperty, getSelectableObject, getSelectedObjects, getSelectedObjects, getSelectedObjects, getSelectedObjectsCount, getSelectedObjectsCount, getSelectedObjectsCount, getSelection, getSelection, getSelection, getSelectionFactory, getSelections, getSizeLimitToDrawSubmanagerContents, getStoredComponentOrientation, getStoredULocale, getStreamFactory, getTopLevelTransformer, getTransformer, getTreeLock, getULocale, getUserData, getViews, handleAccelerators, hasProperty, init, initReDraws, invalidateRegion, invalidateRegion, invalidateRegion, isAutoLabelForCollapsedGraphic, isBaseTextDirectionSensitive, isCollapsed, isCollapsible, isComponentOrientationSensitive, isContentsAdjusting, isDebugBoundingBoxes, isEditable, isInsertionAdjusting, isInvalidating, isKeepingAspectRatio, isLocaleSensitive, isManaged, isMovable, isSelectable, isSelectable, isSelected, isSelectionAdjusting, isSelectionInvariantSubManagerBounds, isVisible, isVisible, isVisible, isVisible, localeChanged, lostOwnership, map, map, mapInside, mapInside, mapIntersects, mapIntersects, moveObject, moveResize, needsDrawSubmanagerContents, needsGraphicBagHierarchyEvent, needsManagerViewsHierarchyEvent, objectIsSelectable, objectRemoved, pasteSelection, print, processEvent, processEvent, processHoverHighlightingEvent, processHoverHighlightingEvent, read, read, read, reDraw, reDrawObj, reDrawRegion, reDrawViews, removeAccelerator, removeGraphicBagHierarchyListener, removeLayer, removeManagerContentChangedListener, removeManagerExpansionListener, removeManagerLayerListener, removeManagerSelectionListener, removeManagerTreeContentChangedListener, removeManagerTreeSelectionListener, removeManagerViewsHierarchyListener, removeManagerViewsListener, removeProperty, replaceProperty, reshapeObject, selectAll, selectAll, selectAll, selectionChanged, setAccelerators, setAutoLabelForCollapsedGraphic, setBaseTextDirection, setCollapsed, setCollapsedGraphic, setComponentOrientation, setComponentOrientation, setContentsAdjusting, setContentsAdjusting, setDebugBoundingBoxes, setDebugBoundingBoxesGlobal, setEditable, setFileName, setFrame, setGraphicBag, setHoverHighlightingImageOperation, setHoverHighlightingMode, setInsertionAdjusting, setInsertionLayer, setKeepingAspectRatio, setLayerName, setMovable, setNameImpl, setNumberOfLayer, setObjectInteractor, setObjectName, setOptimizedLayerThreshold, setProperty, setSelectable, setSelectable, setSelected, setSelected, setSelectionAdjusting, setSelectionEventSource, setSelectionFactory, setSelectionInvariantSubManagerBounds, setSizeLimitToDrawSubmanagerContents, setStreamFactory, setTransformer, setULocale, setULocale, setUserData, setVisible, setVisible, setVisible, shortCut, swapLayers, translateObjects, translateSelections, viewAdded, viewRemoved, write, write, write, write, writeIt, zoomable

Methods inherited from class ilog.views.IlvBidiGraphic
calcResolvedBaseTextDirection, getBaseTextDirection, getResolvedBaseTextDirection, invalidateBidiCache, setBaseTextDirection, setBaseTextDirectionDuringConstruction

Methods inherited from class ilog.views.IlvGraphic
addActionListener, addNamedPropertyListener, allViewsRemoved, blinkingStateOn, boundingBox, callDraw, getAndAssociateObjectInteractor, getBlinkingAction, getBlinkingObjectOwner, getBlinkingOffPeriod, getBlinkingOnPeriod, getCenter, getDefaultInteractor, getGraphicBag, GetGraphicObject, getLocale, getName, getNamedProperty, getObjectInteractor, getPopupMenu, getPopupMenu, getPopupMenuName, getToolTipBaseTextDirection, getToolTipText, getToolTipText, getTopLevelGraphicBag, getTransferData, getTransferDataFlavors, getZOrderIndex, inside, intersects, invalidateBBoxCache, isDataFlavorSupported, isEditable, isInApplyToObject, isMovable, isPersistent, isSelectable, isVisible, makeSelection, move, move, needsViewNotification, notifyObjectInteractorToManager, processActionEvent, registerBlinkingResource, removeActionListener, removeNamedProperty, removeNamedPropertyListener, resize, rotate, scale, setBackground, setBlinkingAction, setBlinkingOffPeriod, setBlinkingOnPeriod, setEditable, setFillOn, setForeground, setInApplyToObject, setMovable, setName, setNamedProperty, setObjectInteractor, setPopupMenu, setPopupMenuName, setSelectable, setStrokeOn, setToolTipBaseTextDirection, setToolTipText, setVisible, setZOrderIndex, toString, translate, updateNeedsViewNotification, usesBidiMarkers, viewAddedOrRemoved

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface ilog.views.IlvGraphicBag
getGraphicBag

- Constructor Detail
  - IlvGrapher
```
public IlvGrapher()
```
    Creates a new IlvGrapher. By default the grapher has 2 layers.
  - IlvGrapher
```
public IlvGrapher(int numlayers)
```
    Creates a new IlvGrapher with a specified number of layers.

    Parameters:

    numlayers - The number of layers.
  - IlvGrapher
```
public IlvGrapher(int numlayers,
                  int maxInList)
```
    Creates a new IlvGrapher.

    Parameters:

    numlayers - The number of layers.

    maxInList - The number of objects before using the quadtree.
  - IlvGrapher
```
public IlvGrapher(IlvInputStream stream)
           throws IOException,
                  IlvReadFileException
```
    Reads the grapher from an IlvInputStream. You should not call this method directly. To read an IVL formatted file, use the setFileName or read methods of the superclass. This method is used only to read a grapher used as a graphic object inside another manager.

    Throws:

    IOException

    IlvReadFileException

    Since:

    JViews 5.0
  - IlvGrapher
```
public IlvGrapher(IlvGrapher origin)
```
    Creates a new IlvGrapher by copying the specified one.

    Parameters:

    origin - The grapher to copy.

    Since:

    JViews 5.0

    See Also:

    copy()
- Method Detail
  - copy
```
public IlvGraphic copy()
```
    Creates a new IlvGrapher by copying this grapher.

    Overrides:

    copy in class IlvManager

    Returns:

    A new IlvGrapher instance.

    Since:

    JViews 5.0

    See Also:

    IlvGraphic
  - write
```
public void write(IlvOutputStream stream)
           throws IOException
```
    Stores the contents of the manager to an IlvOutputStream. You should not call this method directly. This method is public for implementation purposes.

    Specified by:

    write in interface IlvPersistentObject

    Overrides:

    write in class IlvManager

    Parameters:

    stream - The output stream to write this graphic object to.

    Throws:

    IOException - thrown when an exception occurs during the write operation for this object.
  - writePrefix
```
public void writePrefix(IlvOutputStream stream,
                        boolean isSubManager)
                 throws IOException
```
    Writes properties of the manager. You should not call this method directly. This method is public for implementation purposes.

    Overrides:

    writePrefix in class IlvManager

    Throws:

    IOException

    Since:

    JViews 8.8
  - writeSuffix
```
public void writeSuffix(IlvOutputStream stream,
                        boolean isSubManager)
                 throws IOException
```
    Writes properties of the manager. You should not call this method directly. This method is public for implementation purposes.

    Overrides:

    writeSuffix in class IlvManager

    Throws:

    IOException

    Since:

    JViews 8.8
  - readPrefix
```
public void readPrefix(IlvInputStream stream,
                       boolean isSubManager)
                throws IOException,
                       IlvReadFileException
```
    Reads properties of the manager. You should not call this method directly. This method is public for implementation purposes.

    Overrides:

    readPrefix in class IlvManager

    Throws:

    IOException

    IlvReadFileException

    Since:

    JViews 8.8
  - readSuffix
```
public void readSuffix(IlvInputStream stream,
                       boolean isSubManager)
                throws IOException,
                       IlvReadFileException
```
    Reads properties of the manager. You should not call this method directly. This method is public for implementation purposes.

    Overrides:

    readSuffix in class IlvManager

    Throws:

    IOException

    IlvReadFileException

    Since:

    JViews 8.8
  - addObject
```
public void addObject(IlvGraphic obj,
                      int layer,
                      boolean redraw)
```
    Adds the specified graphic object in the manager. Note that a graphic object can be added to one manager only.
    When an object is added, the manager fires a ManagerContentChangedEvent event.

    Overrides:

    addObject in class IlvManager

    Parameters:

    obj - The object to be added.

    layer - The layer where the object should be inserted. Note that if the manager does not have a layer that corresponds to this index, the manager automatically increases the number of layers by calling setNumberOfLayer.

    redraw - If true, the object is redrawn.

    See Also:

    IlvManager.addObject(ilog.views.IlvGraphic, boolean), removeObject(ilog.views.IlvGraphic, boolean), IlvManager.setNumberOfLayer(int), setLayer(IlvGraphic, int, boolean)
  - addNode
```
public void addNode(IlvGraphic obj,
                    boolean redraw)
```
    Adds a node to the grapher. The node is added in the node insertion layer.

    Parameters:

    obj - The node.

    redraw - If true, the object is drawn.

    See Also:

    addNode(ilog.views.IlvGraphic, int, boolean), removeNode(ilog.views.IlvGraphic, boolean), IlvManager.getInsertionLayer(), setLayer(IlvGraphic, int, boolean)
  - addNode
```
public void addNode(IlvGraphic obj,
                    int layer,
                    boolean redraw)
```
    Adds a node to the grapher in the specified layer.

    Parameters:

    obj - The node.

    layer - The index of the layer where the node is to be added.

    redraw - If true, the object is drawn.

    See Also:

    addNode(ilog.views.IlvGraphic, boolean), removeNode(ilog.views.IlvGraphic, boolean), setLayer(IlvGraphic, int, boolean)
  - addLink
```
public void addLink(IlvLinkImage obj,
                    boolean redraw)
```
    Adds a link to this grapher. The link is added in the links insertion layer.
    Note: Before adding a link, the origin and destination nodes for the link must already exist. These nodes must be contained either in this IlvGrapher instance or one of its subgraphs. They must have been added using the addNode(ilog.views.IlvGraphic, boolean) method.

    Parameters:

    obj - The link.

    redraw - If true, the object is drawn.

    See Also:

    getLinksInsertionLayer(), addLink(ilog.views.IlvLinkImage, int, boolean), removeLink(ilog.views.IlvLinkImage, boolean), addInterGraphLink(ilog.views.IlvLinkImage, boolean), setLayer(IlvGraphic, int, boolean)
  - addLink
```
public void addLink(IlvLinkImage obj,
                    int layer,
                    boolean redraw)
```
    Adds a link to this grapher in a specified layer.
    Note: Before adding a link, the origin and destination nodes for the link must already exist. These nodes must be contained either in this IlvGrapher instance or one of its subgraphs. They must have been added using the addNode(ilog.views.IlvGraphic, boolean) method.

    Parameters:

    obj - The link.

    layer - The index of the layer where the node is added.

    redraw - If true, the object is drawn.

    See Also:

    addLink(ilog.views.IlvLinkImage, boolean), removeLink(ilog.views.IlvLinkImage, boolean), addInterGraphLink(ilog.views.IlvLinkImage, boolean), setLayer(IlvGraphic, int, boolean)
  - getExternalInterGraphLinks
```
public final IlvGraphicEnumeration getExternalInterGraphLinks()
```
    Returns the intergraph links whose origin or destination node is stored in this grapher. The link itself is not stored in this grapher.

    Since:

    JViews 5.0

    See Also:

    addInterGraphLink(ilog.views.IlvLinkImage, boolean), getExternalInterGraphLinksCount()
  - getExternalInterGraphLinksCount
```
public final int getExternalInterGraphLinksCount()
```
    Returns the number of intergraph links whose origin or destination node is stored in this grapher. The link itself is not stored in this grapher.

    Since:

    JViews 5.0

    See Also:

    getExternalInterGraphLinks()
  - getTreeExternalInterGraphLinks
```
public final IlvGraphicEnumeration getTreeExternalInterGraphLinks()
```
    Returns an enumeration of the nesting tree external intergraph links for this grapher.
    Each link in the enumeration has one node inside and one node outside the grapher nesting tree. That is, the inside node is in this grapher or in a subgrapher nested within this grapher, and the outside node is neither in this grapher nor any nested subgraphers. The link is not stored in this grapher.

    Since:

    JViews 7.5

    See Also:

    addInterGraphLink(ilog.views.IlvLinkImage, boolean), getTreeExternalInterGraphLinksCount()
  - getTreeExternalInterGraphLinksCount
```
public final int getTreeExternalInterGraphLinksCount()
```
    Returns the number of nesting tree external intergraph links for this grapher.
    Each link counted has one node inside and one node outside the grapher nesting tree. That is, the inside node is in this grapher or in a subgrapher nested within this grapher, and the outside node is neither in this grapher nor any nested subgraphers. The link is not stored in this grapher.

    Since:

    JViews 7.5

    See Also:

    addInterGraphLink(ilog.views.IlvLinkImage, boolean), getTreeExternalInterGraphLinks()
  - getInterGraphLinks
```
public final IlvGraphicEnumeration getInterGraphLinks()
```
    Returns the intergraph links stored in this grapher. An intergraph link has its origin or destination node stored in another grapher.

    Since:

    JViews 5.0

    See Also:

    getInterGraphLinksCount(), isInterGraphLink(ilog.views.IlvGraphic), addInterGraphLink(ilog.views.IlvLinkImage, boolean)
  - getInterGraphLinksCount
```
public final int getInterGraphLinksCount()
```
    Returns the number of intergraph links stored in this grapher. An intergraph link has its origin or destination node stored in another grapher.

    Since:

    JViews 5.0

    See Also:

    getInterGraphLinks(), isInterGraphLink(ilog.views.IlvGraphic), addInterGraphLink(ilog.views.IlvLinkImage, boolean)
  - addInterGraphLink
```
public static void addInterGraphLink(IlvLinkImage link,
                                     boolean redraw)
```
    Adds an intergraph link. This method allows you to add a link in a grapher when the origin and destination nodes of the link are not in the same grapher. This methods adds the specified link in the lowest common grapher of the grapher hierarchy of the destination and origin nodes of the link.

    Parameters:

    link - The link to add.

    redraw - If true, the link will be drawn.

    Since:

    JViews 5.0

    See Also:

    getLowestCommonGrapher(ilog.views.IlvGraphic, ilog.views.IlvGraphic), getExternalInterGraphLinks(), addLink(ilog.views.IlvLinkImage, boolean), isInterGraphLink(ilog.views.IlvGraphic)
  - getLowestCommonGrapher
```
public static IlvGrapher getLowestCommonGrapher(IlvGraphic obja,
                                                IlvGraphic objb)
```
    Returns the lowest common grapher of two graphic objects or null if the two objects do not have a common ancestor.

    Parameters:

    obja - The first graphic object.

    objb - The second graphic object.

    Since:

    JViews 5.0

    See Also:

    IlvManager.getParent()
  - removeObject
```
public void removeObject(IlvGraphic obj,
                         boolean redraw)
```
    Removes an object from the grapher. This method calls removeNode if the object is a node and removeLink if the object is a link.
    The specified object must have been previously added by addObject, addNode, or addLink; otherwise, an exception is thrown.
    When an object is removed, the grapher fires a ManagerContentChangedEvent event.
    Note: It is not allowed to remove graphic objects while browsing the enumeration returned by the methods IlvManager.getObjects(), IlvManager.getObjects(int), getLinksFrom(ilog.views.IlvGraphic), getLinksTo(ilog.views.IlvGraphic), getLinks(ilog.views.IlvGraphic), and getNeighbors(ilog.views.IlvGraphic).

    Specified by:

    removeObject in interface IlvGraphicBag

    Overrides:

    removeObject in class IlvManager

    Parameters:

    obj - The graphic object to remove.

    redraw - If true, the area where the object was located is redrawn.

    See Also:

    removeNode(ilog.views.IlvGraphic, boolean), removeLink(ilog.views.IlvLinkImage, boolean), setLayer(IlvGraphic, int, boolean)
  - removeLink
```
public void removeLink(IlvLinkImage link,
                       boolean redraw)
```
    Removes a link from the grapher.
    Note: It is not allowed to remove links while browsing the enumeration returned by the methods IlvManager.getObjects(), IlvManager.getObjects(int), getLinksFrom(ilog.views.IlvGraphic), getLinksTo(ilog.views.IlvGraphic), and getLinks(ilog.views.IlvGraphic).

    Parameters:

    link - The link to remove.

    redraw - If true, the area where the link was located is redrawn

    See Also:

    addLink(ilog.views.IlvLinkImage, boolean), addLink(ilog.views.IlvLinkImage, int, boolean), setLayer(IlvGraphic, int, boolean)
  - removeNode
```
public void removeNode(IlvGraphic node,
                       boolean redraw)
```
    Removes a node from the grapher. All links from and to this node are also removed.
    Note: It is not allowed to remove graphic objects while browsing the enumeration returned by the methods IlvManager.getObjects(), IlvManager.getObjects(int), and getNeighbors(ilog.views.IlvGraphic).

    Parameters:

    node - The node to remove.

    redraw - If true, the area where the node was located is redrawn.

    See Also:

    addNode(ilog.views.IlvGraphic, int, boolean), addNode(ilog.views.IlvGraphic, boolean), setLayer(IlvGraphic, int, boolean)
  - getLinksInsertionLayer
```
public final int getLinksInsertionLayer()
```
    Returns the index of the layer where links are inserted when addLink(IlvLinkImage, boolean) is called. If setLinksInsertionLayer(int) has never been called or was set to -1, this method returns the same value as IlvManager.getInsertionLayer().

    Returns:

    The default link insertion layer.

    Since:

    JViews 6.5

    See Also:

    setLinksInsertionLayer(int), addLink(ilog.views.IlvLinkImage,boolean), IlvManager.setInsertionLayer(int)
  - setLinksInsertionLayer
```
public final void setLinksInsertionLayer(int layer)
```
    Sets the index of the layer where links are inserted when addLink(IlvLinkImage, boolean) is called. If layer is set to -1, the result of IlvManager.getInsertionLayer() is used when inserting links.

    Parameters:

    layer - The insertion layer.

    Since:

    JViews 6.5

    See Also:

    getLinksInsertionLayer(), addLink(ilog.views.IlvLinkImage,boolean), IlvManager.getInsertionLayer()
  - setLayer
```
public void setLayer(IlvGraphic obj,
                     int newLayer,
                     boolean redraw)
```
    Changes the layer of a graphic object.
    The grapher fires a ManagerContentChangedEvent event.
    Using this method, the nodes keep their IlvLinkConnector. (if any), and the links keep their origin and destination nodes.
    Note that it is not allowed to change the layer of graphic objects while browsing the enumeration returned by IlvManager.getObjects() or IlvManager.getObjects(int).

    Overrides:

    setLayer in class IlvManager

    Parameters:

    obj - The graphic object.

    newLayer - The index of the new layer. This layer must exist; otherwise, an IllegalArgumentException is thrown.

    redraw - If true, the object is redrawn.

    See Also:

    IlvManager.getLayer(ilog.views.IlvGraphic), IlvManager.getManagerLayer(ilog.views.IlvGraphic)
  - replaceObject
```
public void replaceObject(IlvGraphic oldObject,
                          IlvGraphic newObject,
                          boolean redraw)
```
    This method overrides the replaceObject method of IlvManager to take node and link properties into account. The replaced node will keep the IlvLinkConnector of the previous node. The replaced link will keep the origin and destination nodes of the previous link.

    Overrides:

    replaceObject in class IlvManager

    Parameters:

    oldObject - The old object.

    newObject - The new object.

    redraw - If true, the objects are redrawn.
  - getLinksFrom
```
public final IlvGraphicEnumeration getLinksFrom(IlvGraphic node)
```
    Returns an enumeration of all the links originating from a node.

    Parameters:

    node - The node.

    See Also:

    getLinksFromCount(ilog.views.IlvGraphic), getLinksTo(ilog.views.IlvGraphic)
  - getLinksFromCount
```
public final int getLinksFromCount(IlvGraphic node)
```
    Returns the number of links originating from a node.

    Parameters:

    node - The node.

    See Also:

    getLinksFrom(ilog.views.IlvGraphic)
  - getLinksTo
```
public final IlvGraphicEnumeration getLinksTo(IlvGraphic node)
```
    Returns an enumeration of all the links going to a node. The method returns null if there are no links.

    Parameters:

    node - The node.

    See Also:

    getLinksToCount(ilog.views.IlvGraphic), getLinksFrom(ilog.views.IlvGraphic)
  - getLinksToCount
```
public final int getLinksToCount(IlvGraphic node)
```
    Returns the number of links going to a node.

    Parameters:

    node - The node.

    See Also:

    getLinksTo(ilog.views.IlvGraphic)
  - getLinks
```
public final IlvGraphicEnumeration getLinks(IlvGraphic node)
```
    Returns an enumeration of all the links going from/to a node.

    Parameters:

    node - The node.

    See Also:

    getLinksCount(ilog.views.IlvGraphic), getLinksTo(ilog.views.IlvGraphic), getLinksFrom(ilog.views.IlvGraphic)
  - getLinksCount
```
public final int getLinksCount(IlvGraphic node)
```
    Returns the number of links going from/to a node.

    Parameters:

    node - The node.

    See Also:

    getLinks(ilog.views.IlvGraphic), getLinksToCount(ilog.views.IlvGraphic), getLinksFromCount(ilog.views.IlvGraphic)
  - getNeighbors
```
public final IlvGraphicEnumeration getNeighbors(IlvGraphic node)
```
    Returns an enumeration of all nodes (IlvGraphic) that are the "neighbors" of node. That is, the nodes that have a common link (IlvLinkImage) with node.
    Note: The same "neighbor" node will be returned by the method nextElement an equal number of times to the number of links between node and this neighbor.

    See Also:

    getFromNeighbors(IlvGraphic), getToNeighbors(IlvGraphic)
  - getFromNeighbors
```
public final IlvGraphicEnumeration getFromNeighbors(IlvGraphic node)
```
    Returns an enumeration of all nodes (IlvGraphic) that are the "from neighbors" of node. That is, the nodes that have a common link (IlvLinkImage) with node, where node is the origin of the link.
    Note: The same "neighbor" node is returned by the method nextElement an equal number of times to the number of links between node and this neighbor that has the appropriate orientation.

    Since:

    JViews 8.0

    See Also:

    getNeighbors(IlvGraphic), getToNeighbors(IlvGraphic)
  - getToNeighbors
```
public final IlvGraphicEnumeration getToNeighbors(IlvGraphic node)
```
    Returns an enumeration of all nodes (IlvGraphic) that are the "to neighbors" of node. That is, the nodes that have a common link (IlvLinkImage) with node, where node is the destination of the link.
    Note: The same "neighbor" node is returned by the method nextElement an equal number of times to the number of links between node and this neighbor that has the appropriate orientation.

    Since:

    JViews 8.0

    See Also:

    getNeighbors(IlvGraphic), getFromNeighbors(IlvGraphic)
  - getLinksVisibleFrom
```
public final IlvGraphicEnumeration getLinksVisibleFrom(IlvGraphic node)
```
    Returns an enumeration of all the links that have the input node as visible origin node. This means, link.getVisibleFrom() == node.
    Some links on the screen appear to be connected to the input origin node when the input node is a collapsed grapher. In reality, the connection is not to the collapsed grapher but to a node currently invisible nested inside the collapsed grapher. Hence, this method returns all links that are really connected to the origin node, and additionally all links that appear visually connected to this origin node if it is a collapsed grapher.
    To be precise: this method returns all non-intergraph links starting from the input origin node. Furthermore it returns all intergraph links starting from the input origin node that don't go beyond the border of any collapsed grapher. Furthermore, if the input node is a collapsed grapher, it returns all tree external intergraph links of the collapsed grapher that don't go beyond the border of any other collapsed grapher. Going beyond the border of a collapsed grapher means that the node is recursively nested in subgraphers, one of these subgraphers is collapsed and the destination node of the link is not nested inside, hence outside the collapsed grapher.

    Parameters:

    node - The origin node.

    Since:

    JViews 7.5

    See Also:

    getLinksVisibleFromCount(ilog.views.IlvGraphic), getLinksFrom(ilog.views.IlvGraphic), isInterGraphLink(ilog.views.IlvGraphic), getTreeExternalInterGraphLinks(), IlvLinkImage.getVisibleFrom()
  - getLinksVisibleFromCount
```
public final int getLinksVisibleFromCount(IlvGraphic node)
```
    Returns the number of links that have the input node as visible origin node. This means, link.getVisibleFrom() == node.

    Parameters:

    node - The origin node.

    Since:

    JViews 7.5

    See Also:

    getLinksVisibleFrom(ilog.views.IlvGraphic), IlvLinkImage.getVisibleFrom()
  - getLinksVisibleTo
```
public final IlvGraphicEnumeration getLinksVisibleTo(IlvGraphic node)
```
    Returns an enumeration of all the links that have the input node as visible destination node. This means, link.getVisibleTo() == node.
    Some links on the screen appear to be connected to the input destination node when the input node is a collapsed grapher. In reality, the connection is not to the collapsed grapher but to a node currently invisible nested inside the collapsed grapher. Hence, this method returns all links that are really connected to the destination node, and additionally all links that appear visually connected to this destination node if it is a collapsed grapher.
    To be precise: this method returns all non-intergraph links ending at the input destination node. Furthermore it returns all intergraph links ending at the input destination node that don't go beyond the border of any collapsed grapher. Furthermore, if the input node is a collapsed grapher, it returns all tree external intergraph links of the collapsed grapher that don't go beyond the border of any other collapsed grapher. Going beyond the border of a collapsed grapher means that the node is recursively nested in subgraphers, one of these subgraphers is collapsed and the origin node of the link is not nested inside, hence outside the collapsed grapher.

    Parameters:

    node - The destination node.

    Since:

    JViews 7.5

    See Also:

    getLinksVisibleToCount(ilog.views.IlvGraphic), getLinksTo(ilog.views.IlvGraphic), isInterGraphLink(ilog.views.IlvGraphic), getTreeExternalInterGraphLinks(), IlvLinkImage.getVisibleTo()
  - getLinksVisibleToCount
```
public final int getLinksVisibleToCount(IlvGraphic node)
```
    Returns an enumeration of all the links that have the input node as visible destination node. This means, link.getVisibleTo() == node.

    Parameters:

    node - The destination node.

    Since:

    JViews 7.5

    See Also:

    getLinksVisibleTo(ilog.views.IlvGraphic), IlvLinkImage.getVisibleTo()
  - isNode
```
public final boolean isNode(IlvGraphic obj)
```
    Returns true if the object is a node contained in this IlvGrapher.

    Parameters:

    obj - The graphic object to test.

    See Also:

    isLink(ilog.views.IlvGraphic), isNodeOrLink(ilog.views.IlvGraphic)
  - isLink
```
public final boolean isLink(IlvGraphic obj)
```
    Returns true if the object is a link contained in this IlvGrapher.

    Parameters:

    obj - The graphic object to test.

    See Also:

    isInterGraphLink(ilog.views.IlvGraphic), isNode(ilog.views.IlvGraphic), isNodeOrLink(ilog.views.IlvGraphic)
  - isNodeOrLink
```
public final boolean isNodeOrLink(IlvGraphic obj)
```
    Returns true if the object is a node or a link.

    Parameters:

    obj - The graphic object to test.

    Since:

    JViews 3.0

    See Also:

    isNode(ilog.views.IlvGraphic), isLink(ilog.views.IlvGraphic)
  - isInterGraphLink
```
public final boolean isInterGraphLink(IlvGraphic obj)
```
    Returns true if the object is a link contained in this IlvGrapher and if the link is an intergraph link. A link is an intergraph link if the origin or destination node is not in this grapher.

    Parameters:

    obj - The graphic object to test.

    Since:

    JViews 5.0

    See Also:

    isLink(ilog.views.IlvGraphic), isNode(ilog.views.IlvGraphic), isNodeOrLink(ilog.views.IlvGraphic), addInterGraphLink(ilog.views.IlvLinkImage, boolean), getInterGraphLinks(), getInterGraphLinksCount()
  - setMarked
```
public final void setMarked(IlvGraphic obj,
                            boolean value)
```
    Marks or unmarks an object.

    Parameters:

    obj - The object.

    value - Set to true to mark the object, false otherwise.

    See Also:

    isMarked(ilog.views.IlvGraphic)
  - isMarked
```
public final boolean isMarked(IlvGraphic obj)
```
    Returns true if the object is marked.

    Parameters:

    obj - The object.

    See Also:

    setMarked(ilog.views.IlvGraphic, boolean)
  - makeObjectProperty
```
protected IlvObjectProperty makeObjectProperty(IlvGraphic obj)
```
    Creates the object property for the input object. This method is part of JViews internals. You should not use it.

    Overrides:

    makeObjectProperty in class IlvManager

    Since:

    JViews 8.0

    Internal: do not use!
  - getBoundingBoxDependentObjects
```
protected HashSet getBoundingBoxDependentObjects(IlvGraphic obj,
                                                 boolean includeExternals)
```
    Returns the dependent objects of this object. The dependent objects may change their bounding box if the input object changes its bounding box.
    The default implementation returns the links that may move when the input object is a moving node.

    Parameters:

    obj - The object that changes its bounding box.

    includeExternals - If true and the input object is a grapher, include the external intergraph links to the depending objects.

    Returns:

    The objects whose bounding box depends on the bounding box of the input object. May be null if there are no dependent objects.

    Since:

    JViews 8.0
  - beforeTransformObj
```
protected void beforeTransformObj(IlvGraphic obj,
                                  boolean redraw,
                                  boolean ifneeded,
                                  boolean parent)
```
    Called from IlvManager.beforeTransform(ilog.views.IlvGraphic, boolean, boolean, boolean). This method is part of JViews internals. You should not use it.

    Overrides:

    beforeTransformObj in class IlvManager

    Since:

    JViews 8.0

    Internal: do not use!
  - afterTransformObj
```
protected void afterTransformObj(IlvGraphic obj,
                                 boolean redraw,
                                 boolean ifneeded,
                                 boolean parent,
                                 boolean fireEvent)
```
    Called from IlvManager.afterTransform(ilog.views.IlvGraphic, boolean, boolean, boolean, boolean). This method is part of JViews internals. You should not use it.

    Overrides:

    afterTransformObj in class IlvManager

    Since:

    JViews 8.0

    Internal: do not use!
  - beforeTransformDependentObjs
```
protected void beforeTransformDependentObjs(HashSet objs,
                                            boolean redraw,
                                            boolean ifneeded)
```
    Called from IlvManager.afterTransform(ilog.views.IlvGraphic, boolean, boolean, boolean, boolean). This method is part of JViews internals. You should not use it.

    Since:

    JViews 8.0

    Internal: do not use!
  - afterTransformDependentObjs
```
protected void afterTransformDependentObjs(HashSet objs,
                                           boolean redraw,
                                           boolean ifneeded)
```
    Called from IlvManager.afterTransform(ilog.views.IlvGraphic, boolean, boolean, boolean, boolean). This method is part of JViews internals. You should not use it.

    Since:

    JViews 8.0

    Internal: do not use!
  - nodeHasSons
```
public final boolean nodeHasSons(IlvGraphic node)
```
    Returns true if there are links from the specified node to other nodes.

    Parameters:

    node - The graphic object to test.
  - isLinkBetween
```
public final boolean isLinkBetween(IlvGraphic node1,
                                   IlvGraphic node2)
```
    Tests whether a link exists between two nodes.

    Parameters:

    node1 - The first node.

    node2 - The second node.
  - makeNode
```
public void makeNode(IlvGraphic obj)
```
    Allows a graphic object to become a node of the grapher. If the specified graphic object has been added to the grapher using the addObject method, this object is not considered as a node of the grapher and it cannot have links. After calling this method, the object will be considered as a node.

    Parameters:

    obj - The graphic object.

    See Also:

    unmakeNode(ilog.views.IlvGraphic)
  - unmakeNode
```
public void unmakeNode(IlvGraphic obj)
```
    Allows a graphic object that was added as a node to become a regular object. This is the inverse operation of makeNode(ilog.views.IlvGraphic). If the specified graphic object has been added to the grapher using the addNode method, this object is considered as a node of the grapher. After calling this method, the object will no longer be considered as a node. You can call this method only if the object has no incident links.

    Parameters:

    obj - The graphic object.

    Since:

    JViews 5.0

    See Also:

    makeNode(ilog.views.IlvGraphic)
  - getSelectedMovingObjects
```
public IlvGraphicEnumeration getSelectedMovingObjects(boolean[] flags)
```
    Returns the selected objects that should be moved by the select interactor.

    Overrides:

    getSelectedMovingObjects in class IlvManager

    Parameters:

    flags - The flags of the select interactor that control what should be moved. If flag[0] is true, the links are moved if both end nodes are selected.

    Since:

    JViews 8.0

    See Also:

    IlvSelectInteractor.getSelectedMovingObjects(ilog.views.IlvManager)
  - setCrossingAwareLinksFrozen
```
public void setCrossingAwareLinksFrozen(boolean flag)
```
    Marks that all crossing aware links of this manager are frozen. Trying to reshape these links has no effect anymore. This method is part of JViews internals. You should not use it.

    Since:

    JViews 8.5

    Internal: do not use!
  - isCrossingAwareLinksFrozen
```
public boolean isCrossingAwareLinksFrozen()
```
    Returns whether all crossing aware links of this manager are frozen. If it returns true, trying to reshape these links has no effect anymore. This method is part of JViews internals. You should not use it.

    Since:

    JViews 8.5

    Internal: do not use!
  - setVisibleBranch
```
public void setVisibleBranch(IlvGraphic node,
                             boolean visible,
                             boolean origin)
```
    Shows or hides a branch that originates from or has as destination the input node.
    The argument node must be a node stored in this grapher. If the argument origin is true, it shows or hides the branch that originates from node. Otherwise, it shows or hides the branch that has node as destination.
    The method calls setVisibleBranch(IlvGraphic, int, boolean, boolean) passing 0 as the level argument.

    Since:

    JViews 8.0

    See Also:

    setVisibleBranch(IlvGraphic, int, boolean, boolean)
  - setVisibleBranch
```
public void setVisibleBranch(IlvGraphic node,
                             int level,
                             boolean visible,
                             boolean origin)
```
    Shows or hides a branch that originates from or has as destination the input node, starting at level levels away from node.
    The argument node must be a node stored in this grapher. If the argument origin is true, it shows or hides the branch originating from node. Otherwise, it shows or hides the branch that has node as destination.

    Since:

    JViews 8.0

    See Also:

    setVisibleBranch(IlvGraphic, boolean, boolean)
  - setVisibleBranch
```
public void setVisibleBranch(IlvGraphic node,
                             int startLevel,
                             int endLevel,
                             boolean visible,
                             boolean origin,
                             boolean includeIntergraphLinks,
                             boolean includeTreeExtIntergraphLinks)
```
    Shows or hides a branch that originates from or has as destination the input node, starting at startLevel levels away from node until at endLevel levels away.
    The argument node must be a node stored in this grapher or any of its subgraphers. This node has level 0, and all nodes directly reachable by one link from this node have level 1, and so on. It shows or hides the nodes between startLevel and endLevel (exclusive, that is, specifying start level 2 and end level 5 shows or hides the nodes and links at level 3 and 4). If the endLevel is negative, it is ignored, that is, it hides all of the branch starting at startLevel.
    If the argument origin is true, it shows or hides the branch originating from node. Otherwise, it shows or hides the branch that has node as destination.
    At a node, we have normal links and intergraph links. If the node is a subgrapher, links may end directly at the node, or at a node nested inside the subgrapher. The latter are called the tree external intergraph links. If includeIntergraphLinks is false and includeTreeExtIntergraphLinks is false, it calculates the branch by taking only normal links into account. If includeIntergraphLinks is false but includeTreeExtIntergraphLinks is true, it calculates the branch by taking the tree external intergraph links at subgraphers into account, and if a node belongs to the branch that is not directly contained in this grapher, it takes the ancestor node which is directly contained in this grapher into account. This is particular suitable if that ancestor is a collapsed subgrapher, because the tree external intergraph links end visually directly at the collapsed subgrapher.
    If includeIntergraphLinks is true and includeTreeExtIntergraphLinks is false, it calculates the branch by taking normal links and intergraph links into account, that end directly at the nodes. If includeIntergraphLinks is true and includeTreeExtIntergraphLinks is true, it calculates the branch by taking normal links and intergraph links into account, including those tree external intergraph links that end inside subgraphers.

    Parameters:

    node - The start node of the branch. This node does not change its visibility.

    startLevel - The start level of the branch.

    endLevel - The end level of the branch. If negative, it is treated as no end level.

    visible - Whether to set the branch visible or invisible.

    origin - Whether to calculate the branch starting at the node or ending at the node.

    includeIntergraphLinks - Whether to include intergraph links when calculating the branch.

    includeTreeExtIntergraphLinks - Whether to include tree external intergraph links at subgraphers when calculating the branch.

    Since:

    JViews 8.8

    See Also:

    setVisibleBranch(IlvGraphic, boolean, boolean)

Class IlvGrapher

Overview

Example

Visibility

Nested Graphers

Events and Interactive Behavior

Field Summary

Fields inherited from class ilog.views.IlvManager

Constructor Summary

Method Summary

Methods inherited from class ilog.views.IlvManager

Methods inherited from class ilog.views.IlvBidiGraphic

Methods inherited from class ilog.views.IlvGraphic

Methods inherited from class java.lang.Object

Methods inherited from interface ilog.views.IlvGraphicBag

Constructor Detail

IlvGrapher

IlvGrapher

IlvGrapher

IlvGrapher

IlvGrapher

Method Detail

copy

write

writePrefix

writeSuffix

readPrefix

readSuffix

addObject

addNode

addNode

addLink

addLink

getExternalInterGraphLinks

getExternalInterGraphLinksCount

getTreeExternalInterGraphLinks

getTreeExternalInterGraphLinksCount

getInterGraphLinks

getInterGraphLinksCount

addInterGraphLink

getLowestCommonGrapher

removeObject

removeLink

removeNode

getLinksInsertionLayer

setLinksInsertionLayer

setLayer

replaceObject

getLinksFrom

getLinksFromCount

getLinksTo

getLinksToCount

getLinks

getLinksCount

getNeighbors

getFromNeighbors

getToNeighbors

getLinksVisibleFrom

getLinksVisibleFromCount

getLinksVisibleTo

getLinksVisibleToCount

isNode

isLink

isNodeOrLink

isInterGraphLink

setMarked

isMarked

makeObjectProperty

getBoundingBoxDependentObjects

beforeTransformObj

afterTransformObj

beforeTransformDependentObjs

afterTransformDependentObjs

nodeHasSons

isLinkBetween

makeNode

unmakeNode

getSelectedMovingObjects

setCrossingAwareLinksFrozen

isCrossingAwareLinksFrozen
