The architecture of JViews Gantt JSF technology
Presents an overview of the architecture of JViews Gantt JSF technology.
*About support for JViews JSF technology
*Describes JViews Web application support based on JavaServer™ Faces (JSF) technology.
*Servlet and component classes
*Identifies servlet and component classes for generating the visual representation of the component.
About support for JViews JSF technology
The Web application support based on JavaServer™ Faces (JSF) technology consists of:
*The tag library (a set of JSP™ tags)
*A Java™ API
*An AJAX based JavaScript™ library
The JSP™ tags are used to build JSP pages. Each tag represents a component and has a set of attributes for configuring the component.
Not all the components have a visual representation. For example, an interactor is intended only to be set on a view and has no visual representation.
When a tag is processed by the JSP engine, it is compiled into Java code that is executed to produce the page content. The tag library produces JavaScript objects. Each object can be referenced by JavaScript code and can be modified on the client side without a server round-trip.
See the Release Notes for the Web browsers and versions with which the JViews Gantt JSF components are compatible.
JViews Gantt JSF component set
The JViews Gantt JSF component set includes:
*A Gantt chart view
*A Schedule chart view
*A set of interactors
*A pop-up menu
JViews Charts JSF component set
The JViews Charts JSF component set includes:
*A chart view
*A chart overview
*A chart legend
*A set of interactors
*A pop-up menu
JViews Framework JSF component set
The JViews FrameworkJSF component set includes:
*A view
*An overview
*A pan tool
*A zoom tool
*A set of interactors
Servlet and component classes
JSF components in JViews Gantt use servlet technology to produce the images that are the visual representation of the component on the client side. Dedicated servlet, servlet support, and components are available to help create an application.
Name
Description
Servlet and component classes in JViews Gantt

In package ilog.views.gantt.faces.dhtml.servlet. IlvFacesGanttServlet
A dedicated IlvGanttServlet.
In package ilog.views.gantt.faces.dhtml.servlet. IlvFacesGanttServletSupport
In package ilog.views.gantt.faces.dhtml.component. IlvFacesDHTMLGanttChartView
A view component extended to have JavaScript rendering that displays an IlvGanttChart.
In package ilog.views.gantt.faces.dhtml.component. IlvFacesDHTMLScheduleChartView
A view component extended to have JavaScript rendering that displays an IlvScheduleChart.
In package ilog.views.gantt.faces.interactor. IlvFacesRowExpandCollapseInteractor
An interactor that allows a hierarchy node (activity or resource) to be expanded or collapsed.
In package ilog.views.gantt.faces.interactor. IlvFacesSheetScrollInteractor
An interactor that allows you to pan the sheet view.
In package ilog.views.gantt.faces.interactor. IlvFacesTableScrollInteractor
An interactor that allows you to pan the table view.
In package ilog.views.gantt.faces.interactor. IlvFacesRowSelectInteractor
An interactor that allows you to execute an action in the servlet context by clicking the image.
In package ilog.views.gantt.faces.dhtml.interactor. IlvFacesNodeSelectInteractor
An interactor that allows you to execute an action in the JSF context by clicking the image.
In package ilog.views.faces.component. IlvFacesContextualMenu
A contextual pop-up menu.
In package ilog.views.gantt.faces.dhtml.interactor. IlvFacesGanttSelectInteractor
An interactor that allows you to select activities, reservations, and constraints and move activities and reservations in the JSF context.
In package ilog.views.gantt.faces.dhtml.component. IlvFacesGanttSelectionManager
A component that allows you to configure the management of the selection on an IlvFacesDHTMLGanttChartView or IlvFacesDHTMLScheduleChartView component.
The associations between these classes are shown graphically in the following figures.

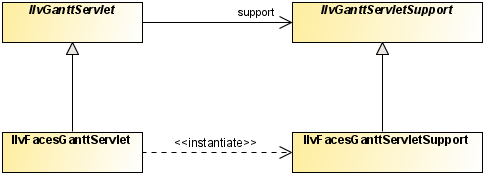

The following figure shows the servlet classes and their supporting classes.
Servlet classes

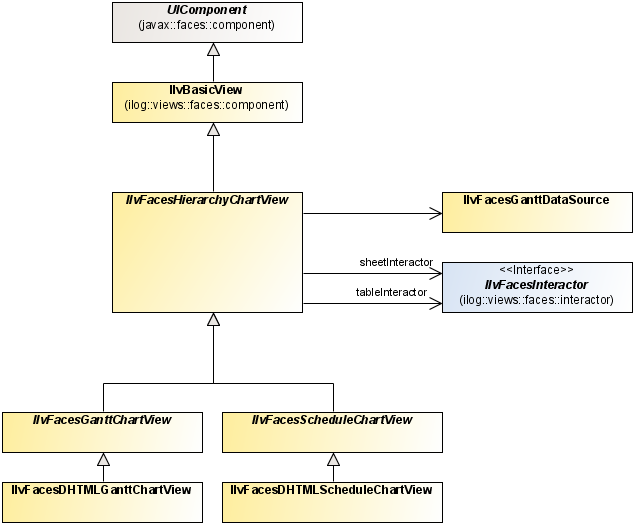

The following figure shows the Gantt chart view components and their associated classes.
Base UI component classes

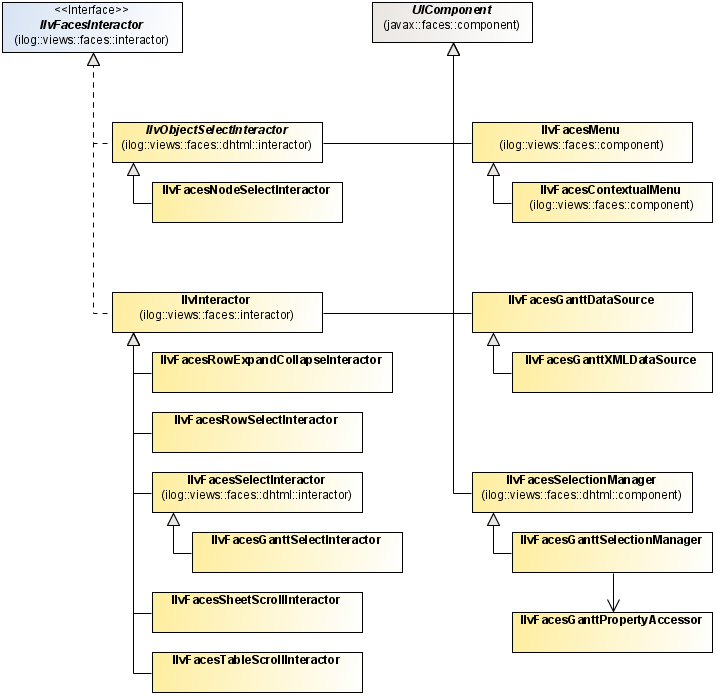

The following figure shows the interactor, pop-up menu, and data source components.
Interactor, pop-up menu, and data source components
Name
Description
Servlet and component classes in JViews Charts

ilog.views.chart.faces.servlet. IlvFacesChart
A dedicated IlvChart component.
ilog.views.chart.faces.servlet . IlvFacesChartLegend
A dedicated IlvLegend component.
ilog.views.chart.faces.servlet . IlvFacesChartOverview
A dedicated chart overview that extends IlvChart.
ilog.views.chart.faces.servlet . IlvFacesChartServlet
A dedicated IlvChartServlet.
ilog.views.chart.faces.servlet . IlvFacesChartServletSupport
ilog.views.chart.faces.dhtml.component . IlvChartDHTMLView
A view component, extended to have JavaScript rendering that displays an IlvFacesChart.
ilog.views.chart.faces.dhtml.component . IlvChartDHTMLOverview
An overview component, extended to have JavaScript rendering that displays an IlvFacesChartOverview.
ilog.views.chart.faces.dhtml.component . IlvChartDHTMLLegend
A legend component, extended to have JavaScript rendering that displays an IlvFacesChartLegend.
ilog.views.chart.faces.interactor . IlvChartPanInteractor
An interactor that allows you to pan the view.
ilog.views.chart.faces.interactor . IlvChartPickInteractor
An interactor that allows you to execute an action in the servlet context by clicking the image.
i log.views.chart.faces.interactor . IlvChartZoomInteractor
An interactor that allows you to zoom the view.
ilog.views.faces.component . IlvFacesContextualMenu
A contextual pop-up menu.
The associations between these classes are shown graphically in the following figures.

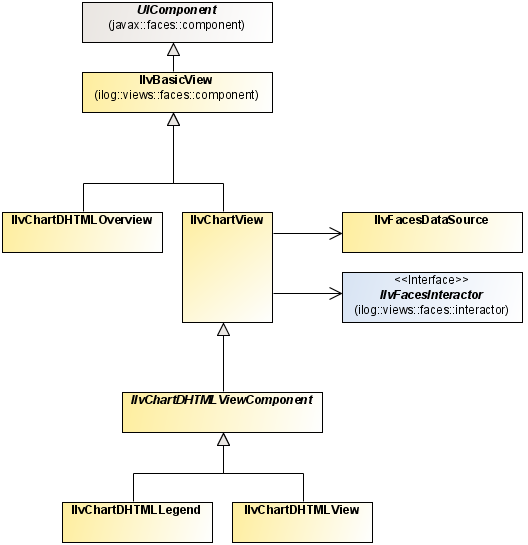

JSF view components
JSF interactors and other components

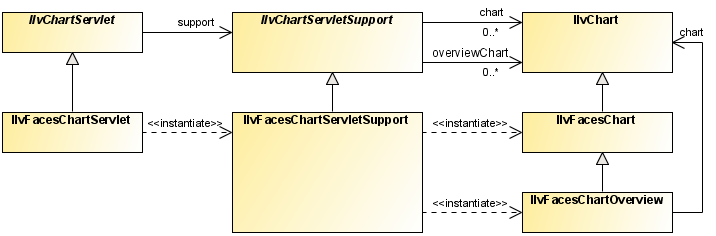

JSF servlet
Name
Description
Servlet and component classes in JViews Framework

A dedicated IlvManagerServlet.
A view component extended to have JavaScript rendering.
An overview component.
ilog.views.faces.component. IlvFacesZoomTool
A tool that allows you to choose a view zoom level.
ilog.views.faces.component. IlvFacesPanTool
A tool that allows you to pan in each direction and to fit the view.
ilog.views.faces.interactor. IlvFacesZoomInteractor
An interactor that allows you to zoom the view.
ilog.views.faces.interactor. IlvFacesPanInteractor
An interactor that allows you to pan the view.
ilog.views.faces.interactor. IlvFacesMapInteractor
An interactor that allows you to execute an action in the servlet context by clicking the image.
ilog.views.faces.interactor. IlvFacesMapRectInteractor
An interactor that allows you to execute an action in the servlet context by dragging a rectangle on the image.
ilog.views.faces.dhtml.interactor. IlvFacesObjectSelectInteractor
An interactor that allows you to execute an action in the JSF context by clicking the image.
ilog.views.faces.dhtml.interactor. IlvFacesObjectSelectRectInteractor
An interactor that allows you to execute an action in the JSF context by dragging a rectangle on the image.
ilog.views.faces.component. IlvFacesContextualMenu
A contextual pop-up menu.
