ilog.views.util.java2d

Class IlvPattern

java.lang.Object

java.awt.TexturePaint

ilog.views.util.java2d.IlvPattern

All Implemented Interfaces:

Paint, Transparency

public class IlvPattern
extends TexturePaint

A pattern is a predefined texture used to fill a shape.

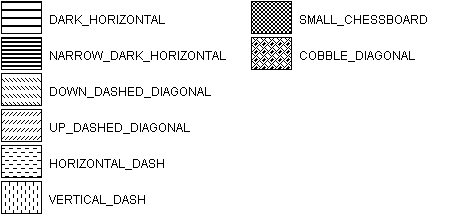

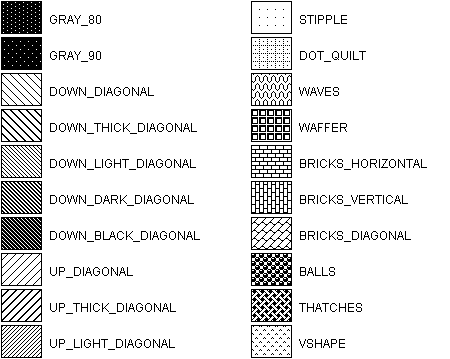

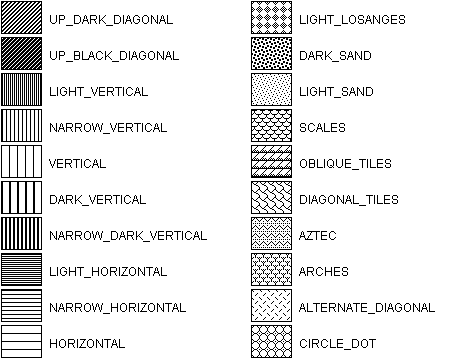

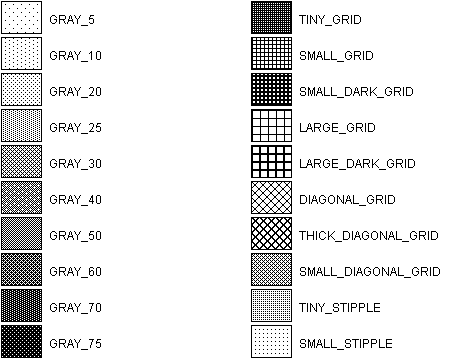

An IlvPattern is a subclass of java.awt.TexturePaint. Available patterns are:

CSS example:

ilvPattern {
class : "ilog.views.util.java2d.IlvPattern(type,foreground,background)";
anchor : "@#rectangle2D";
background : "green";
foreground : "green";
transparency : "OPAQUE";
type : "GRAY_5";
}

See Also:

IlvTexture

Property Summary

Properties

Modifier and Type	Property and Description
java.awt.geom.Rectangle2D	anchor Sets a copy of the anchor rectangle which positions and sizes the textured image.
java.awt.Color	background Sets the background color of the pattern, or null if the background is transparent.
java.lang.String	class Creates a new IlvPattern of the specified type.
java.awt.Color	foreground Sets the foreground color of the pattern.
int	transparency Sets the type of this Transparency.
int	type Sets the type of the pattern.

Method Summary

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Property Detail

class

public java.lang.String class

Creates a new IlvPattern of the specified type.

CSS example: class : "ilog.views.util.java2d.IlvPattern(type,foreground,background)";

anchor

public java.awt.geom.Rectangle2D anchor

Sets a copy of the anchor rectangle which positions and sizes the textured image.

CSS example: anchor : "@#rectangle2D";

See implementing class Rectangle2D for an example of implementing an anchor.

background

public java.awt.Color background

Sets the background color of the pattern, or null if the background is transparent.

CSS example: background : "green";

A color can either be a string representing a color or else an octal or hexadecimal string that starts with the character "#" or else a comma separated "RGB" value where the integer values are in the range 0..255.

foreground

public java.awt.Color foreground

Sets the foreground color of the pattern.

CSS example: foreground : "green";

A color can either be a string representing a color or else an octal or hexadecimal string that starts with the character "#" or else a comma separated "RGB" value where the integer values are in the range 0..255.

transparency

public int transparency

Sets the type of this Transparency.

CSS example: transparency : "OPAQUE";

Allowed values:
OPAQUE		represents image data that is guaranteed to be completely opaque, meaning that all pixels have an alpha value of 1.0.
BITMASK		represents image data that is guaranteed to be either completely opaque, with an alpha value of 1.0, or completely transparent, with an alpha value of 0.0.
TRANSLUCENT		represents image data that contains or might contain arbitrary alpha values between and including 0.0 and 1.0.

type

public int type

Sets the type of the pattern.

CSS example: type : "GRAY_5";

Allowed values:
GRAY_5		5% gray pattern
GRAY_10		10% gray pattern
GRAY_20		20% gray pattern
GRAY_25		25% gray pattern
GRAY_30		30% gray pattern
GRAY_40		40% gray pattern
GRAY_50		50% gray pattern
GRAY_60		60% gray pattern
GRAY_70		70% gray pattern
GRAY_75		75% gray pattern
GRAY_80		80% gray pattern
GRAY_90		90% gray pattern
DOWN_LIGHT_DIAGONAL		Light downward diagonal pattern
DOWN_DARK_DIAGONAL		Dark downward diagonal pattern
UP_LIGHT_DIAGONAL		Light upward diagonal pattern
UP_DARK_DIAGONAL		Dark upward diagonal pattern
LIGHT_VERTICAL		Light vertical pattern
NARROW_VERTICAL		Narrow vertical pattern
LIGHT_HORIZONTAL		Light horizontal pattern
NARROW_HORIZONTAL		Narrow horizontal pattern
DOWN_DASHED_DIAGONAL		Dashed downward diagonal pattern
UP_DASHED_DIAGONAL		Dashed upward diagonal pattern
HORIZONTAL_DASH		Dashed horizontal pattern
VERTICAL_DASH		Dashed vertical pattern
SMALL_GRID		Small grid pattern
LARGE_GRID		Large grid pattern
HORIZONTAL		Horizontal pattern
DARK_HORIZONTAL		Thick horizontal pattern
NARROW_DARK_HORIZONTAL		Thick narrow horizontal pattern
VERTICAL		Vertical pattern
DARK_VERTICAL		Thick vertical pattern
NARROW_DARK_VERTICAL		Thick narrow vertical pattern
UP_DIAGONAL		Upward diagonal pattern
UP_THICK_DIAGONAL		Upward thick diagonal pattern
DOWN_DIAGONAL		Downward diagonal pattern
DOWN_THICK_DIAGONAL		Downward thick diagonal pattern
LARGE_DARK_GRID
SMALL_DARK_GRID
ALTERNATE_DOTS		Alternate dots pattern
TINY_GRID		A tiny grid.
DIAGONAL_GRID		A 45 degrees rotated grid
THICK_DIAGONAL_GRID		A 45 degrees rotated grid with thick lines
SMALL_DIAGONAL_GRID		A small 45 degrees rotated small grid
DOWN_BLACK_DIAGONAL		Black downward diagonal
UP_BLACK_DIAGONAL		Black upward diagonal
TINY_STIPPLE		A tiny grid with points
SMALL_STIPPLE		A small grid with points
STIPPLE		A grid with points
WAVES		Waves pattern
WAFFER		Waffer pattern
BRICKS_HORIZONTAL		Horizontal bricks
BRICKS_VERTICAL		Vertical bricks
BRICKS_DIAGONAL		Diagonal bricks
DOT_QUILT		Dot quilt pattern
BALLS		Balls pattern
THATCHES		Thatches pattern
LIGHT_LOSANGES		Light losanges pattern
VSHAPE		V-Shape pattern
DARK_SAND		Dark sand pattern
LIGHT_SAND		Light sand pattern
SCALES		Horizontal fish-scale pattern
OBLIQUE_TILES		Oblique 3d tiles
DIAGONAL_TILES		Diagonal roof tiles
AZTEC		Aztec style
ALTERNATE_DIAGONAL		Alternated diagonals
CIRCLE_DOT		Circle and dotes pattern
SMALL_CHESSBOARD		Small chess board
ARCHES		Arches pattern
COBBLE_DIAGONAL		Diagonal brick cobble
