ilog.views.chart.renderer

Class IlvBarChartRenderer

java.lang.Object

ilog.views.chart.IlvChartRenderer

ilog.views.chart.renderer.IlvCompositeChartRenderer

ilog.views.chart.renderer.IlvSimpleCompositeChartRenderer

ilog.views.chart.renderer.IlvBarChartRenderer

public class IlvBarChartRenderer
extends IlvSimpleCompositeChartRenderer

A renderer displaying bars. This renderer creates an instance of IlvSingleBarRenderer for every data set in the connected data source. An IlvBarChartRenderer supports three representation modes:

• Superimposed: bars are drawn on top of each other, and their width is computed so that a bar is only partly covered. This mode corresponds to the #SUPERIMPOSED constant.
• Clustered: bars are laid out in clusters, each cluster represents the set of y-values corresponding to a given x-value. This mode corresponds to the #CLUSTERED constant.
• Stacked: bars are stacked, so that each one displays the contribution of an y-value in a set of several y-values. This mode corresponds to the #STACKED constant.

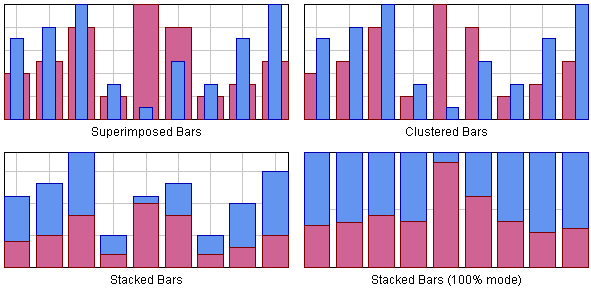

The following figure illustrates these representation modes:

CSS example:

ilvBarChartRenderer {
class : "ilog.views.chart.renderer.IlvBarChartRenderer";
annotation : "@#ilvDataLabelAnnotation";
autoTransparency : "false";
barShape : "QUADRILATERAL";
diverging : "false";
mode : "SUPERIMPOSED";
name : "<value>";
overlap : "3.0";
stacked100Percent : "false";
stackedByIndex : "false";
styles[0] : "@#ilvStyle1";
styles[1] : "@#ilvStyle2";
useCategorySpacingAtBorders : "false";
visible : "false";
visibleInLegend : "false";
widthPercent : "3.0";
YAxisIdx : "2";
}

Property Summary

Properties

Modifier and Type	Property and Description
IlvDataAnnotation	annotation Specifies a global annotation for all the data sets displayed by this renderer.
boolean	autoTransparency Sets whether this renderer should use transparent default colors.
int	barShape Sets the shape of the bars.
java.lang.String	class Creates a new IlvBarChartRenderer, with a default bar width and the #CLUSTERED mode.
boolean	diverging Specifies whether negative values are stacked separately from positive values.
int	mode Sets the mode of this renderer.
java.lang.String	name Sets the name of this renderer.
double	overlap Modifies the overlapping amount.
boolean	stacked100Percent Specifies the stacking mode.
boolean	stackedByIndex Specifies whether the stacking is based on data set indices rather than on X values.
IlvStyle[]	styles Sets the styles used by the child renderers.
boolean	useCategorySpacingAtBorders Determines whether the category spacing is used also at the left and right borders.
boolean	visible Toggles the visibility of this renderer.
boolean	visibleInLegend Indicates whether the renderer appears in the legend.
double	widthPercent Sets the width of the graphical representation of a data point.
int	YAxisIdx Connects the specified renderer to the specified ordinate axis.

Two stacking modes are available:

• Default mode: All the y-values for a given x-value are summed.
• 100% mode: Each bar represents the percentage it contributes to the sum of all the y-values for a given x-value.

You can switch between the two modes with the #setStacked100Percent method.

name

public java.lang.String name

Sets the name of this renderer.

CSS example: name : "<value>";

overlap

public double overlap

Modifies the overlapping amount. The overlap parameter can take values between 0 and 100. It specifies the amount by which bars overlap. This method is meaningful only when the mode of the renderer is set to #CLUSTERED.

CSS example: overlap : "3.0";

stacked100Percent

public boolean stacked100Percent

Specifies the stacking mode. If stacked100 is set to true, the sum of all the y-values for a given x-value is scaled to 100. Each bar represents the percentage it contributes to this sum. This method is meaningful only when the mode of the renderer is set to #STACKED.

CSS example: stacked100Percent : "false";

See Also:

mode

stackedByIndex

public boolean stackedByIndex

Specifies whether the stacking is based on data set indices rather than on X values. If stackedByIndex is set to true, the Y values are computed by accumulating the Y values with the same index, regardless of their X values, and the X values of the second, third, etc. data sets are ignored. If stackedByIndex is set to false, the Y values are computed by accumulating the Y values with the same X value, regardless of their index in the data set. This method is meaningful only when the mode of the renderer is set to #STACKED.

CSS example: stackedByIndex : "false";

See Also:

mode

styles

public IlvStyle[] styles

Sets the styles used by the child renderers. Each child renderer is associated with a style from the specified array.

CSS example:

styles[0] : "@#ilvStyle1";
styles[1] : "@#ilvStyle2";

See implementing class IlvStyle for an example of implementing a styles.

useCategorySpacingAtBorders

public boolean useCategorySpacingAtBorders

Determines whether the category spacing is used also at the left and right borders. If set to true, category spacing is not only used between bars, but also beyond the leftmost and rightmost bars. If set to false (the default), this spacing is omitted. This setting matters only if getWidthPercent is less than 100.

CSS example: useCategorySpacingAtBorders : "false";

visible

public boolean visible

Toggles the visibility of this renderer.

CSS example: visible : "false";

visibleInLegend

public boolean visibleInLegend

Indicates whether the renderer appears in the legend.

The default value of this property is true, which means that the renderer will automatically create and add items to the legend.

CSS example: visibleInLegend : "false";

widthPercent

public double widthPercent

Sets the width of the graphical representation of a data point.

CSS example: widthPercent : "3.0";

YAxisIdx

public int YAxisIdx

Connects the specified renderer to the specified ordinate axis.

CSS example: YAxisIdx : "2";
