ilog.views.chart

Class IlvScale

java.lang.Object

ilog.views.chart.IlvScale

public class IlvScale
extends java.lang.Object

Represents a scale that can be connected to a chart axis.

Scales might be defined as a graphical representation of a chart axis. As such, a scale is always associated with an IlvAxis instance. The axis to bind to a scale is determined when a scale is added to a chart, using the IlvChart#setXScale and IlvChart#setYScale methods.

A scale is composed of:

• An axis representation, which depends on the chart projection (could be a line or an arc).
• Major ticks, the marks drawn on the axis at each step of the scale.
• Steps labels, drawn next to the major ticks. These labels indicate the values of the coordinate represented by the scale.
• Minor ticks, the marks drawn on the axis at each substep of the scale.
• A title, which can be placed anywhere along the axis representation.

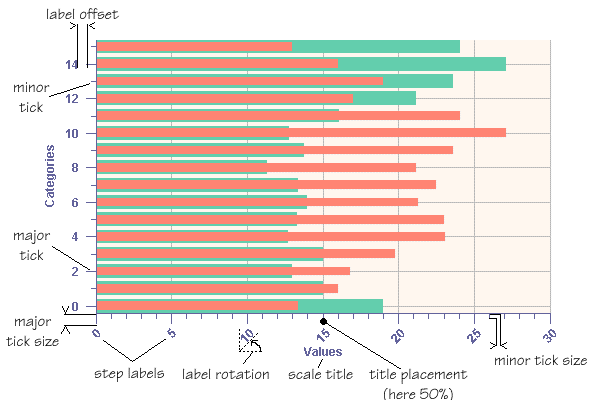

Here is a figure showing the different parts of a scale:

CSS example:

chartScale {
class : "ilog.views.chart.IlvScale";
annotations[0] : "@#ilvScaleAnnotation1";
annotations[1] : "@#ilvScaleAnnotation2";
autoCrossing : "false";
autoSide : "false";
autoWrapping : "false";
axisStroke : "@#stroke";
axisVisible : "false";
category : "false";
circleSide : "OUTSIDE";
crossingValue : "3.0";
drawOrder : "2";
foreground : "green";
labelAlignment : "LEFT";
labelColor : "green";
labelFont : "sansserif-BOLD-8";
labelOffset : "2";
labelRotation : "3.0";
labelVisible : "false";
majorTickSize : "2";
majorTickVisible : "false";
minorTickSize : "2";
minorTickVisible : "false";
radialSide : "LEFT";
side : "LOWER";
skipLabelMode : "CONSTANT";
skippingLabel : "false";
stepsDefinition : "@#ilvCategoryStepsDefinition";
tickLayout : "INSIDE";
title : "<value>";
titleFont : "sansserif-BOLD-8";
titleOffset : "2";
titlePlacement : "2";
titleRotation : "3.0";
visible : "false";
}

Property Summary

Properties

Modifier and Type	Property and Description
IlvScaleAnnotation[]	annotations Sets the annotations attached to this scale.
boolean	autoCrossing Specifies whether the scale uses a default crossing location.
boolean	autoSide Specifies whether the side of the labels, title and "outside" ticks should be chosen automatically.
boolean	autoWrapping Toggles the automatic wrapping of step labels.
Stroke	axisStroke Specifies the stroke for the axis and ticks.
boolean	axisVisible Toggles the visibility of the axis.
boolean	category Specifies that this scale should display categories.
int	circleSide Sets the side where to place the labels, title, and "outside" ticks along the circular scale of a polar or radial chart.
java.lang.String	class Creates a numeric scale with the step and substep units automatically computed.
double	crossingValue Specifies where this scale crosses its dual axis.
int	drawOrder Sets the drawing order of this scale.
java.awt.Color	foreground Changes the color of the scale axis.
int	labelAlignment Specifies the alignment of step labels.
java.awt.Color	labelColor Changes the color used to display the step labels.
java.awt.Font	labelFont Sets the font used to draw the step labels.
int	labelOffset Specifies the offset between tick marks and labels.
double	labelRotation Specifies the rotation of the step labels.
boolean	labelVisible Toggles the visibility of step labels.
int	majorTickSize Specifies the size of major tick marks.
boolean	majorTickVisible Toggles the visibility of major ticks.
int	minorTickSize Specifies the size of minor tick marks.
boolean	minorTickVisible Toggles the visibility of minor ticks.
int	radialSide Sets the side where to place the labels, title, and "outside" ticks along the radial scale of a polar or radial chart.
int	side Sets the side where to place the labels, title, and "outside" ticks.
int	skipLabelMode Specifies how the scale determines the labels to skip.
boolean	skippingLabel Tells the scale to skip step labels when they overlap.
IlvStepsDefinition	stepsDefinition Changes the steps definition.
int	tickLayout Specifies the layout of tick marks.
java.lang.String	title Sets the scale title text.
java.awt.Font	titleFont Sets the title font.
int	titleOffset Specifies the offset between the scale title and the step labels.
int	titlePlacement Sets the title placement.
double	titleRotation Sets the title rotation.
boolean	visible Toggles the visibility of this scale.

Note: Label wrapping does not check the orientation nor the type of the scale. Similarly, it does not take into account the rotation of scale labels. It should only be enabled for scales whose labels are parallel to the axis.

CSS example: autoWrapping : "false";

axisStroke

public Stroke axisStroke

Specifies the stroke for the axis and ticks.

CSS example: axisStroke : "@#stroke";

See implementing class BasicStroke for an example of implementing an axisStroke.

axisVisible

public boolean axisVisible

Toggles the visibility of the axis.

CSS example: axisVisible : "false";

category

public boolean category

Specifies that this scale should display categories.

CSS example: category : "false";

circleSide

public int circleSide

Sets the side where to place the labels, title, and "outside" ticks along the circular scale of a polar or radial chart.

CSS example: circleSide : "OUTSIDE";

Allowed values:
OUTSIDE		Circular scale side (x scale in polar or radar chart): Labels, title, and "outside" ticks are drawn outside the circle.
INSIDE		Circular scale side (x scale in polar or radar chart): Labels, title, and "outside" ticks are drawn inside the circle.

crossingValue

public double crossingValue

Specifies where this scale crosses its dual axis. This method has no effect if the chart owning this scale is displayed in 3-D.

Note: The bean property "crossingValue" must not be specified together with the bean properties "autoCrossing" or "crossing".

CSS example: crossingValue : "3.0";

See Also:

#3D

drawOrder

public int drawOrder

Sets the drawing order of this scale.

CSS example: drawOrder : "2";

foreground

public java.awt.Color foreground

Changes the color of the scale axis.

CSS example: foreground : "green";

A color can either be a string representing a color or else an octal or hexadecimal string that starts with the character "#" or else a comma separated "RGB" value where the integer values are in the range 0..255.

labelAlignment

public int labelAlignment

Specifies the alignment of step labels. The alignment is only used for multiline labels. It can take the following values:

• SwingConstants.LEFT: left alignment.
• SwingConstants.CENTER (default): centered alignment.
• SwingConstants.RIGHT: right alignment.

CSS example: labelAlignment : "LEFT";

Allowed values:
LEFT		Box-orientation constant used to specify the left side of a box.
CENTER		The central position in an area. Used for both compass-direction constants (NORTH, etc.) and box-orientation constants (TOP, etc.).
RIGHT		Box-orientation constant used to specify the right side of a box.

labelColor

public java.awt.Color labelColor

Changes the color used to display the step labels. If this color is not explicitly specified, the foreground of the scale is used.

CSS example: labelColor : "green";

A color can either be a string representing a color or else an octal or hexadecimal string that starts with the character "#" or else a comma separated "RGB" value where the integer values are in the range 0..255.

labelFont

public java.awt.Font labelFont

Sets the font used to draw the step labels.

CSS example: labelFont : "sansserif-BOLD-8";

labelOffset

public int labelOffset

Specifies the offset between tick marks and labels. The default offset is 3.

CSS example: labelOffset : "2";

labelRotation

public double labelRotation

Specifies the rotation of the step labels.

CSS example: labelRotation : "3.0";

labelVisible

public boolean labelVisible

Toggles the visibility of step labels.

CSS example: labelVisible : "false";

majorTickSize

public int majorTickSize

Specifies the size of major tick marks. The default size is 6.

CSS example: majorTickSize : "2";

majorTickVisible

public boolean majorTickVisible

Toggles the visibility of major ticks.

CSS example: majorTickVisible : "false";

minorTickSize

public int minorTickSize

Specifies the size of minor tick marks. The default size is 3.

CSS example: minorTickSize : "2";

minorTickVisible

public boolean minorTickVisible

Toggles the visibility of minor ticks.

CSS example: minorTickVisible : "false";

radialSide

public int radialSide

Sets the side where to place the labels, title, and "outside" ticks along the radial scale of a polar or radial chart.

CSS example: radialSide : "LEFT";

Allowed values:
LEFT		Radial scale side (y scale in polar or radar chart): Labels, title, and "outside" ticks are drawn to the left of the radial scale.
RIGHT		Radial scale side (y scale in polar or radar chart): Labels, title, and "outside" ticks are drawn to the right of the radial scale.

side

public int side

Sets the side where to place the labels, title, and "outside" ticks.

Note: The bean property "side" must not be specified together with the bean property "autoSide".

CSS example: side : "LOWER";

Allowed values:
LOWER		Side: Labels, title, and "outside" ticks are drawn towards decreasing values of the dual axis.
UPPER		Side: Labels, title, and "outside" ticks are drawn towards increasing values of the dual axis.

skipLabelMode

public int skipLabelMode

Specifies how the scale determines the labels to skip.

CSS example: skipLabelMode : "CONSTANT";

Allowed values:
CONSTANT		Skip label type: indicates that the scale computes a constant number of labels to skip to avoid overlapping.
ADAPTIVE		Skip label type: indicates that the scale considers every label from the first to the last, and determines which one should be skipped to avoid overlapping.

skippingLabel

public boolean skippingLabel

Tells the scale to skip step labels when they overlap.

CSS example: skippingLabel : "false";

stepsDefinition

public IlvStepsDefinition stepsDefinition

Changes the steps definition. This method lets you change the step numbering strategy.

CSS example: stepsDefinition : "@#ilvCategoryStepsDefinition";

See implementing class IlvCategoryStepsDefinition for an example of implementing a stepsDefinition.

tickLayout

public int tickLayout

Specifies the layout of tick marks.

CSS example: tickLayout : "INSIDE";

Allowed values:
INSIDE		Tick layout type: ticks are drawn inside the plot area.
OUTSIDE		Tick layout type: ticks are drawn outside the plot area.
CROSS		Tick layout type: ticks are drawn both inside and outside the plot area.

title

public java.lang.String title

Sets the scale title text.

CSS example: title : "<value>";

titleFont

public java.awt.Font titleFont

Sets the title font.

CSS example: titleFont : "sansserif-BOLD-8";

titleOffset

public int titleOffset

Specifies the offset between the scale title and the step labels. The default offset is 3.

CSS example: titleOffset : "2";

titlePlacement

public int titlePlacement

Sets the title placement. The value is expressed as a percentage of the axis length, 0 meaning the title is drawn at the minimum axis value, 100 meaning the title is drawn at the maximum axis value. The default value is 50, meaning the title is drawn in the middle of the scale.

CSS example: titlePlacement : "2";

titleRotation

public double titleRotation

Sets the title rotation.

CSS example: titleRotation : "3.0";

See Also:

title

visible

public boolean visible

Toggles the visibility of this scale.

CSS example: visible : "false";
