ilog.views.chart

Class IlvLocalZoomAxisTransformer

java.lang.Object

ilog.views.chart.IlvAxisTransformer

ilog.views.chart.IlvLocalZoomAxisTransformer

public class IlvLocalZoomAxisTransformer
extends IlvAxisTransformer

Implements a local zoom on a coordinate.

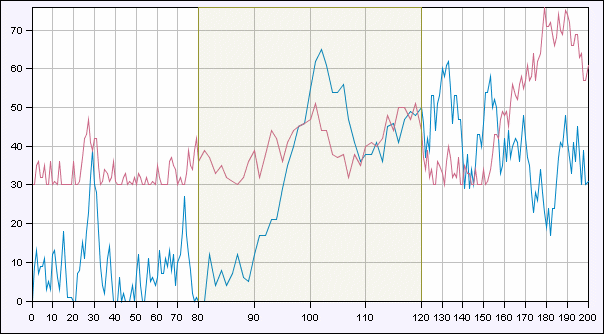

The following picture shows the effect of an IlvLocalZoomAxisTransformer set on the x-axis:

CSS example:

ilvLocalZoomAxisTransformer {
class : "ilog.views.chart.IlvLocalZoomAxisTransformer(zoomRange,zoomFactor,continuous)";
continuous : "false";
zoomFactor : "3.0";
zoomRange : "@#ilvDataInterval";
}

Property Summary

Properties

Modifier and Type	Property and Description
java.lang.String	class Creates a new local zoom transformer with the specified zoom window, zoom factor, and continuous property.
boolean	continuous Modifies the continuity of the local zoom.
double	zoomFactor Sets the zoom factor.
IlvDataInterval	zoomRange Sets the zoom range.

Method Summary

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Property Detail

class

public java.lang.String class

Creates a new local zoom transformer with the specified zoom window, zoom factor, and continuous property.

CSS example: class : "ilog.views.chart.IlvLocalZoomAxisTransformer(zoomRange,zoomFactor,continuous)";

continuous

public boolean continuous

Modifies the continuity of the local zoom.

CSS example: continuous : "false";

zoomFactor

public double zoomFactor

Sets the zoom factor.

CSS example: zoomFactor : "3.0";

zoomRange

public IlvDataInterval zoomRange

Sets the zoom range.

CSS example: zoomRange : "@#ilvDataInterval";

See implementing class IlvDataInterval for an example of implementing a zoomRange.
