ilog.views.chart

Class IlvChart

java.lang.Object

ilog.views.chart.IlvChart

public class IlvChart
extends java.lang.Object

The chart component uses internally several subcomponents for specific operations. These child components are either automatically (for key-components) or manually (for optional components) added to the chart. These embedded components are:

• a ChartArea component, instance of IlvChart.Area.
• an optional legend, instance of IlvLegend.
• an optional header. A header is an optional JComponent added to the chart on top of the chart area.
• an optional footer. A footer is an optional JComponent added to the chart at the bottom of the chart area.

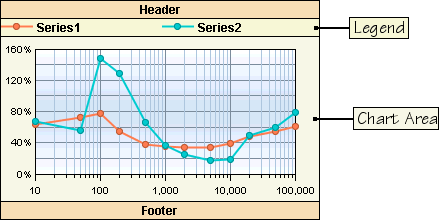

The following figure shows the components of a chart:

CSS example:

ilvChart {
class : "ilog.views.chart.IlvChart";
3D : "false";
alignmentX : "2.0";
alignmentY : "2.0";
angleRange : "3.0";
antiAliasing : "false";
antiAliasingText : "false";
autoScaleTitleRotation : "false";
autoscrolls : "false";
background : "green";
backgroundPaint : "#000000";
baseTextDirection : "Inherited";
border : "@#emptyBorder";
chartAreaBorder : "@#emptyBorder";
debugGraphicsOptions : "2";
defaultColors[0] : "green";
defaultColors[1] : "red";
doubleBuffered : "false";
dynamicStyling : "false";
enabled : "false";
focusable : "false";
focusCycleRoot : "false";
font : "sansserif-BOLD-8";
foreground : "green";
interactors[0] : "@#ilvChart3DViewInteractor1";
interactors[1] : "@#ilvChart3DViewInteractor2";
legendPosition : "North";
legendVisible : "false";
maximumSize : "0,0";
minimumSize : "0,0";
name : "<value>";
opaque : "false";
optimizedRepaint : "false";
plotAreaBackground : "green";
preferredSize : "0,0";
project : "url(spec)";
projectorReversed : "false";
renderingType : "BAR";
requestFocusEnabled : "false";
scalingFont : "false";
scrollRatio : "3.0";
shiftScroll : "false";
startingAngle : "3.0";
styleSheet : "<value>";
toolTipText : "<value>";
type : "CARTESIAN";
verifyInputWhenFocusTarget : "false";
visible : "false";
XAxisReversed : "false";
XGridVisible : "false";
XScaleTitle : "<value>";
XScaleTitleRotation : "3.0";
XScaleVisible : "false";
YAxisReversed : "false";
YGridVisible : "false";
YScaleTitle : "<value>";
YScaleTitleRotation : "3.0";
YScaleVisible : "false";
}

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
class	IlvChart.Area The component where the graphical representation of charts and scales are displayed.

Property Summary

Properties

Modifier and Type	Property and Description
boolean	3D Specifies whether the chart is rendered in 3-D.
float	alignmentX Sets the vertical alignment.
float	alignmentY Sets the horizontal alignment.
double	angleRange Sets the angle range of the polar projector.
boolean	antiAliasing Sets the antiAliasing property.
boolean	antiAliasingText Sets the antiAliasingText property.
boolean	autoScaleTitleRotation Sets whether the rotation angle of the scale titles is computed automatically depending on the type of the scale axis and depending on the projector configuration.
boolean	autoscrolls Sets the autoscrolls property.
java.awt.Color	background Sets the background color of this component.
Paint	backgroundPaint Sets the background as a Paint.
int	baseTextDirection Sets the base text direction for this chart.
Border	border Sets the border of this component.
Border	chartAreaBorder Sets the chart area border.
java.lang.String	class Creates a Cartesian chart.
int	debugGraphicsOptions Enables or disables diagnostic information about every graphics operation performed within the component or one of its children.
java.awt.Color[]	defaultColors Sets the default colors used by this chart.
boolean	doubleBuffered Sets whether the this component should use a buffer to paint.
boolean	dynamicStyling Specifies whether styles are dynamically applied when data change.
boolean	enabled Sets whether or not this component is enabled.
boolean	focusable Sets the focusable state of this Component to the specified value.
boolean	focusCycleRoot Sets whether this Container is the root of a focus traversal cycle.
java.awt.Font	font Sets the font for this component.
java.awt.Color	foreground Sets the foreground color of this component.
ilog.views.chart.IlvChartInteractor[]	interactors Sets the interactors.
java.lang.String	legendPosition Sets the legend position.
boolean	legendVisible Sets the legend of this chart visible.
Dimension	maximumSize Sets the maximum size of this component to a constant value.
Dimension	minimumSize Sets the minimum size of this component to a constant value.
java.lang.String	name Sets the name of the component to the specified string.
boolean	opaque If true the component paints every pixel within its bounds.
boolean	optimizedRepaint Specifies whether the handling of paint requests is optimized.
java.awt.Color	plotAreaBackground Sets the plot area background color.
Dimension	preferredSize Sets the preferred size of this component.
java.net.URL	project Sets the project file URL of this chart.
boolean	projectorReversed Specifies whether the chart projector is reversed.
int	renderingType Sets the renderer type for the main data source of the chart.
boolean	requestFocusEnabled Provides a hint as to whether or not this JComponent should get focus.
boolean	scalingFont Sets whether the fonts are scaled when the chart is resized.
double	scrollRatio Sets the scroll ratio.
boolean	shiftScroll Sets the shiftScroll property.
double	startingAngle Sets the starting angle of the projector.
java.lang.String	styleSheet Sets the value of the styleSheet property.
java.lang.String	toolTipText Registers the text to display in a tool tip.
int	type Sets the type of the chart.
boolean	verifyInputWhenFocusTarget Sets the value to indicate whether input verifier for the current focus owner will be called before this component requests focus.
boolean	visible Makes the component visible or invisible.
boolean	XAxisReversed Sets the reversed property of the x-axis.
boolean	XGridVisible Sets whether the major lines of the abscissa grid are visible.
java.lang.String	XScaleTitle Sets the abscissa scale title.
double	XScaleTitleRotation Sets the rotation of the abscissa scale title.
boolean	XScaleVisible Sets whether the abscissa scale is visible.
boolean	YAxisReversed Sets the reversed property of the main y-axis.
boolean	YGridVisible Sets whether the major lines of the grid associated with the y-axis of index 0 is visible.
java.lang.String	YScaleTitle Sets the title of the ordinate scale connected to the y-axis of index 0.
double	YScaleTitleRotation Sets the title rotation of the ordinate scale connected to the y-axis of index 0.
boolean	YScaleVisible Sets whether the scale connected to the y-axis of index 0 is visible.

Note: For efficiency reasons, it is recommended to toggle off dynamic styling if your style sheet does not contain any rule based on the attributes of a data point, or if your data model is static.

CSS example: dynamicStyling : "false";

enabled

public boolean enabled

Sets whether or not this component is enabled. A component that is enabled may respond to user input, while a component that is not enabled cannot respond to user input. Some components may alter their visual representation when they are disabled in order to provide feedback to the user that they cannot take input. Note: Disabling a component does not disable it's children. Note: Disabling a lightweight component does not prevent it from receiving MouseEvents.

CSS example: enabled : "false";

focusable

public boolean focusable

Sets the focusable state of this Component to the specified value. This value overrides the Component's default focusability.

CSS example: focusable : "false";

focusCycleRoot

public boolean focusCycleRoot

Sets whether this Container is the root of a focus traversal cycle. Once focus enters a traversal cycle, typically it cannot leave it via focus traversal unless one of the up- or down-cycle keys is pressed. Normal traversal is limited to this Container, and all of this Container's descendants that are not descendants of inferior focus cycle roots. Note that a FocusTraversalPolicy may bend these restrictions, however. For example, ContainerOrderFocusTraversalPolicy supports implicit down-cycle traversal.

CSS example: focusCycleRoot : "false";

font

public java.awt.Font font

Sets the font for this component.

CSS example: font : "sansserif-BOLD-8";

foreground

public java.awt.Color foreground

Sets the foreground color of this component.

CSS example: foreground : "green";

A color can either be a string representing a color or else an octal or hexadecimal string that starts with the character "#" or else a comma separated "RGB" value where the integer values are in the range 0..255.

interactors

public ilog.views.chart.IlvChartInteractor[] interactors

Sets the interactors. This method replaces the current installed interactors by this new set.

CSS example:

interactors[0] : "@#ilvChart3DViewInteractor1";
interactors[1] : "@#ilvChart3DViewInteractor2";

See implementing class ilog.views.chart.interactor.IlvChart3DViewInteractor for an example of implementing an interactors.

legendPosition

public java.lang.String legendPosition

Sets the legend position.

CSS example: legendPosition : "North";

Allowed values:
North		The north-bottom layout constraint (top of the chart, below the north-top component).
North_West		The north-west layout constraint (left side and top of the chart).
West		The west layout constraint (left side of the chart).
South_West		The south-west layout constraint (left side and bottom of the chart).
South		The south-top layout constraint (bottom of the chart, above the south-bottom component).
South_East		The south-east layout constraint (right side and bottom of the chart).
East		The east layout constraint (right side of the chart).
North_East		The north-east layout constraint (right side and top of the chart).

legendVisible

public boolean legendVisible

Sets the legend of this chart visible. If the parameter is true and no legend has been set yet, this method adds a new IlvLegend instance to the chart at the current legend position. If false, the current legend (if any) is removed and the reference is nullified.

CSS example: legendVisible : "false";

maximumSize

public Dimension maximumSize

Sets the maximum size of this component to a constant value. Subsequent calls to getMaximumSize will always return this value; the component's UI will not be asked to compute it. Setting the maximum size to null restores the default behavior.

CSS example: maximumSize : "0,0";

minimumSize

public Dimension minimumSize

Sets the minimum size of this component to a constant value. Subsequent calls to getMinimumSize will always return this value; the component's UI will not be asked to compute it. Setting the minimum size to null restores the default behavior.

CSS example: minimumSize : "0,0";

name

public java.lang.String name

Sets the name of the component to the specified string.

CSS example: name : "<value>";

opaque

public boolean opaque

If true the component paints every pixel within its bounds. Otherwise, the component may not paint some or all of its pixels, allowing the underlying pixels to show through. The default value of this property is false for JComponent. However, the default value for this property on most standard JComponent subclasses (such as JButton and JTree) is look-and-feel dependent.

CSS example: opaque : "false";

optimizedRepaint

public boolean optimizedRepaint

Specifies whether the handling of paint requests is optimized.

If the optimizedRepaint property is set to true, the chart tries to optimize repaint requests so that only a subset of the displayed data is redrawn. If set to false, no optimization is performed. The default value is true. You may need to toggle off the optimization when using self-adapting Paint objects on continuous renderers such as line, area and stair.

CSS example: optimizedRepaint : "false";

plotAreaBackground

public java.awt.Color plotAreaBackground

Sets the plot area background color.

CSS example: plotAreaBackground : "green";

A color can either be a string representing a color or else an octal or hexadecimal string that starts with the character "#" or else a comma separated "RGB" value where the integer values are in the range 0..255.

preferredSize

public Dimension preferredSize

Sets the preferred size of this component. If preferredSize is null, the UI will be asked for the preferred size.

CSS example: preferredSize : "0,0";

project

public java.net.URL project

Sets the project file URL of this chart. As a project file defines both data and styling, this method sets the chart data source to the one (if any) referenced by this configuration, and apply the style sheets (if any) of the configuration.

CSS example: project : "url(spec)";

projectorReversed

public boolean projectorReversed

Specifies whether the chart projector is reversed. A reversed projector swaps the meaning of the abscissa and ordinate coordinates of a point. For example, a reversed Cartesian projector will project x-data values along the y-axis of the screen. This method is only meaningful for the #CARTESIAN chart type.

CSS example: projectorReversed : "false";

See Also:

type

renderingType

public int renderingType

Sets the renderer type for the main data source of the chart. The current type is unchanged if the specified type is not supported by this chart. For example, only the IlvChartRenderer#PIE type is allowed for pie charts. The specified type is used when calling the #setDataSource method to create the appropriate instance of IlvChartRenderer. The default values is IlvChartRenderer#POLYLINE.

CSS example: renderingType : "BAR";

Allowed values:
BAR		Bar chart renderer type.
STACKED_BAR		Stacked bar chart renderer type.
STACKED100_BAR		Stacked100 bar chart renderer type.
STACKED_DIVERGING_BAR		Stacked diverging bar chart renderer type.
SUPERIMPOSED_BAR		Superimposed bar chart renderer type.
AREA		Area chart renderer type.
STACKED_AREA		Stacked area chart renderer type.
STACKED100_AREA		Stacked100 area chart renderer type.
POLYLINE		Polyline chart renderer type.
STACKED_POLYLINE		Stacked polyline chart renderer type.
STACKED100_POLYLINE		Stacked100 polyline chart renderer type.
SCATTER		Scatter chart renderer type.
STAIR		Stair chart renderer type.
STACKED_STAIR		Stacked stair chart renderer type.
STACKED100_STAIR		Stacked100 stair chart renderer type.
SUMMED_STAIR		Summed stair chart renderer type.
BUBBLE		Bubble chart renderer type.
HILO		HiLo chart renderer type.
HILO_ARROW		Clustered HiLo Arrow chart renderer type.
HILO_STICK		Clustered HiLo Stick chart renderer type.
CANDLE		Candle chart renderer type.
HLOC		HighLow-OpenClose chart renderer type.
PIE		Pie chart renderer type.
TREEMAP		Treemap chart renderer type.
COMBO		Combo chart renderer type.

requestFocusEnabled

public boolean requestFocusEnabled

Provides a hint as to whether or not this JComponent should get focus. This is only a hint, and it is up to consumers that are requesting focus to honor this property. This is typically honored for mouse operations, but not keyboard operations. For example, look and feels could verify this property is true before requesting focus during a mouse operation. This would often times be used if you did not want a mouse press on a JComponent to steal focus, but did want the JComponent to be traversable via the keyboard. If you do not want this JComponent focusable at all, use the setFocusable method instead.

CSS example: requestFocusEnabled : "false";

scalingFont

public boolean scalingFont

Sets whether the fonts are scaled when the chart is resized.

CSS example: scalingFont : "false";

scrollRatio

public double scrollRatio

Sets the scroll ratio. This ratio is taken into account when the shiftScroll property of the chart is set to true. It specifies the amount of the visible x-range that is scrolled back when new data is added beyond this range. It must take a value between 0 and 1. The exact scroll back is always a multiple of visible range * scroll ratio. A value of 0 means that the x-axis is scrolled by the exact amount necessary to make the new data visible. The default scroll ratio is 0.

CSS example: scrollRatio : "3.0";

shiftScroll

public boolean shiftScroll

Sets the shiftScroll property. When this property is set to true, the x-axis automatically scrolls as new data come in. The scroll ratio of the axis is specified by the #setScrollRatio method. The default value of this property is false.

CSS example: shiftScroll : "false";

startingAngle

public double startingAngle

Sets the starting angle of the projector. The angle is expressed in degrees.

This method is only meaningful for the following chart types: #POLAR, #PIE, #RADAR.

CSS example: startingAngle : "3.0";

styleSheet

public java.lang.String styleSheet

Sets the value of the styleSheet property. This method is equivalent to setStyleSheets(0, styleSheet).

Note: The Bean property styleSheet must not be specified together with the Bean property symbolStyle.

CSS example: styleSheet : "<value>";

toolTipText

public java.lang.String toolTipText

Registers the text to display in a tool tip. The text displays when the cursor lingers over the component.

CSS example: toolTipText : "<value>";

type

public int type

Sets the type of the chart. By calling this method you reinitialize the scales and the grids.

CSS example: type : "CARTESIAN";

Allowed values:
CARTESIAN		The type for a CARTESIAN chart.
POLAR		The type for a POLAR chart.
RADAR		The type for a RADAR chart.
PIE		The type for a PIE chart.
TREEMAP		The type for a TREEMAP chart.

verifyInputWhenFocusTarget

public boolean verifyInputWhenFocusTarget

Sets the value to indicate whether input verifier for the current focus owner will be called before this component requests focus. The default is true. Set to false on components such as a Cancel button or a scrollbar, which should activate even if the input in the current focus owner is not "passed" by the input verifier for that component.

CSS example: verifyInputWhenFocusTarget : "false";

visible

public boolean visible

Makes the component visible or invisible. Overrides Component.setVisible.

CSS example: visible : "false";

XAxisReversed

public boolean XAxisReversed

Sets the reversed property of the x-axis.

CSS example: XAxisReversed : "false";

XGridVisible

public boolean XGridVisible

Sets whether the major lines of the abscissa grid are visible. This method does nothing if no abscissa grid has been set.

CSS example: XGridVisible : "false";

XScaleTitle

public java.lang.String XScaleTitle

Sets the abscissa scale title. This method does nothing if no abscissa scale has been set.

CSS example: XScaleTitle : "<value>";

XScaleTitleRotation

public double XScaleTitleRotation

Sets the rotation of the abscissa scale title. This method does nothing if no abscissa scale has been set.

CSS example: XScaleTitleRotation : "3.0";

XScaleVisible

public boolean XScaleVisible

Sets whether the abscissa scale is visible. This method does nothing if no abscissa scale has been set.

CSS example: XScaleVisible : "false";

YAxisReversed

public boolean YAxisReversed

Sets the reversed property of the main y-axis.

CSS example: YAxisReversed : "false";

YGridVisible

public boolean YGridVisible

Sets whether the major lines of the grid associated with the y-axis of index 0 is visible. This method does nothing if no ordinate grid has been set.

CSS example: YGridVisible : "false";

YScaleTitle

public java.lang.String YScaleTitle

Sets the title of the ordinate scale connected to the y-axis of index 0. This method does nothing if no ordinate scale has been set.

CSS example: YScaleTitle : "<value>";

YScaleTitleRotation

public double YScaleTitleRotation

Sets the title rotation of the ordinate scale connected to the y-axis of index 0. This method does nothing if no ordinate scale has been set.

CSS example: YScaleTitleRotation : "3.0";

YScaleVisible

public boolean YScaleVisible

Sets whether the scale connected to the y-axis of index 0 is visible. This method does nothing if no ordinate scale has been set.

CSS example: YScaleVisible : "false";
