In Objective Edit version 6.x and later, the gutter is more customizable than it was in earlier versions. The gutter area is potentially divided into two regions, the index region and the mark region. In the index region, a zero-based line number for each text line is displayed; the mark region is comparable to the old gutter, where bookmarks, breakpoints, or other mark types are displayed. For backward compatibility, the default setting only displays the mark region. Use the SetGutterAlignment() function to customize the gutter display.

SECEditController::SetGutterAlignment(UINT nAlign)

This function sets the gutter format according to the nAlign value. The available nAlign values are:

• ID_SECEDIT_GUTTER_MARKONLY

  Display the mark region only. This is the default (and the old) behavior.

• ID_SECEDIT_GUTTER_INDEXONLY

  Display the index region only.

• ID_SECEDIT_GUTTER_MARKINDEX

  Display the mark region first, then the index region.

• ID_SECEDIT_GUTTER_INDEXMARK

  Display the index region first, then the mark region.

• ID_SECEDIT_GUTTER_NOGUTTER

  Do not display the gutter area.

6.5.1 Customizing the Index Region

As described above, the SetGutterAlignment() function can be used with the following nAlign values to display the index area:

• ID_SECEDIT_GUTTER_INDEXONLY

• ID_SECEDIT_GUTTER_MARKINDEX

• ID_SECEDIT_GUTTER_INDEXMARK

If you choose to make the index area visible, the following functions can be used to further customize the index region:

SECEditController::SetGutterIndexDigits(int nDigits)

This function sets the number of digits that will be displayed in the index region. By default, or for nDigits = -1, Objective Edit uses the value for the maximum number of index digits, which changes as the value for the maximum number of line numbers changes.

SECEditController::SetGutterIndexWidth(int nWidth)

This function sets the width for the index region. By default, Objective Edit uses the value for the maximum number of index digits times the character width.

SECEditController::SetGutterIndexColor(COLORREF rgb)

This function sets the index text color.

SECEditController::GetGutterIndexFont()

GetGutterIndexFont() returns a pointer to the SECEditFontInfo object, which defines font information for the index region. The parameters you can change in SECEditFontInfo are m_nCharWidth, m_nLineHeight, and m_strFaceName.

SECEditController::UpdateGutterIndexFont()

After you modify the SECEditInfo object, you must call UpdateGutterIndexFont() to apply the changes.

For example, if pCtlr is a pointer to an SECEditController object, the following code modifies the index text font:

SECEditFontInfo* pInfo = pCtlr->GetGutterIndexFont(); pInfo->m_nCharWidth = 6; pInfo->m_nLineHeight = 12; pInfo->m_strFaceName = _T("Arial"); pCtlr->UpdateGutterIndexFont();

To change additional font information, you must override the virtual function UpdateGutterIndexFont().

6.5.1.1 Changing the Step Value and Format

The numbers on the gutter bar usually advance by one:

00001 00002

It is possible to change the step to any value, for example:

00010 00020 00030

It is also possible to change the format of the numbers to:

0x010 0x020

Accomplish both of these tasks by overriding the same virtual function:

CString SECEditController::GetGutterIndexText(int nLine) const { CString s; s.Format(_T("%d"), nLine); //Determine Digits int nDigit = 0; for(int n = nLine; n > 0; n/=10) nDigit++; //Line Number of 0 has 1 digit if (nDigit == 0) nDigit = 1; int nMaxDigit = GetGutterIndexDigits(); //ASSERT(nDigit <= nMaxDigit) //Pad Zero for (int i = 0; i &lt; (nMaxDigit - nDigit); i++) s = _T("0") + s; return s; }

You can change the ''//PadZero'' routine to:

//Pad Zero s = _T(''0x''); for (int i = 0; i < (nMaxDigit - nDigit-3); i++) s = _T("0") + s; s = s + _T(''0'');

To override GetGutterIndexText() in an SECEditCtrl-derived class:

1. Create a class derived from SECEditController. Let's call it CMyController.

2. In the SECEditCtrl-derived class you can override the CreateController() function:

   BOOL CMySECEditCtrl::CreateController() { m_pCtlr = new CMyController; m_bAutoDelCtlr = TRUE; return (m_pCtlr != NULL); }

3. Override GetGutterIndexText() in CMyController.

6.5.1.2 Allow Toggling Between Normal Gutter and Line Numbers

When overriding the DrawMarks() function, you need to keep track of the gutter width if you are going to resize it to draw other things.

If you want to allow the user to toggle between a normal gutter and line numbers, take a look at this sample code from the JEDPlus freeware application, which does just that:

---

Java is not one of the languages supported by Objective Edit. Support for C++, C#, HTML, XML, VB, VBScript, and JavaScript is standard. Other languages (including Java) require customization.

---

int CJavaEditView::InitView() { SECEditView::InitView(); //Keep track of the default size of the gutter area nCacheMarkSpace = m_iMarkSpace; return 0; } void CJavaEditView::DrawMarks(CPaintDC *dc, RECT *rect, PLINEDESC pLine) { if(!m_bViewLines) { //Do the stock bookmark painting SECEditView::DrawMarks(dc, rect, pLine); return; } //Paint line numbers in the gutter CString strLineNum = ""; strLineNum.Format("%04d", pLine->iLineNo); //Use the same font in the gutter as the view CFont* pEditorFont = GetFont(); CFont* pOldFont = dc->SelectObject(pEditorFont); int nBkMode = dc->SetBkMode(TRANSPARENT); if (pLine->fBookMark) { //Draw line number as blue if there //is a bookmark on this line COLORREF cr = dc->SetTextColor(RGB(0,0,255)); dc->TextOut(rect->left, rect->top, strLineNum); dc->SetTextColor(cr); } else { dc->TextOut(rect->left, rect->top, strLineNum); } dc->SelectObject(pOldFont); dc->SetBkMode(nBkMode); } void CJavaEditView::OnViewLineNumbers() { m_bViewLines = (!m_bViewLines); //Resize the gutter area to accomodate line numbers //or back to normal gutter size. if(m_bViewLines) { m_iMarkSpace = (nCacheMarkSpace * 2) + (nCacheMarkSpace / 2); } else { m_iMarkSpace = nCacheMarkSpace; } //Force repaint to refresh gutter Invalidate(TRUE); //reposition cursor MakeCursorVisible(); } void CJavaEditView::OnUpdateViewLineNumbers(CCmdUI* pCmdUI) { pCmdUI->SetCheck(m_bViewLines); }

6.5.2 Changing the Width of the Gutter

SECEditController::SetGutterWidth(int nWidth)

Use this function to change the mark region width to nWidth. The default value is 20.

SECEditController::GetGutterWidth()

Returns the width (in logical units) of the gutter on the left side of the viewport.

6.5.3 Changing Gutter Painting

If you want to change the way the gutter paints, you'll need to reinitialize the gutter brush. Remember that the gutter is actually painted by the CBrush m_pGutterBrush. It is initialized in SECEditViewport::CreateGutterBrush() and it defaults to using a patterned brush using the IDB_SECEDIT_GUTTER bitmap resource. The overridden function can be added in your SECEditView-derived class.

---

Since CreateGutterBrush() is protected and not a virtual function, you will need to add a copy of OnCreate() in your View class as well.

---

Here is a example of how to use a custom defined IDB_CUSTOM_PATTERN bitmap to replace the default bitmap. We are using the SDI sample implementation for this demonstration:

BOOL CSdiView::OnCreate() { if(!MvcViewport::OnCreate()) { TRACE0("MvcViewport::OnCreate failed\n"); return FALSE; } // Set up the Gutter Bitmap CreateGutterBrush(); return TRUE; } void CSdiView::CreateGutterBrush() { if(m_pGutterBrush) { delete m_pGutterBrush; } m_pGutterBrush = new CBrush; // Load the gutter bitmap HANDLE hBitmap = ::LoadImage(AfxFindResourceHandle (MAKEINTRESOURCE(IDB_CUSTOM_PATTERN), RT_BITMAP), MAKEINTRESOURCE(IDB_CUSTOM_PATTERN), IMAGE_BITMAP, 0, 0, LR_DEFAULTCOLOR); // If this ASSERT fires the most common cause is not properly // including the Objective Edit resources into your project. // To do this, open the view menu, and select View->Resource // Includes. In the Read-only symbol directives edit control, // add: #include "seceditres.h" at the bottom. // In the Compile-time directives, add #include "seceditres.rc" // at the bottom. ASSERT (hBitmap != NULL); CBitmap bm; bm.Attach(hBitmap); m_pGutterBrush->CreatePatternBrush(&bm); }

6.5.4 Changing the Background Color of the Gutter Area

The background color for text appearing in the gutter area is not derived from the gutter text font. Instead, it is derived from the background color specified for the gutter area. To customize the gutter background color, override the SECEditViewport::RenderGutter() method.

SECEditViewport::RenderGutter()

Fills the background of the gutter area to the left of the editing window in preparation for drawing any gutter marks. When called by the Objective Edit framework, pDC (see code below) is a pointer to an SECMemDC that is a wrapper for a back buffer DC.

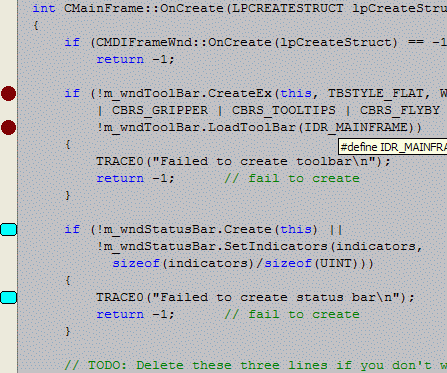

6.5.5 Drawing Custom Breakpoints and Bookmarks

DrawGutter()

Draws the gutter area to the left of the editing window and then calls the DrawMarks() function to draw any marks that may be in the gutter.

/* Draws the gutter area and any gutter marks */ virtual void DrawGutter(CRect rcInvalid) const;

DrawMarks()

Called to draw any items (such as breakpoints) in the gutter. Override it to do custom processing.

Table 5: Arguments for SECEditViewport::DrawMarks() and Related Methods

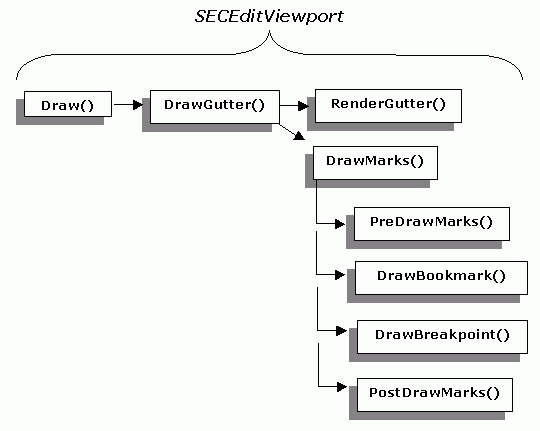

By default, DrawMarks() calls the following functions in this order:

• PreDrawMarks()

• DrawBookmark()

• DrawBreakpoint()

• PostDrawMarks()

  /* Called to draw the items in the gutter */ virtual void DrawMarks(int nLine, CDC* pDC, const CRect& rcMark) const;

PreDrawMarks()

Is called before any of the predefined gutter marks are drawn. Override it to provide custom drawing of marks in the gutter.

/* Called before any items are drawn in the gutter */ virtual void PreDrawMarks(int nLine, CDC* pDC, CRect rcMark) const;

DrawBookmark()

Draws a bookmark in the gutter for lines that have a bookmark. Override it to draw a custom bookmark.

/* Draws a Bookmark in the gutter */ virtual void DrawBookmark(int nLine, CDC* pDC, CRect rcMark) const;

DrawBreakpoint()

Draws a breakpoint in the gutter for lines that have a breakpoint. Override it to draw a custom breakpoint.

/* Draws a Breakpoint in the gutter */ virtual void DrawBreakpoint(int nLine, CDC* pDC, CRect rcMark) const;

PostDrawMarks()

Called after the predefined items in the gutter (such as breakpoints) are drawn. Override it to provide custom drawing of marks in the gutter.

/* Called after the items have been drawn in the gutter */ virtual void PostDrawMarks(int nLine, CDC* pDC, CRect rcMark) const;

6.5.5.1 Implementing Three Breakpoint States

Ordinarily you can toggle the breakpoint and clear it. In some cases you might want a third state—deactivating it.

You can set three states (even more in fact) for a break point. To implement three state breakpoints (no breakpoint, breakpoint set, breakpoint set but not active), use another DataFlag value (other than 16 - 18) to define a new data flag. Once you check the breakpoint status, check both flags. With the combination of two booleans, you can have four states from which to choose.

To place a proper indicator in the gutter on the left side of SECEditView-derived views (where the bookmarks and breakpoints indicators appear), define your own Data Item Flag type (with a value 0-15) and override SECEditViewport::DrawMarks(). For example,

1. Define the bookmark:

   #define ID_ITEMDATA_MYMARK // needs an int value

2. Override DrawMarks():

   void CMyViewport::DrawMarks(int nLine, CDC* pDC, const CRect& rcMark) const { // called before gutter items are drawn PreDrawMarks(nLine, pDC, rcMark); // draws bookmark in gutter DrawBookmark(nLine, pDC, rcMark); //draws breakpoint in the gutter DrawBreakpoint(nLine, pDC, rcMark); DrawMyMark(nLine, pDC, rcMark); // called after gutter items have been drawn PostDrawMarks(nLine, pDC, rcMark); }

3. Add a function implementation for DrawMyMark().

4. From then on, you can add this new mark to any line by calling:

   SECEdit::SetItemDataFlag(int nLine, unsigned int nFlag, BOOL bAdd);

6.5.5.2 Inserting Bookmarks vs. Marking Found Text

6.5.6 Methods Related to the Gutter

Table 6 and Table 7 provide a handy reference for functions that can be used to manipulate the gutter. For additional information about these methods, please refer to the Objective Edit Class Reference.

Table 6: SECEditController Methods Related to the Gutter

Table 7: SECEditViewport Methods Related to the Gutter
