rwsf::ConnectorImp Class Reference

Abstract base class for implementing Agent connectors. More...

#include <rwsf/handlers/ConnectorImp.h>

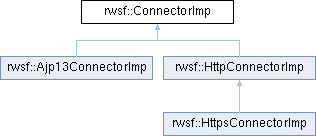

Inheritance diagram for rwsf::ConnectorImp:

Public Member Functions
	ConnectorImp ()
rwsf::MessageInfoHandlerChain	getHandlerChain () const
rwsf::Logger	getLogger ()
std::string	getName () const
virtual void	start ()=0
virtual void	stop ()=0

Protected Member Functions
virtual void	init (const rwsf::Config &config, const rwsf::AgentContext &agent)=0

Related Symbols
(Note that these are not member symbols.)
#define	RWSF_DEFINE_CONNECTOR(NAME)

Detailed Description

ConnectorImp serves as an abstract base class for implementing Agent connectors, which create MessageInfo objects and pass them through a handler chain. This class is used by the Agent internally, and you can also use it to create custom connectors. See the chapter on connectors in the User Guide.

This class defines the body interface for the bridge pattern.

See also

rwsf::Connector

Constructor & Destructor Documentation

ConnectorImp()

rwsf::ConnectorImp::ConnectorImp

(

)

Creates a new connector implementation.

Member Function Documentation

getHandlerChain()

rwsf::MessageInfoHandlerChain rwsf::ConnectorImp::getHandlerChain

(

)

const

Returns the handler chain for this connector. The handler chain is required and can be set only during initialization.

getLogger()

rwsf::Logger rwsf::ConnectorImp::getLogger

(

)

Returns the logger for this connector. Applications should use rwsf::Logger::isValid() on the returned logger to determine validity.

getName()

std::string rwsf::ConnectorImp::getName

(

)

const

Returns the name of this connector, or an empty string if none provided. The name of the connector is optional and can be set only during initialization.

init()

virtual void rwsf::ConnectorImp::init ( const rwsf::Config & config, const rwsf::AgentContext & agent )

protectedpure virtual

Initializes this connector's implementation. If this function is overridden in derived classes, the overriding function must call this function first before doing anything else.

Parameters

config	Configuration properties for initializing this connector.
agent	AgentContext that contains the connector. If an invalid handler chain is specified in rwagent.xml for the connector, throws an rwsf::Exception.

Implemented in rwsf::Ajp13ConnectorImp, and rwsf::HttpConnectorImp.

start()

virtual void rwsf::ConnectorImp::start ( )

pure virtual

Starts this connector. Derived classes must implement this function. The implementation should not block process execution, that is, it should return control immediately to the caller.

Implemented in rwsf::Ajp13ConnectorImp, and rwsf::HttpConnectorImp.

stop()

virtual void rwsf::ConnectorImp::stop ( )

pure virtual

Stops this connector. Derived classes must implement this function. The implementation can block process execution if neccessary, until shutdown is completed.

Implemented in rwsf::Ajp13ConnectorImp, and rwsf::HttpConnectorImp.

Friends And Related Symbol Documentation

RWSF_DEFINE_CONNECTOR

#define RWSF_DEFINE_CONNECTOR ( NAME )

related

Defines a function that returns an instance of NAME. The macro names the function by prefacing NAME with the word "create". The Agent uses the function to construct an instance of the connector implementation. For example, to use a connector for the macro:

RWSF_DEFINE_CONNECTOR(MyConnector)

the connector definition in the main configuration file (usually <installdir>/conf/rwagent.xml) should read:

<rwsf:connector name="MyConnector"
                class="myConnectorLibrary.createMyConnector"
                handlerChain="myChain">
