Creating Orthogonal Dockable Containers
Orthogonal dockable containers are an advanced feature. Use this feature if you want to create docking panes having a nonstandard behavior. For further information, see Using the IlvDockableMainWindow Class where the IlvDockableMainWindow class that implements this feature is described.
The IlvDockableContainer class provides the member function createOrthogonalDockableContainer, which when set to true, modifies the behavior of the addDockingPane member function as follows:
*Creates an internal dockable container which is orthogonal to the main dockable container.
The “create orthogonal dockable container” feature does not apply to this internal container.
*Encapsulates the internal dockable container into a view pane.
*Adds the view pane to the dockable container.
*Adds the docking pane and its handle to the internal dockable container.
If you add a pane to a vertical dockable container when the “create orthogonal dockable container” feature is disabled, you obtain the following:
Create Orthogonal Dockable Container Feature Disabled

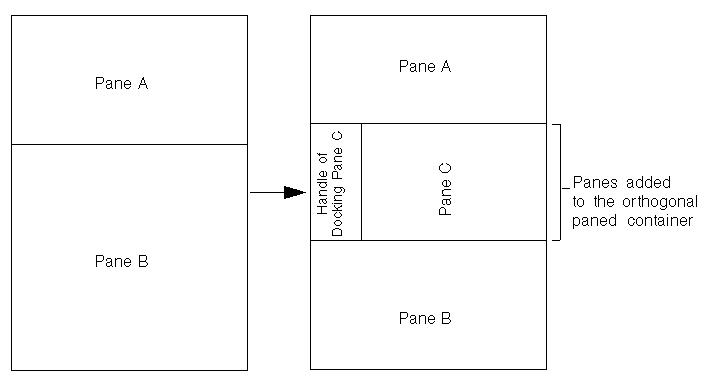

If the “create orthogonal dockable container” feature is enabled, you obtain the following:
Create Orthogonal Dockable Container Feature Enabled

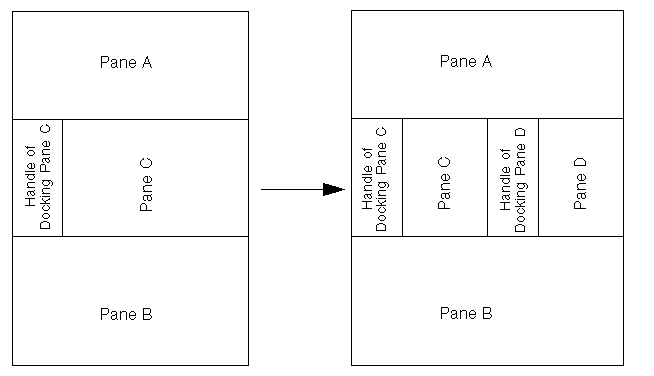

This feature makes it possible to dock other panes to the dockable container of Pane C to get a pane structure similar to the one shown below:
Pane D is Docked into the Dockable Container of Pane C
When the “create orthogonal dockable container” feature is enabled, the dockable container to which the pane is actually added is not the one for which you called the member function addDockingPane. Also, the index of the added pane might have changed. Therefore, we recommend that you retrieve the pane using its name instead of its index inside its container.
