Cylindrical Projections
A cylindrical projection is obtained by wrapping a large, flat plane around the globe to form a cylinder. In the following figure, the cylinder is tangent to the equator. The closer the zone of tangency the less the distortion.

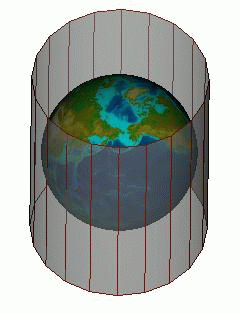

A Cylindrical Projection (1)
The position of the cylinder can be changed. For example, in a transverse cylindrical projection, the cylinder is tangent to a meridian.

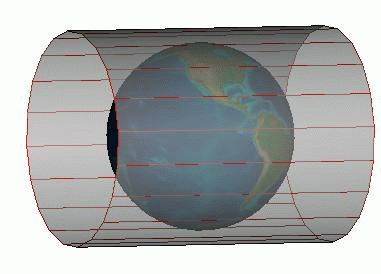

A Cylindrical Projection (2)
