Projection Page
The Projection page lets you define the type of projection to map the data into screen coordinates.
*Cartesian is used for data expressed in Cartesian coordinates (x, y). The data are represented in a standard manner: the abscissa and ordinate scales representing the x- and y-coordinates, respectively, are orthogonal.
Example of a Cartesian Chart
*Polar is used for data expressed in polar coordinates (θρ). The data are represented in a circular way: the θ values are mapped along a circular abscissa scale, while the ρ values are represented along a radial ordinate scale.
Example of a Polar Chart
The Projection page appears as follows:

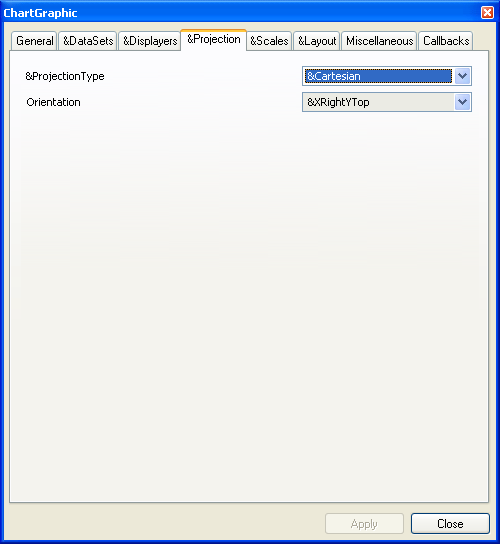

Chart Inspector: Projection Page
Once you have selected the type of the projection to be applied, you can define:
*The orientation of the scales for a Cartesian projection.
*The orientation of the abscissa scale (clockwise or counterclockwise) for a polar projection.
