The architecture of JViews Gantt JSF technology

Presents an overview of the architecture of JViews Gantt JSF technology.

• About support for JViews JSF technology

Describes JViews Web application support based on JavaServer™ Faces (JSF) technology.

• Servlet and component classes

Identifies servlet and component classes for generating the visual representation of the component.

About support for JViews JSF technology

The Web application support based on JavaServer™ Faces (JSF) technology consists of:

• The tag library (a set of JSP™ tags)

• A Java™ API

• An AJAX based JavaScript™ library

The JSP™ tags are used to build JSP pages. Each tag represents a component and has a set of attributes for configuring the component.

Not all the components have a visual representation. For example, an interactor is intended only to be set on a view and has no visual representation.

When a tag is processed by the JSP engine, it is compiled into Java code that is executed to produce the page content. The tag library produces JavaScript objects. Each object can be referenced by JavaScript code and can be modified on the client side without a server round-trip.

See the Release Notes for the Web browsers and versions with which the JViews Gantt JSF components are compatible.

JViews Gantt JSF component set

The JViews Gantt JSF component set includes:

• A Gantt chart view

• A Schedule chart view

• A set of interactors

• A pop-up menu

JViews Charts JSF component set

The JViews Charts JSF component set includes:

• A chart view

• A chart overview

• A chart legend

• A set of interactors

• A pop-up menu

JViews Framework JSF component set

The JViews FrameworkJSF component set includes:

• A view

• An overview

• A pan tool

• A zoom tool

• A set of interactors

Servlet and component classes

JSF components in JViews Gantt use servlet technology to produce the images that are the visual representation of the component on the client side. Dedicated servlet, servlet support, and components are available to help create an application.

Servlet and component classes in JViews Gantt_HTML5

Name	Description
In package ilog.views.gantt.faces.dhtml.servlet. IlvFacesGanttServlet	A dedicated IlvGanttServlet.
In package ilog.views.gantt.faces.dhtml.servlet. ilog.views.gantt.faces.dhtml.servlet. IlvFacesGanttServletSupport	A dedicated IlvGanttServletSupport.
In package ilog.views.gantt.faces.dhtml.component. ilog.views.gantt.faces.dhtml.component. IlvFacesDHTMLGanttChartView	A view component extended to have JavaScript rendering that displays an IlvGanttChart.
In package ilog.views.gantt.faces.dhtml.component. IlvFacesDHTMLScheduleChartView	A view component extended to have JavaScript rendering that displays an IlvScheduleChart.
In package ilog.views.gantt.faces.interactor. IlvFacesRowExpandCollapseInteractor	An interactor that allows a hierarchy node (activity or resource) to be expanded or collapsed.
In package ilog.views.gantt.faces.interactor. IlvFacesSheetScrollInteractor	An interactor that allows you to pan the sheet view.
In package ilog.views.gantt.faces.interactor. IlvFacesTableScrollInteractor	An interactor that allows you to pan the table view.
In package ilog.views.gantt.faces.interactor. IlvFacesRowSelectInteractor	An interactor that allows you to execute an action in the servlet context by clicking the image.
In package ilog.views.gantt.faces.dhtml.interactor. IlvFacesNodeSelectInteractor	An interactor that allows you to execute an action in the JSF context by clicking the image.
In package ilog.views.faces.component. IlvFacesContextualMenu	A contextual pop-up menu.
In package ilog.views.gantt.faces.dhtml.interactor. IlvFacesGanttSelectInteractor	An interactor that allows you to select activities, reservations, and constraints and move activities and reservations in the JSF context.
In package ilog.views.gantt.faces.dhtml.component. IlvFacesGanttSelectionManager	A component that allows you to configure the management of the selection on an IlvFacesDHTMLGanttChartView or IlvFacesDHTMLScheduleChartView component.

The associations between these classes are shown graphically in the following figures.

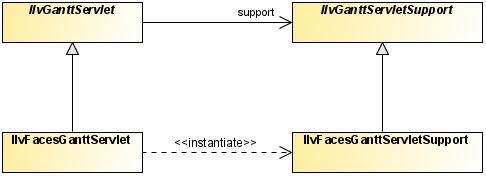

The following figure shows the servlet classes and their supporting classes.

Servlet classes

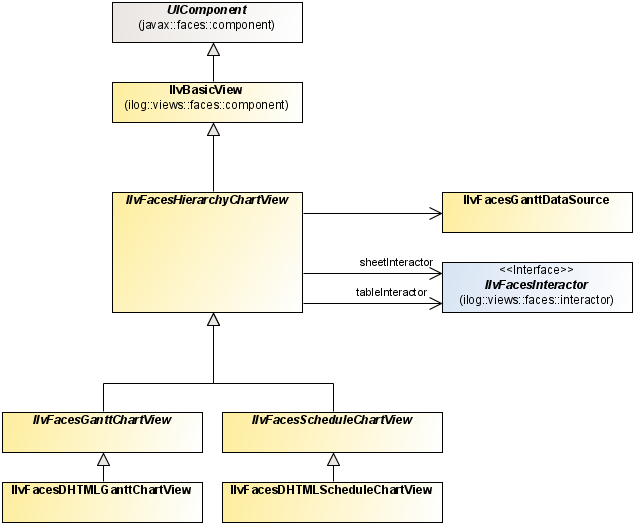

The following figure shows the Gantt chart view components and their associated classes.

Base UI component classes

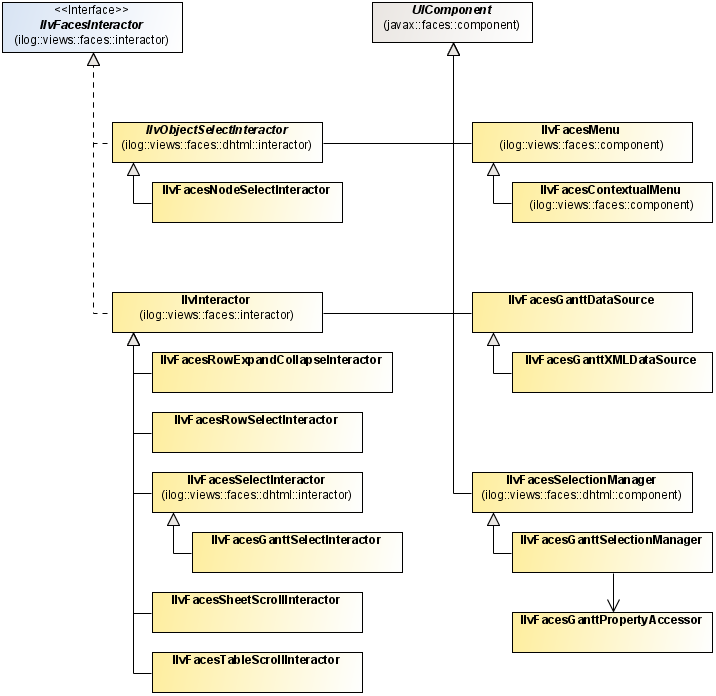

The following figure shows the interactor, pop-up menu, and data source components.

Interactor, pop-up menu, and data source components

Servlet and component classes in JViews Charts

Name	Description
ilog.views.chart.faces.servlet. IlvFacesChart	A dedicated IlvChart component.
ilog.views.chart.faces.servlet. IlvFacesChartLegend	A dedicated IlvLegend component.
ilog.views.chart.faces.servlet. IlvFacesChartOverview	A dedicated chart overview that extends IlvChart.
ilog.views.chart.faces.servlet. IlvFacesChartServlet	A dedicated IlvChartServlet.
ilog.views.chart.faces.servlet. IlvFacesChartServletSupport	A dedicated IlvChartServletSupport.
ilog.views.chart.faces.dhtml.component. IlvChartDHTMLView	A view component, extended to have JavaScript rendering that displays an IlvFacesChart.
ilog.views.chart.faces.dhtml.component.	An overview component, extended to have JavaScript rendering that displays an IlvFacesChartOverview.
ilog.views.chart.faces.dhtml.component. IlvChartDHTMLLegend	A legend component, extended to have JavaScript rendering that displays an IlvFacesChartLegend.
ilog.views.chart.faces.interactor. IlvChartPanInteractor	An interactor that allows you to pan the view.
ilog.views.chart.faces.interactor. IlvChartPickInteractor	An interactor that allows you to execute an action in the servlet context by clicking the image.
i log.views.chart.faces.interactor. IlvChartZoomInteractor	An interactor that allows you to zoom the view.
ilog.views.faces.component. IlvFacesContextualMenu	A contextual pop-up menu.

The associations between these classes are shown graphically in the following figures.

JSF view components

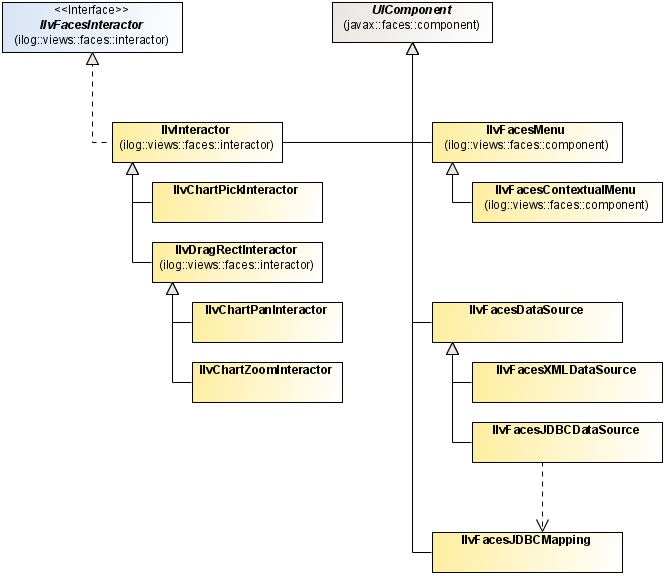

JSF interactors and other components

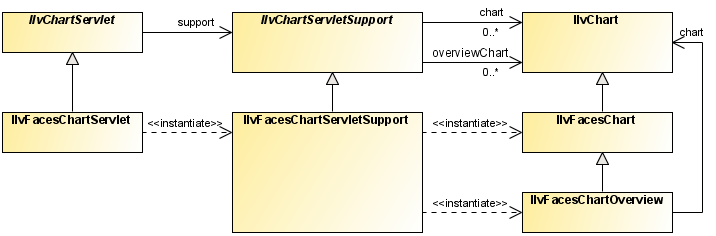

JSF servlet

Servlet and component classes in JViews Framework

Name	Description
IlvFacesManagerServlet	A dedicated IlvManagerServlet.
IlvFacesManagerServletSupport	A dedicated IlvManagerServletSupport.
IlvFacesDHTMLView	A view component extended to have JavaScript rendering.
IlvFacesDHTMLOverview	An overview component.
ilog.views.faces.component. IlvFacesZoomTool	A tool that allows you to choose a view zoom level.
ilog.views.faces.component. IlvFacesPanTool	A tool that allows you to pan in each direction and to fit the view.
ilog.views.faces.interactor. IlvFacesZoomInteractor	An interactor that allows you to zoom the view.
ilog.views.faces.interactor. IlvFacesPanInteractor	An interactor that allows you to pan the view.
ilog.views.faces.interactor. IlvFacesMapInteractor	An interactor that allows you to execute an action in the servlet context by clicking the image.
ilog.views.faces.interactor. IlvFacesMapRectInteractor	An interactor that allows you to execute an action in the servlet context by dragging a rectangle on the image.
ilog.views.faces.dhtml.interactor. IlvFacesObjectSelectInteractor	An interactor that allows you to execute an action in the JSF context by clicking the image.
ilog.views.faces.dhtml.interactor. IlvFacesObjectSelectRectInteractor	An interactor that allows you to execute an action in the JSF context by dragging a rectangle on the image.
ilog.views.faces.component. IlvFacesContextualMenu	A contextual pop-up menu.
