Concepts for nested layouts

JViews Diagrammer supports nested graphs, that is, it can render graphs containing nodes that are graphs.

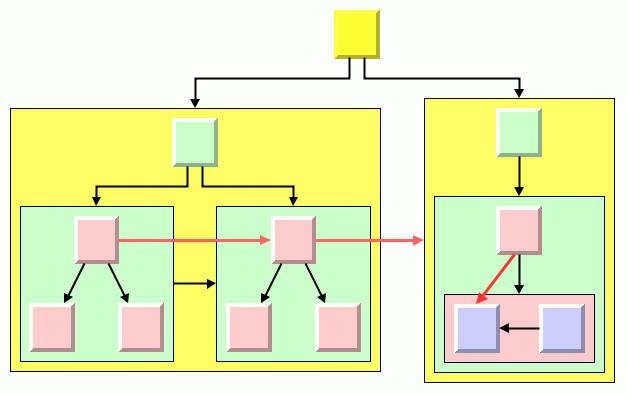

The following figure shows an example of a nested graph.

Example of a nested graph

A graph that is a node in another graph is called a subgraph. Links that connect nodes of different subgraphs are called subgraph links. The red links in the figure are intergraph links.
