Integrating a symbol into JViews Dashboard Editor

A Dashboard diagram is a graphical component made up of JViews symbols arranged on an editable background. It is used to graphically represent business or system critical information. The JViews Dashboard Editor is a point-and-click editor that allows you to create and edit dashboards.

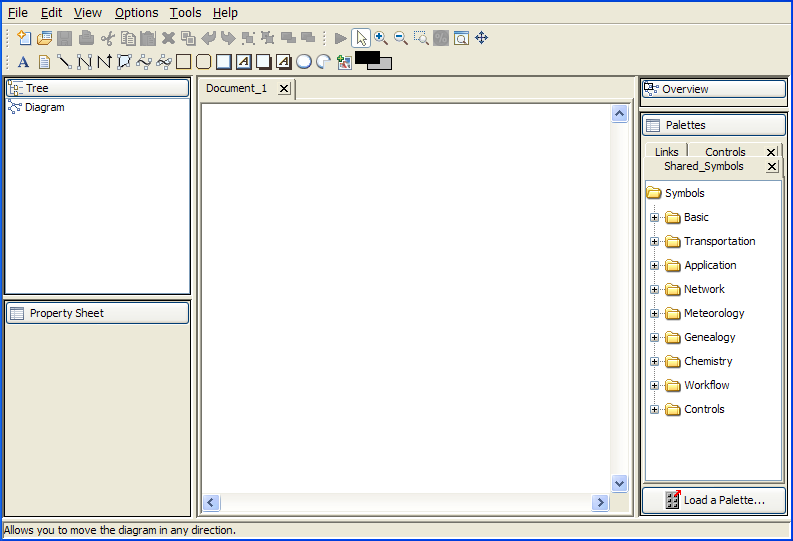

The JViews Diagrammer Dashboard Editor

Dashboard functionality is implemented in the ilog.views.dashboard package. It is used to:

• Load and animate a dashboard programmatically.

• Create your own graphical Dashboard Editor GUI application.

For more information on using the JViews Diagrammer Dashboard Editor and programming with the ilog.views.dashboard package, see Using the Dashboard Editor.
