Printing the diagram from an IlvDiagrammerApplication instance

When you use the IlvDiagrammerApplication class, you automatically have the same printing facilities for your diagram component(s) as you have in the Designer:

• Page setup (provided by the method pageSetup )

• Print a specified area (provided by the methods setPrintArea, clearPrintArea )

• Print preview (provided by the method printPreview )

• Printing one, all or selected pages (provided by the method print )

• Print to an image file (provided by the method printToBitmap ; .jpg or .png format)

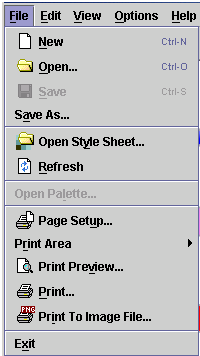

These operations are available from the File menu in the application, see the following figure.

To print the diagram to the default printer from the application:

• Click the Print button in the Print Preview window or in the main toolbar,

-- or --

• Choose File>Print.
