Getting started with the JViews JavaScript Web application

The XML Grapher example shows how to build the server side and also how to create a JavaScript client.

The XML Grapher example is available at <installdir> /jviews-framework/samples/xmlgrapher.

This example allows you to display a network of interconnected cities on top of the map in a Web application context.

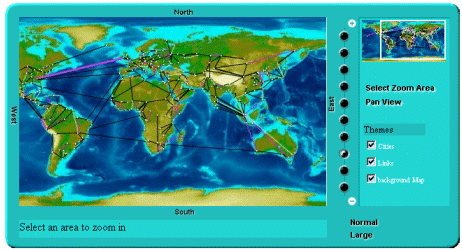

The XML Grapher example

The XML Grapher example is composed of the following pieces:

  • A JViews component that can read an XML file describing a set of interconnected cities and display them on top of a map as shown in the picture above.

This component is located in the following files:

<installdir> /jviews-framework/samples/xmlgrapher/src/xmlgrapher/XmlGrapher.java

<installdir> /jviews-framework/samples/xmlgrapher/src/xmlgrapher/GrapherNode.java

  • Some example XML files for the component, located in <installdir>/jviews-framework/samples/xmlgrapher/webpages/data

  • A servlet that can produce JPEG images from the component described above.

The servlet is located in:

<installdir> /jviews-framework/samples/xmlgrapher/src/xmlgrapher/servlet/XmlGrapherServlet.java
