Regular Grid

A Regular Grid is a hierarchical grid with a look-and-feel similar to that of any other grid derived from CGXGridCore.

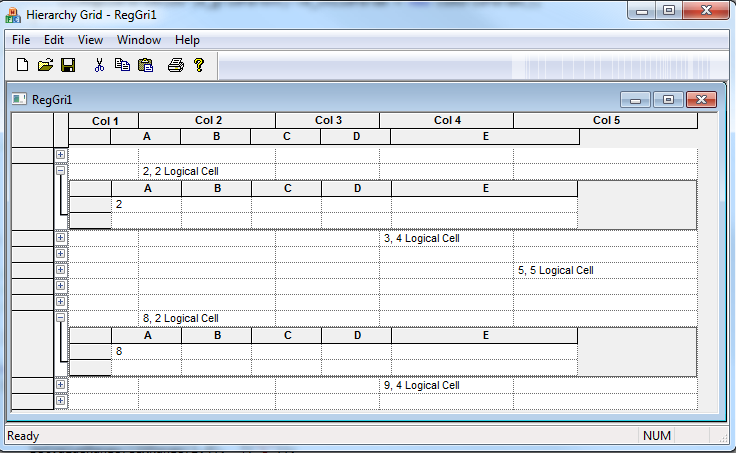

Regular Hierarchical Grid

To enable this functionality, you need to derive your window/view class from the CGXRegularGrid template. See Hierarchy Grid Class Diagram for more information.

For example:

Besides providing all the hierarchical grid interfaces, the regular grid also provides the following interfaces:

• Row/Column Count
• SetLogRowCount()/GetLogRowCount()
• SetLogColCount()/GetLogColCount()
• Set and get the logical row/column count

In all functions defined in CGXGridCore, the row/column parameters denote the absolute coordinates. You need to use the transformation APIs in Hierarchy Grid to convert them to logical coordinates and vice-versa.
