Chart widget axis label formatting

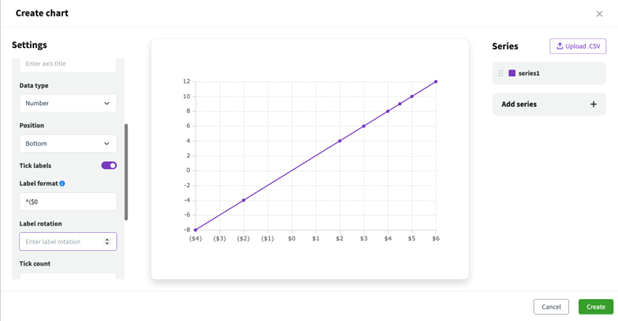

The Widget Editor supports formatting codes to define the format of axis labels. The code-entry field allows custom formatting codes.

See more information about the available label formatting codes and how to apply them at the AG Charts Axis Labels page here: https://charts.ag-grid.com/vue/axes-labels/#number-formatting.

For number axes, a format string can be provided, which formats the numbers for display as axis labels. The format string may contain the following directives:

[[fill]align][sign][#][0][width][grouping_option][.precision][type]

Where:

• fill - Can be any character.

• align:

  • > - Forces the field to be right-aligned within the available space (default).

  • < - Forces the field to be left-aligned within the available space.

  • ^ - Forces the field to be centered within the available space.

  • = - Like >, but with any sign and symbol to the left of any padding.

• sign:

  • - - Nothing for zero or positive and a minus sign for negative (default).

  • + - A plus sign for zero or positive and a minus sign for negative.

  • ( - Nothing for zero or positive and parentheses for negative.

  • <empty space> - A space for zero or positive and a minus sign for negative.

• symbol:

  • $ - Apply the $ currency symbol

  • # - For binary, octal, or hexadecimal notation, prefix by 0b, 0o, or 0x, respectively.

• zero - The 0 option enables zero-padding. Implicitly sets fill to 0 and align to =.

• width - The width defines the minimum field width. If not specified, then the width will be determined by the content.

• comma - The comma , option enables the use of a group separator, such as a comma for thousands.

• precision - Depending on the type, the precision either indicates the number of digits that follow the decimal point (types f and %), or the number of significant digits (types ​, e, g, r, s and p). If the precision is not specified, it defaults to 6 for all types except ​ (none), which defaults to 12. Precision is ignored for integer formats (types b, o, d, x, X and c).

• trim - The ~ option trims insignificant trailing zeros across all format types. This is most commonly used in conjunction with types r, e, s and %.

• type - Determines how the data should be presented:

  • % - Multiply by 100, and then decimal notation with a percent sign.

  • b - Binary notation, rounded to integer.

  • c - Converts the integer to the corresponding unicode character before printing.

  • d - Decimal notation, rounded to integer.

  • e - Exponent notation.

  • f - Fixed point notation.

  • g - Either decimal or exponent notation, rounded to significant digits.

  • o - Octal notation, rounded to integer.

  • p - Multiply by 100, round to significant digits, and then decimal notation with a percent sign.

  • r - Decimal notation, rounded to significant digits.

  • s - Decimal notation with a SI prefix, rounded to significant digits.

  • x - Hexadecimal notation, using lower-case letters, rounded to integer.

  • X - Hexadecimal notation, using upper-case letters, rounded to integer.
