VersIC Configuration file (versic.conf)

VersIC is highly configurable through the versic.conf file. versic.conf is extensively commented and administrators are encouraged to familiarize themselves with the options available there.

versic.conf is written in SKILL syntax and is read with the SKILL 'load' command, so it may include any valid SKILL code

Site versic.conf

The search order for the site wide configuration file is:

  1. $VSC_SITE_PREFS - points directly at the site versic.conf
  2. $VSC_CONFIG_DIR/versic.conf - load versic.conf from the VersIC configuration directory
  3. $VSC_INSTALL_DIR/config/versic.conf - load versic.conf from the VersIC installation

VersIC will load the first matching versic.conf, or generate an error if no versic.conf file is found.

Project versic.conf

Available but is disabled by default. See below for details.

Local versic.conf

VersIC will then load a local versic.conf file, if it exists in one of the following locations:

  1. $VSC_USER_PREFS - points directly at the user versic.conf
  2. ./versic.conf - versic.conf in the working directory
  3. $VSC_USER_DIR/versic.conf - e.g. ~/.methodics/versic/versic.conf

Note: see below for how to disable loading of the local versic.conf

More on $VSC_CONFIG_DIR for the site versic.conf

To ensure that a new VersIC install doesn't override any local changes to the versic.conf file we recommend users set $VSC_CONFIG_DIR in their VersIC module file, to point at the site location of versic.conf. This dir is typically at the same location as the VersIC installation.

As an example:

Unix> ls -las
total 20
4 drwxr-xr-x  5 design 4096 Jun  6  2008 ./
4 drwxr-xr-x  6 design 4096 Mar 13 16:23 ../
0 lrwxrwxrwx  1 design   14 Jun  1 15:19 current -> versic_0.9.299/
4 drwxr-xr-x  7 design 4096 Jun  6  2008 versic_0.9.260/
4 drwxr-xr-x  7 design 4096 Jun  6  2008 versic_0.9.299/
4 drwxr-xr-x  2 design 4096 Jun  6  2008 vsc_conf/

Unix> ls versic_config/
total 36
drwxr-xr-x  2 sbutler design  4096 Jun  6  2008 ./
drwxr-xr-x  5 sbutler design  4096 Jun  6  2008 ../
-rw-r--r--  1 sbutler design  2546 Jun  6  2008 versic.access
-rw-r--r--  1 sbutler design 22871 Jun  6  2008 versic.conf

Unix> pwd
   /tools/versic/

Unix> printenv VSC_INSTALL_DIR
   /tools/versic/current

Unix> printenv VSC_CONFIG_DIR
   /tools/versic/versic_config

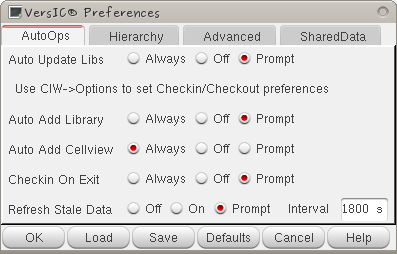

Saving versic.conf from the Preferences form


Note that when a user makes changes in the Preferences form those settings are active for the duration of that Cadence only session. The modified versic.conf must be saved to disk to ensure the same configuration is active in the next Cadence session. Users may make local changes form the VersIC Preferences form and save the modified file locally. By default versic.conf will be saved to ~/.methodics/versic/versic.conf however ifVersIC finds a version in the local working dir ./versic.conf the modified file will be saved there instead.

Disable loading of a local versic.conf

There are situations where the VersIC administrator needs to enforce a certain methodology and ensure all users have the same VersIC configuration. To disable loading of local versic.conf files, set VSC_DISABLE_USER_PREFS = t in the site versic.conf file.

Project specific configuration

To load project-specific VersIC configuration settings, set VSC_PROJECT_CONF and uncomment the following lines at the end of the site versic.conf:

;;; when( vscGlobal('VSC_PROJECT_CONF) && isFile(VSC_PROJECT_CONF)
;;;     loadi(VSC_PROJECT_CONF)
;;; )

Note: take care not to include these same lines in the project versic.conf
