Using permissions

Permissions can be set on IPLM Web, PiCLI, or the Perforce IPLM API, and can be set per object, or by IP Hierarchy.

Setting IP permissions on IPLM Web

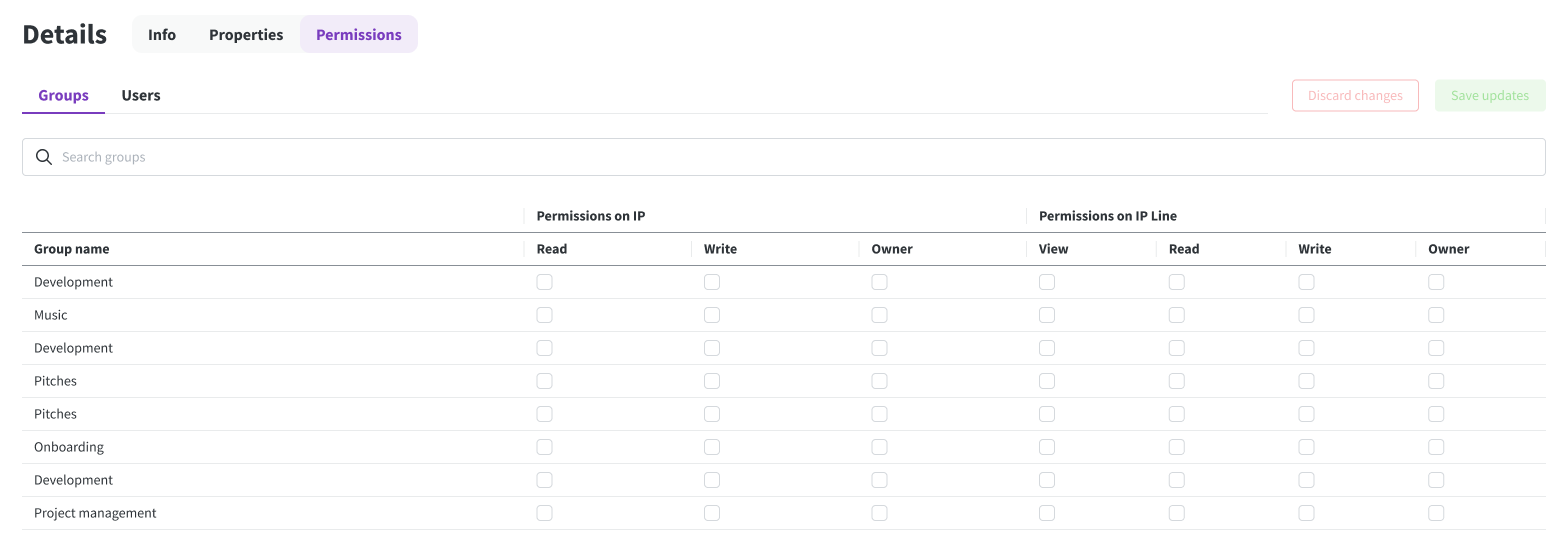

In an IP, select the Permissions tab. There is a selector that allows you to toggle between Users and Groups.

Once configured, select Save.

Command line

Permissions are managed on IPLM CLI using the 'pi perm' commands:

pi perm commands

> pi perm -h
Usage: pi perm [-h] SUBCOMMAND ...

Description: Commands related to Permissions. These subcommands are used to
add, delete, list, and set Permissions on Libraries, IPs, and Lines.

Optional arguments:
  -h, --help            Show this help message and exit

Available sub-commands:
  SUBCOMMAND
    add                 Add new Permissions, existing ones are unchanged.
    delete (del, remove, rm)
                        Delete Permissions from Libraries, IPs, and Lines.
    list (ls)           List Permissions of Libraries, IPs, and Lines.
    set                 Set new Permissions, existing ones are removed.

pi perm add versus pi perm set

The 'pi perm add' and 'pi perm set' commands are equivalent with the difference that 'pi perm add' will leave any existing permissions not covered by the permission expression used in the command as they were. 'pi perm set' removes any other permissions associated with the targeted user or group and applies the new permissions, which are the only permissions set on the object for the targeted user or group.

Command	Description
pi perm add	New permissions set on the object Existing permissions left as is
pi perm set	New permissions for the targeted user or group are set on the object Existing permissions for the targeted user or group are removed

pi perm set Command

> pi perm set -h
Usage: pi perm set [-h] [--all-ip] [--all-lines] [--tree]
                   permissions [permissions ...] identifier [identifier ...]

Description: Set Permissions on Libraries, IP and Lines. This command causes
any Permissions already set on the Libraries, IP and Lines objects to be
replaced by the specified Permissions. Any Permissions previously set will be
lost.

Positional arguments:
  permissions  Each access specifier is of the form <type>:<who>:<perm> where
               <type> is either u or g, <who> is the name of the user or
               group, and <perm> is any combination of o, w, and either r or v
               (but not both). View perms (v) can only be set on IP Lines,
               if set on an IP the view perm will propagate to the default
               TRUNK line and read (r) permission will be set on the IP.
  identifier   Libraries, IP and/or Lines to set the Permissions on. Libraries
               are specified as <library_name>. where the period (.) suffix is
               required, IP are specified as <library_name>.<ip_name> and
               Lines are specified as <library_name>.<ip_name>@.<line_name>

Optional arguments:
  --all-ip     For a library argument, set the Permission on all IPs in that
               Library. For IP and Line arguments, this option is ignored.
               Perms set on an IP will  propagate to the default TRUNK line.
  --all-lines  For a Library argument, set the Permissions on all Lines of every
               IP in that Library. For an IP argument, add the Permissions to all
               Lines of that IP. For Line arguments, this option is ignored.
  --tree       For a Line argument, set the Permissions on the Lines, IPs, and
               Libraries of all IPV in the resource hierarchy of the latest IP
               Version on the Line. For an IP argument, this option uses the
               resource hierarchy of the latest Version of the IP on the IP's
               default line. For Library arguments, this option is an error. If
               the permissions field contains view permissions, affected lines will
               have view permissions set, while affected IPs and Libraries will have
               read permissions set.
  -h, --help   Show this help message and exit.

pi perm add Command

> pi perm add -h
Usage: pi perm add [-h] [--all-ip] [--all-lines] [--tree]
                   permissions [permissions ...] identifier [identifier ...]

Description: Add new Permissions, existing ones are unchanged.

Positional arguments:
  permissions  Each access specifier is of the form <type>:<who>:<perm> where
               <type> is either u or g, <who> is the name of a user or group,
               and <perm> is any combination of o, w, and either r or v (but
               not both). View perms (v) can only be added to IP Lines, if
               added to an IP the view perm will propagate to the default
               TRUNK line and read (r) permission will be added to the IP.
  identifier   Library, IP and/or Line to add the Permissions to. Libraries
               are specified as <library_name>. where the period (.) suffix is
               required. IPs are specified as <library_name>.<ip_name> and
               Lines are specified as <library_name>.<ip_name>@.<line_name>

Optional arguments:
  --all-ip     For a Library argument, add the Permissions to all IPs in that
               Library. For IP and Line arguments, this option is ignored.
               Perms added to an IP will propagate to the default TRUNK line.
  --all-lines  For a Library argument, add the Permissions to all Lines of
               every IP in that Library. For an IP argument, add the
               Permissions to all Lines of that IP. For Line arguments, this
               option is ignored.
  --tree       For a Line argument, add the Permissions to the Lines, IPs, and
               Libraries of all IPV in the resource hierarchy of the latest IP
               Version on the Line. For an IP argument, this option uses the
               resource hierarchy of the latest Version of the IP on the IP's
               default line. For Library arguments, this option is an error. If
               the permissions field contains view permissions, affected lines
               will have view permissions added, while affected IPs and Libraries
               will have read permissions added.
  -h, --help   Show this help message and exit.

Command Option	Description
--all-ip	Library identifier: add or set the specified permissions on all IPs in the Library. IP Identifier: no effect Line Identifier: no effect
--all-lines	Library Identifier: add or set the specified permissions on all Lines of all IPs in the Library IP Identifier: add or set the specified permissions on all Lines of the specified IP Line Identifier: no effect
--tree	Library Identifier: error IP Identifier: add or set the specified permissions to the Lines, IPs, and Libraries of all IPVs in the resource hierarchy of the latest version of the IP on line @.TRUNK Line Identifier: add or set the specified permissions to the Lines, IPs, and Libraries of all IPVS in the resource hierarchy of the latest version of the IP on the specified line

Deleting permissions

Use pi perm delete to remove permissions from Perforce IPLM objects.

pi perm delete Command

> pi perm del -h
Usage: pi perm delete [-h] [--all-ip] [--all-lines] [--tree]
                      permissions [permissions ...] identifier
                      [identifier ...]

Description: Delete Permissions from Libraries, IPs, and Lines.

Positional arguments:
  permissions  Each access specifier is of the form <type>:<who>:<perm> where
               <type> is either u or g, <who> is the name of a user or group,
               and <perm> is any combination of o, w, and either r or v (but
               not both). View perms (v) can only be attached to IP Lines.
  identifier   Library, IP and/or Line to delete the Permissions from.
               Libraries are specified as <library_name>. where the period (.)
               suffix is required, IPs are specified as
               <library_name>.<ip_name> and Lines are specified as
               <library_name>.<ip_name>@.<line_name>

Optional arguments:
  --all-ip     For a Library argument, delete the Permissions from all IPs in
               that Library. For IP and Line arguments, this option will be
               ignored.
  --all-lines  For a Library argument, delete the Permissions from all Lines
               of every IP in that Library. For an IP argument, delete the
               Permissions from all Lines of that IP. For Line arguments, this
               option will be ignored.
  --tree       For a Line argument, delete the Permissions from the Lines,
               IPs, and Libraries of all IPV in the resource hierarchy of the
               latest IP Version on the Line. For an IP argument, this option
               uses the resource hierarchy of the latest Version of the IP on
               the IP's default line. For Library arguments this option is an
               error. A request to delete either view or read permissions will
               delete both read permissions (all affected objects, including
               lines) and view permissions (lines with view permissions)
  -h, --help   Show this help message and exit.

Command Option	Description
--all-ip	Library identifier: delete the specified permissions on all IPs in the Library. IP Identifier: no effect Line Identifier: no effect
--all-lines	Library Identifier: delete the specified permissions on all Lines of all IPs in the Library IP Identifier: delete the specified permissions on all Lines of the specified IP Line Identifier: no effect
--tree	Library Identifier: error IP Identifier: delete the specified permissions to the Lines, IPs, and Libraries of all IPVs in the resource hierarchy of the latest version of the IP on line @.TRUNK Line Identifier: delete the specified permissions to the Lines, IPs, and Libraries of all IPVS in the resource hierarchy of the latest version of the IP on the specified line

Listing permissions

The 'pi perm list' command is used to list permissions. Providing a permission specification to the permission list command will filter the output by the contents of the permission specification.

pi perm list Command

> pi perm ls -h
Usage: pi perm list [-h] [--all-ip] [--all-lines] [--tree] [--format {json}]
                    [permissions [permissions ...]]
                    [identifier [identifier ...]]

Description: List Permissions of Libraries, IPs, and Lines.

Positional arguments:
  permissions      Each permission filter is of the form
                   [<type>]:[<who>]:[<perm>] where <type> is either u or g,
                   <who> is the name of a user or group, and <perm> is any
                   combination of o, w, and either r or v (but not both).
                   View perms (v) can only be attached to IP Lines. Omitting
                   <type>, <who>, or <perm> from a filter implies all.
  identifier       Library, IP and/or Line to list the Permissions of.

Optional arguments:
  --all-ip         For a Library argument, list the Permissions of all IPs in
                   that Library. For IP and Line arguments, this option will be
                   ignored.
  --all-lines      For a Library argument, list the Permissions of all Lines
                   of every IP in that Library. For an IP argument, list
                   the Permissions of all the Lines of that IP. For Line
                   arguments, this option will be ignored.
  --format {json}  Return the results using the specified data structure.
                   Default format will display a table.
  --tree           For a Line argument, list the Permissions on the Lines,
                   IPs, and Libraries of all IPV in the resource hierarchy of
                   the latest IP Version on the Line. For an IP argument, this
                   option uses the resource hierarchy of the latest Version of
                   the IP on the IP's default line. For Library arguments this
                   option is an error. If the permissions field contains view
                   permissions, lines will display their view permission, while
                   IPs and Libraries will display their corresponding read
                   permissions.
  -h, --help       Show this help message and exit.

Command Option	Description
--all-ip	Library identifier: list the specified permissions on all IPs in the Library. IP Identifier: no effect Line Identifier: no effect
--all-lines	Library Identifier: list the specified permissions on all Lines of all IPs in the Library IP Identifier: list the specified permissions on all Lines of the specified IP Line Identifier: no effect
--format json	return results in json format, default is table format
--tree	Library Identifier: error IP Identifier: lines the specified permissions to the Lines, IPs, and Libraries of all IPVs in the resource hierarchy of the latest version of the IP on line @.TRUNK Line Identifier: list the specified permissions to the Lines, IPs, and Libraries of all IPVS in the resource hierarchy of the latest version of the IP on the specified line

Example permission commands

List all permissions for a specific user:

Listing All Permissions for a Specific User

> pi perm list u:ada:
┌──────────────────────────────┬───────┬───────┬───────┬───────┐
│                              │ OWNER │ WRITE │ READ  │ VIEW  │
╞══════════════════════════════╪═══════╪═══════╪═══════╪═══════╡
│ ARM.                         │       │       │ u:ada │       │
│ ARM.cortex2                  │       │ u:ada │ u:ada │       │
│ ARM.cortex2@.TRUNK           │       │ u:ada │ u:ada │       │
│ Data-Converter.              │       │       │ u:ada │       │
│ Data-Converter.sd_adc        │ u:ada │ u:ada │ u:ada │       │
│ Data-Converter.sd_adc@.TRUNK │ u:ada │ u:ada │ u:ada │       │
│ Mem.                         │       │       │ u:ada │       │
│ Mem.nand_flash               │       │ u:ada │ u:ada │       │
│ Mem.nand_flash@.TRUNK        │       │ u:ada │ u:ada │       │
│ Mem.nor_flash                │       │ u:ada │ u:ada │       │
│ Mem.nor_flash@.TRUNK         │       │ u:ada │ u:ada │       │
│ PDK.                         │       │       │ u:ada │       │
│ PDK.MS90G_LP                 │       │ u:ada │ u:ada │       │
│ PDK.MS90G_LP@.TRUNK          │       │ u:ada │       │ u:ada │
│ PLL.                         │       │       │ u:ada │       │
│ PLL.cyclone_pll              │ u:ada │ u:ada │ u:ada │       │
│ PLL.cyclone_pll@.TRUNK       │ u:ada │ u:ada │ u:ada │       │
│ PLL.tms_pll                  │ u:ada │ u:ada │ u:ada │       │
│ PLL.tms_pll@.TRUNK           │ u:ada │ u:ada │ u:ada │       │
│ tutorial.                    │       │       │ u:ada │       │
│ tutorial.tutorial            │ u:ada │ u:ada │ u:ada │       │
│ tutorial.tutorial@.TRUNK     │ u:ada │ u:ada │ u:ada │       │
│ tutorial.verif_config        │ u:ada │ u:ada │ u:ada │       │
│ tutorial.verif_config@.TRUNK │ u:ada │ u:ada │ u:ada │       │
└──────────────────────────────┴───────┴───────┴───────┴───────┘

One user or group is listed per output line of the table format, and lines are sorted alphanumerically by Library, IP, Line, Group, then User.

Set read and write permissions for a user on a line:

Setting Read and Write permissions for a user on a Line

> pi perm set u:ada:wr tutorial.padring@.L1
> pi perm list tutorial.padring@.L1
┌──────────────────────┬───────┬───────┬───────┬───────┐
│                      │ OWNER │ WRITE │ READ  │ VIEW  │
╞══════════════════════╪═══════╪═══════╪═══════╪═══════╡
│ tutorial.padring@.L1 │       │ u:ada │ u:ada │       │
└──────────────────────┴───────┴───────┴───────┘───────┘

Set read and write permissions for a group on a line:

Setting Read and Write permissions for a group on a Line

> pi perm set g:analog:wr tutorial.padring@.L1
> pi perm list tutorial.padring@.L1
┌──────────────────────┬───────┬──────────┬──────────┬───────┐
│                      │ OWNER │ WRITE    │ READ     │ VIEW  │
╞══════════════════════╪═══════╪══════════╪══════════╪═══════╡
│ tutorial.padring@.L1 │       │ g:analog │ g:analog │       │
│                      │       │ u:ada    │ u:ada    │       │
└──────────────────────┴───────┴──────────┴──────────┴───────┘
